NSN 5990-01-319-5667 C1619110A, C1619-110A, VOE352542

Product Details | SHAFT ANGLE TO DIGITAL ENCODER

5990-01-319-5667 An electromechanical device, the electrical output of which represents in digital form a mathematical function of the angular position of the input shaft. See also CONVERTER, ANALOGUE TO DIGITAL.

Part Alternates: C1619110A, C1619-110A, VOE352542, VOE-35-2542, 1619110A, 1619-110A, 5990-01-319-5667, 01-319-5667, 5990013195667, 013195667

Electrical and Electronic Equipment Components | Synchros and Resolvers

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	10 MAY 1990	01-319-5667	33743 ( ENCODER, SHAFT ANGLE TO DIGITAL )

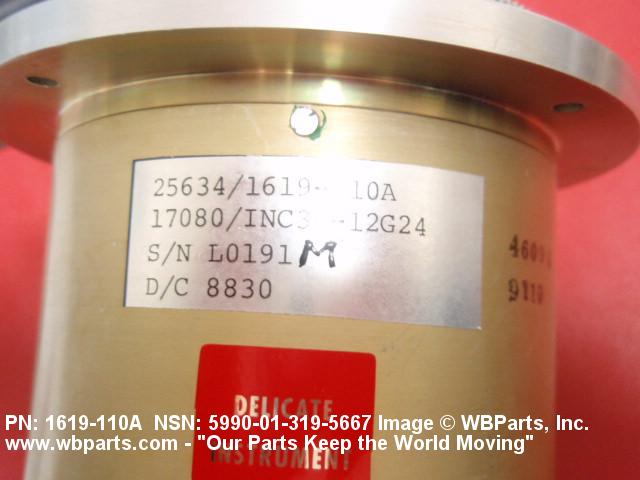

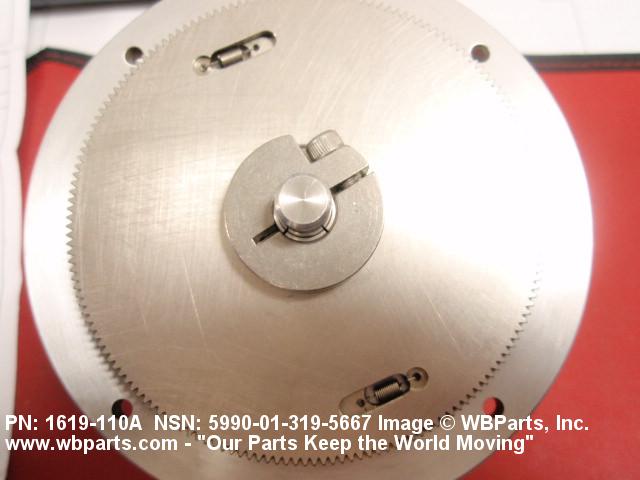

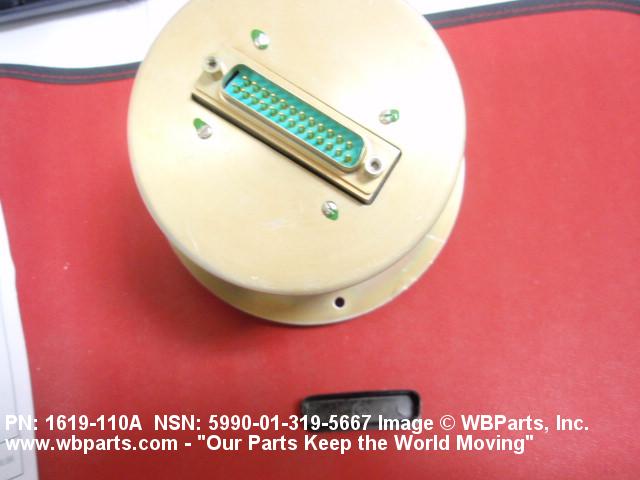

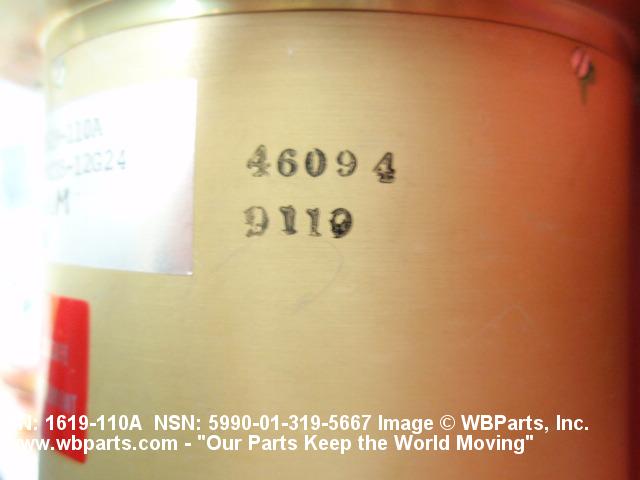

Drawings & Photos | NSN 5990-01-319-5667

Part Number	Request Date	QTY	Origin
5990-01-319-5667	2014-12-351	2	US
C1619110A	2012-01-06	2	IN
5990-01-319-5667	2011-12-339	2	IN
C1619110A	2011-10-304	2	IN
5990-01-319-5667	2011-03-80	3	US
C1619110A	2010-11-323	3	India
C1619110A	2010-11-321	3	India
C1619110A	2010-10-299	3	France
C1619110A	2010-10-299	3	France
5990-01-319-5667	2010-08-243	3	IN
5990-01-319-5667	2010-07-208	3	IN
5990-01-319-5667	2010-04-110	40	US
5990-01-319-5667	2010-01-06	2	India
5990-01-319-5667	2006-10-291	5	India

Cross Reference | NSN 5990-01-319-5667

Part Number	Cage Code	Manufacturer
1619-110A	25634	KEVLIN CORPORATION DBA COBHAM SENSOR SYSTEMS
1619-110A	66544	CONTINENTAL MICROWAVE AND TOOL CO., INC.
C1619-110A	97942	NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN SYSTEMS
VOE-35-2542	04454	SENSOR SYSTEMS, L.L.C.
VOE-35-2542	10112	GENERAL DYNAMICS GLOBAL IMAGING TECHNOLOGIES, INC.

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5990-01-319-5667

Compare

Related Products | NSN 5990-01-319-5667

5990-01-320-1412, 5990-01-320-7460, 5990-01-320-9817, 5990-01-321-2997, 5990-01-322-0581

Technical Data | NSN 5990-01-319-5667

Characteristic	Specifications
GENERAL CHARACTERISTICS ITEM DESCRIPTION	AZIMUTH PULSE GENERATOR
III END ITEM IDENTIFICATION	ASR9
MANUFACTURERS CODE	97942
DESIGN CONTROL REFERENCE	C1619-110A

Restrictions/Controls & Freight Information | NSN 5990-01-319-5667

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	B	Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.)
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	N	The item does not have a critical feature such as tolerance, fit restrictions or application. Nuclear hardness properties have not been determined (not valid for input).

Category	Code	Description
No Freight Information

Management | NSN 5990-01-319-5667

Air Force

Category	Code	Description
Materiel Management Aggregation Code	HK	SX:NATIONAL AIRSPACE SYSTEM PLAN
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Source of Supply	FHZ	Oklahoma City Air Logistics Center Tinker AFB, OK 73145-5989
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	T	AF Recoverable Assembly Management System (AFRAMS)
Acquisition Advice Codes	C	SERVICE/AGENCY-MANAGED (Service/Agency use only.) # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by individual Services supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
