NSN 5990-00-120-1191 101P304D27A, 101P304-D27A, 7901415
Product Details | LINEAR ELECTRICAL RESOLVER
5990-00-120-1191 An item consisting of a stator and rotor inductively coupled which provides accurate linear indication of shaft rotation about a reference position in the form of a polarized voltage whose magnitude is proportional to angular displacement and phase relationship indicates direction of shaft rotation. Its windings and slots are not uniformly distributed, but instead are deliberately modified to produce a linear output which is usually limited to less than plus or minus 90 degrees of effective electrical travel. Normally it has only one energization winding and one output winding. See also RESOLVER, ELECTRICAL.
Part Alternates: 101P304D27A, 101P304-D27A, 7901415, 800292, 8002921, 800292-1, 5990-00-120-1191, 00-120-1191, 5990001201191, 001201191
Electrical and Electronic Equipment Components | Synchros and Resolvers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 21 OCT 1968 | 00-120-1191 | 31780 ( RESOLVER, ELECTRICAL, LINEAR ) |
Drawings & Photos | NSN 5990-00-120-1191
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5990-00-120-1191
Technical Data | NSN 5990-00-120-1191
| Characteristic | Specifications |
|---|---|
| BODY SIZE | 10 |
| ROTOR INPUT VOLTAGE RATING IN VOLTS | 26.0 NOMINAL |
| FREQUENCY IN HERTZ | 400.0 NOMINAL |
| TRANSFORMATION RATIO | 0.923 STATOR TO ROTOR MINIMUM |
| PHASE SHIFT ANGLE IN DEG | 5.000 INPUT TO OUTPUT MINIMUM |
| MAXIMUM LINEAR RANGE IN DEG | -60.0 TO 60.0 |
| LINEARITY IN PERCENT | 1.00 |
| BODY STYLE | A1 STANDARD ROUND A |
| PILOT DIAMETER | 0.6875 INCHES MAXIMUM |
| OVERALL LENGTH | 3.6430 INCHES MAXIMUM |
| FLANGE DIAMETER | 0.9370 INCHES NOMINAL |
| FLANGE THICKNESS | 0.0620 INCHES NOMINAL |
| UNDERCUT DIAMETER | 0.8370 INCHES NOMINAL |
| UNDERCUT WIDTH | 0.0620 INCHES NOMINAL |
| PILOT LENGTH | 0.0380 INCHES NOMINAL |
| MOUNTING SURFACE TO TERMINAL END DISTANCE | 2.9040 INCHES MAXIMUM |
| SHAFT TYPE | ROUND SINGLE SHAFT |
| SHAFT DIAMETER | 0.1248 INCHES MAXIMUM SINGLE SHAFT |
| SHAFT LENGTH | 0.6810 INCHES NOMINAL SINGLE SHAFT |
| TERMINAL TYPE AND QUANTITY | 6 TURRET |
| TERMINAL LOCATION | REAR AND SIDE |
| BODY MATERIAL | STEEL, CORROSION RESISTING |
| SPECIAL FEATURES | MAGNETIC CLUTCH |
| III SHAFT END PLAY | 0.0020 INCHES MAXIMUM |
| III SHAFT MAXIMUM RUNOUT | 0.0010 INCHES |

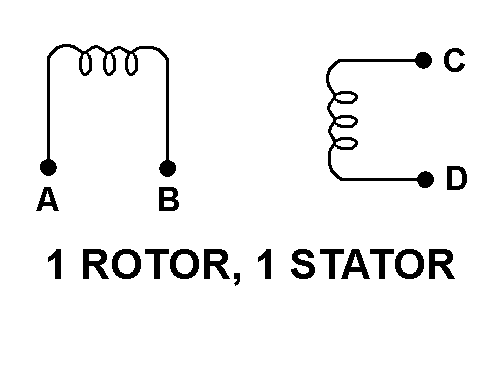

| III SCHEMATIC DIAGRAM DESIGNATOR | D28 ONE ROTOR, ONE STATOR |
| III FRAGILITY FACTOR | MODERATELY RUGGED |
Restrictions/Controls & Freight Information | NSN 5990-00-120-1191
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 062120 | GENERATORS/MOTORS/PARTS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | KE | Naval ICP Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5990-00-120-1191
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
