NSN 5985-01-522-5469 RC6A5126F17B, 01-522-5469, 015225469
Product Details | RADIO FREQUENCY TRANSMISSION LINE SWITCH
5985-01-522-5469 An item specifically designed for mechanically or electronically positioning one or more radio frequency transmission line sections so as to couple it or them to other sections in a radio frequency transmission line system. The switching function may be operated by a manual actuator, an electromechanical actuator or by means of an arrangement of semiconductors and passive circuit devices. Excludes RELAY, (as modified).202593000005985000000
Part Alternates: RC6A5126F17B, 5985-01-522-5469, 01-522-5469, 5985015225469, 015225469
Electrical and Electronic Equipment Components | Antennas, Waveguides, and Related Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 03 AUG 2004 | 01-522-5469 | 05298 ( SWITCH, RADIO FREQUENCY TRANSMISSION LINE ) |
Drawings & Photos | NSN 5985-01-522-5469
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5985-01-522-5469
Related Products | NSN 5985-01-522-5469
Technical Data | NSN 5985-01-522-5469
| Characteristic | Specifications |
|---|---|
| FREQUENCY RATING | 0.0 MEGAHERTZ MINIMUM AND 400.0 MEGAHERTZ MAXIMUM SINGLE FREQUENCY OPERATING |
| RF POWER HANDLING CAPABILITY | 25.0 KILOWATTS AVERAGE SINGLE |
| VOLTAGE STANDING WAVE RATIO | 1.15 SINGLE |
| INSERTION LOSS IN DECIBELS | 0.01 SINGLE |
| ACTUATOR OPERATING METHOD | RELAY |
| ACTUATOR VOLTAGE IN VOLTS | 26.5 NOMINAL |
| SWITCH TYPE | NONTRANSFER |
| POLE QUANTITY | 3 |
| TERMINAL TYPE AND QUANTITY | 3 RECEPTACLE, COAXIAL |
| SWITCHING TIME | 50.0 MILLISECONDS |
| SWITCH RETURN MECHANISM TYPE | LATCHING |

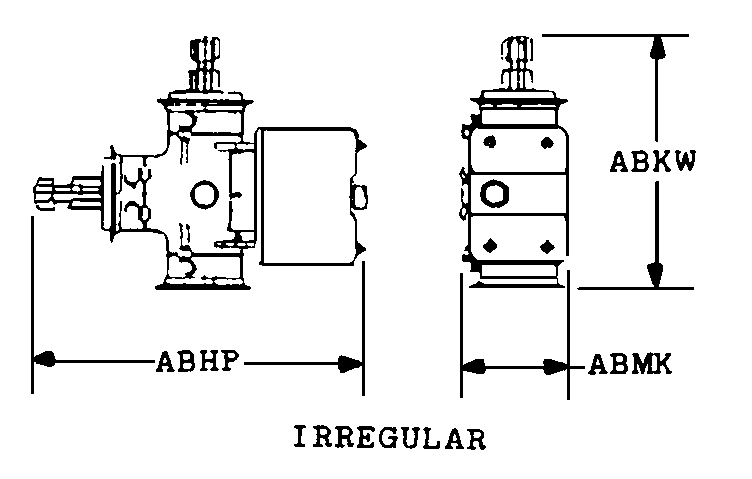

| BODY STYLE | 98B IRREGULAR |
| OVERALL LENGTH | 10.880 INCHES MAXIMUM |
| OVERALL HEIGHT | 5.820 INCHES NOMINAL |
| OVERALL WIDTH | 4.560 INCHES NOMINAL |
| SPECIAL FEATURES | SPTD VACUUM COAXIAL RELAY. 15.4 OHM COIL RESISTANCE. |
| III END ITEM IDENTIFICATION | SPACE LIFT RANGE SYSTEM. ARGENTIA COMMAND II. |
