NSN 5985-01-493-7048 WR6223066, WR62-230-6-6, 6223066
Product Details | WAVEGUIDE SEAL
5985-01-493-7048 An item or assembly designed to be fitted into or external to the end of a waveguide, in order to prevent the entrance of moisture or other foreign matter, without appreciably attenuating radio frequencies. May or may not be pressure proof.
Part Alternates: WR6223066, WR62-230-6-6, 6223066, 62-230-6-6, 5985-01-493-7048, 01-493-7048, 5985014937048, 014937048
Electrical and Electronic Equipment Components | Antennas, Waveguides, and Related Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 15 JAN 2002 | 01-493-7048 | 02477 ( SEAL, WAVEGUIDE ) |
Drawings & Photos | NSN 5985-01-493-7048
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5985-01-493-7048
Technical Data | NSN 5985-01-493-7048
| Characteristic | Specifications |
|---|---|

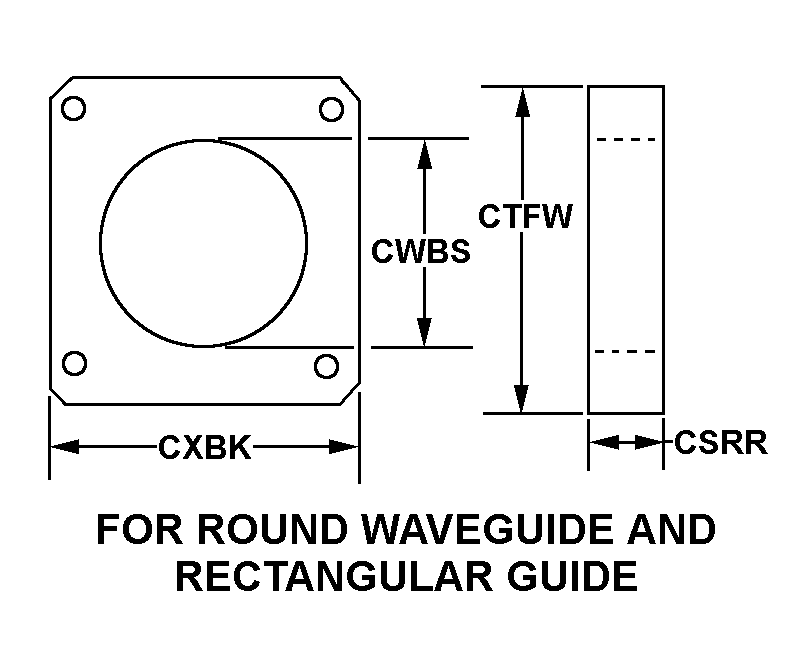

| STYLE DESIGNATOR | G2 FOR ROUND WAVEGUIDE AND RECTANGULAR FLANGE |
| MATERIAL | GLASS SINGLE FLANGE |
| SURFACE TREATMENT | COPPER SINGLE FLANGE ALL SURFACES |
| SPECIAL FEATURES | TEFLON FIBERGLASS MATERIAL; PERIMETERS PLATED WITH COPPER |
Restrictions/Controls & Freight Information | NSN 5985-01-493-7048
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
