NSN 5985-01-481-4966 DMM2-250/74336, DMM225074336, 01-481-4966
Product Details | COAXIAL CRYSTAL MIXER
5985-01-481-4966 An item consisting of coaxial line and associated connectors having two frequency inputs, a crystal (any semiconductor device that provides rectification) and an output connection. It is employed to mix two frequencies, with the resultant output frequency being a composite of the two inputs. For items utilizing electron tube(s) and/or WAVEGUIDE ASSEMBLY, see MIXER STAGE, FREQUENCY; and MIXER, CRYSTAL, WAVEGUIDE.
Part Alternates: DMM2-250/74336, DMM225074336, 5985-01-481-4966, 01-481-4966, 5985014814966, 014814966
Electrical and Electronic Equipment Components | Antennas, Waveguides, and Related Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 10 JAN 2001 | 01-481-4966 | 22970 ( MIXER, CRYSTAL, COAXIAL ) |

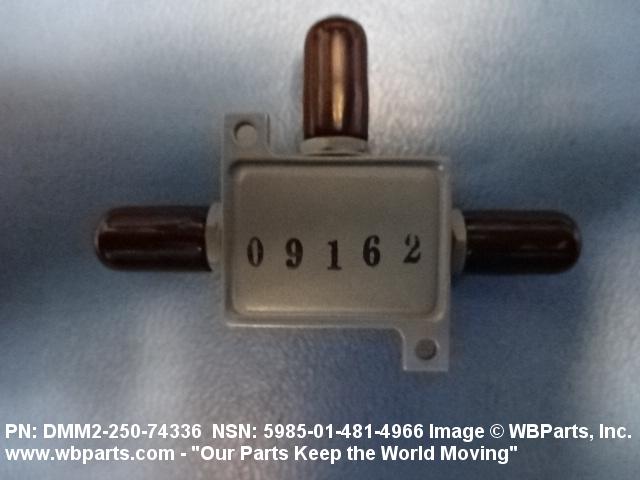

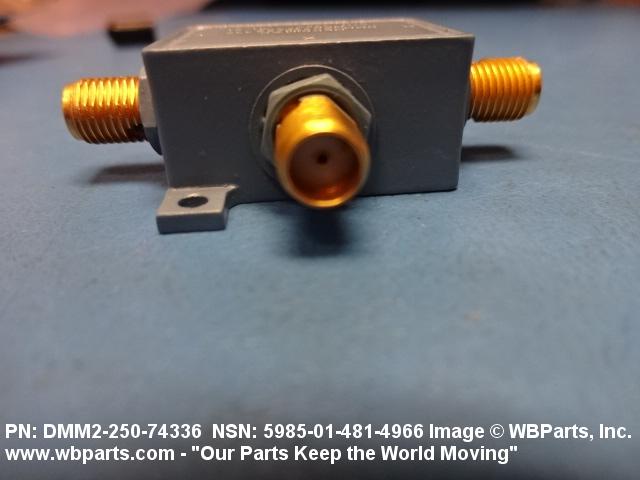

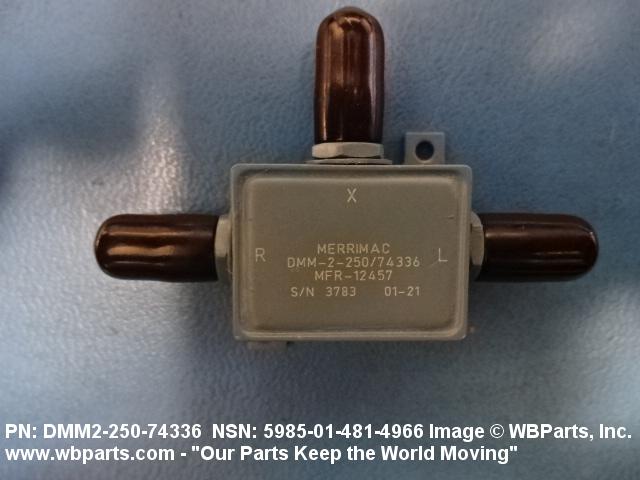

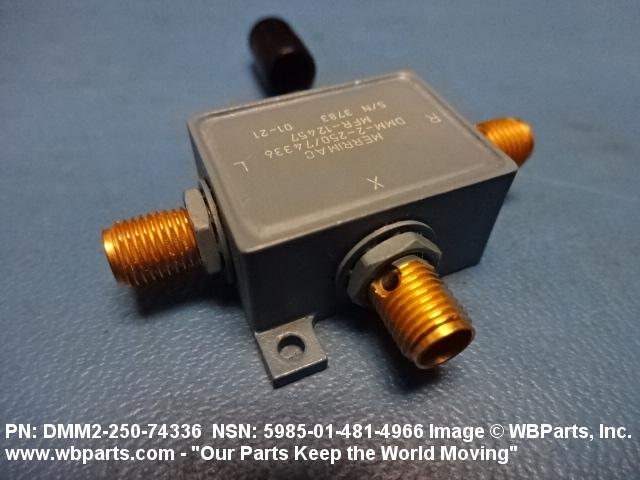

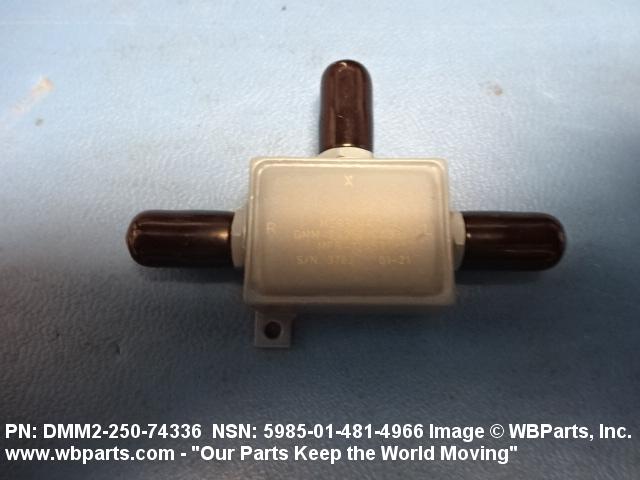

Drawings & Photos | NSN 5985-01-481-4966
Demand History | NSN 5985-01-481-4966
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5985-01-481-4966 | 2017-02-57 | 6 | DIBBS |
| 5985-01-481-4966 | 2016-11-312 | 2 | DIBBS |
| 5985-01-481-4966 | 2016-10-300 | 2 | DIBBS |
| 5985-01-481-4966 | 2016-10-298 | 4 | DIBBS |
| 5985-01-481-4966 | 2016-09-266 | 4 | DIBBS |
| 5985-01-481-4966 | 2016-09-265 | 2 | United States |
| 5985-01-481-4966 | 2016-06-174 | 6 | DIBBS |
| 5985-01-481-4966 | 2016-06-159 | 6 | DIBBS |
Cross Reference | NSN 5985-01-481-4966
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| DMM2-250/74336 | 12457 | MERRIMAC INDUSTRIES, INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5985-01-481-4966
Related Products | NSN 5985-01-481-4966
Technical Data | NSN 5985-01-481-4966
| Characteristic | Specifications |
|---|---|
| FREQUENCY RANGE RATING | 1.0 TO 500.0 MEGAHERTZ |
| INSERTION LOSS IN DECIBELS | 9.0 |
| SIGNAL INPUT TERMINAL DESIGNATOR | FEMALE SMA TYPE |
| LOCAL OSCILLATOR INPUT TERMINAL DESIGNATOR | FEMALE SMA TYPE |
| SIGNAL OUTPUT TERMINAL DESIGNATOR | FEMALE SMA TYPE |
| LOCAL OSCILLATOR INPUT ADJUSTABILITY | NONADJUSTABLE |
| OVERALL LENGTH | 0.970 INCHES MINIMUM AND 1.030 INCHES MAXIMUM |
| OVERALL WIDTH | 0.550 INCHES MAXIMUM |
| OVERALL HEIGHT | 0.720 INCHES MINIMUM AND 0.780 INCHES MAXIMUM |
| SPECIAL FEATURES | MATES WITH CONNECTOR, PLUG, MALE, PER MIL-C-39012 |
| III END ITEM IDENTIFICATION | ITA NO. 8, WSD: SUPPORT EQUIPMENT, F-15 AIRCRAFT |
Restrictions/Controls & Freight Information | NSN 5985-01-481-4966
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061320 | COAXIAL TRANSMISSION LINE/FITTINGS |
| Less than car load rating | ||
| Less than truck load rating | J | 100.2 |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | TH | Defense Supply Center Columbus Columbus, OH 43215 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5985-01-481-4966
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | FX | TG:F-15 EAGLE |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
