Product Details | WAVEGUIDE SWITCH
5985-01-478-2085 An item specifically designed for mechanically or electronically positioning one or more waveguide sections so as to couple it or them to other sections in a waveguide system. The switching function may be operated by a manual actuator, an electromechanical actuator or by means of an arrangement of semiconductors and passive circuit devices. Excludes RELAY, (as modified).
Part Alternates: E20520000, E20520-000, 9820520, 98-20520, 5985-01-478-2085, 01-478-2085, 5985014782085, 014782085
Electrical and Electronic Equipment Components | Antennas, Waveguides, and Related Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 31 AUG 2000 | 01-478-2085 | 05118 ( SWITCH, WAVEGUIDE ) |
Drawings & Photos | NSN 5985-01-478-2085
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5985-01-478-2085
Related Products | NSN 5985-01-478-2085
Technical Data | NSN 5985-01-478-2085
| Characteristic | Specifications |
|---|---|
| FREQUENCY RATING | 14.0 GIGAHERTZ MINIMUM AND 14.2 GIGAHERTZ MAXIMUM SINGLE FREQUENCY OPERATING |
| INSERTION LOSS IN DECIBELS | 0.08 SINGLE |
| MINIMUM CROSSTALK RATING IN DECIBELS | 80.0 SINGLE |
| ACTUATOR OPERATING METHOD | MOTOR |
| SWITCH TYPE | TRANSFER |
| COUPLING POSITION QUANTITY | 4 |
| TERMINAL TYPE AND QUANTITY | 1 CONNECTOR, RECEPTACLE |
| SWITCH RETURN MECHANISM TYPE | FAIL-SAFE |
| WAVEGUIDE FLANGE TYPE | CONTACT |
| FLANGE CONNECTING FACILITY AND QUANTITY | 4 THREADED HOLE |

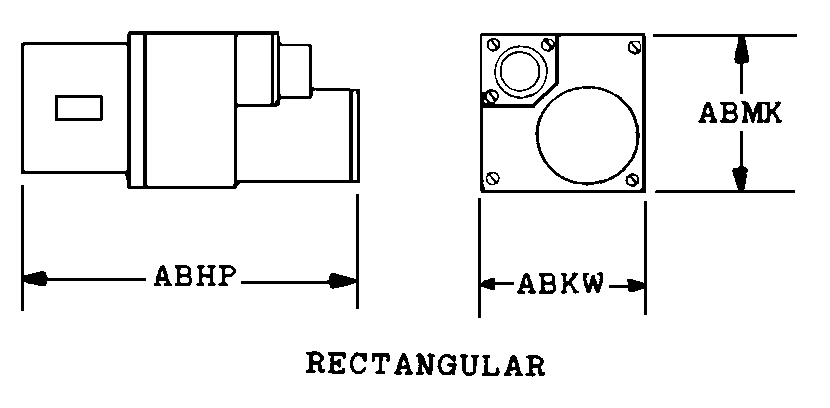

| BODY STYLE | 12C RECTANGULAR |
| MOUNTING FACILITY TYPE AND QUANTITY | 4 THREADED HOLE |
| MOUNTING FACILITY PATTERN | FOUR POSITION RECTANGULAR SINGLE MOUNTING FACILITY PATTERN |
| III END ITEM IDENTIFICATION | RADAR THREAT EMITTER AN/MST-T1 |
