NSN 5985-01-461-4257 AGH2040D, AGH-2040D, 01-461-4257
Product Details | VARIABLE ATTENUATOR
5985-01-461-4257 A device for reducing the strength of an alternating current signal either continuously or in steps, without causing appreciable signal distortion, by maintaining substantially constant output and/or input impedance match. Continuously variable resistive devices must consist of at least two sections or one section with at least two rotating contacts. The item must have an overall attenuation rating. Includes tandem mounted variable resistors designed to function as an attenuator but whose terminals are not connected. See also RESISTOR, VAIABLE (as modified).
Part Alternates: AGH2040D, AGH-2040D, 5985-01-461-4257, 01-461-4257, 5985014614257, 014614257
Electrical and Electronic Equipment Components | Antennas, Waveguides, and Related Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 11 DEC 1998 | 01-461-4257 | 00838 ( ATTENUATOR, VARIABLE ) |
Drawings & Photos | NSN 5985-01-461-4257
Cross Reference | NSN 5985-01-461-4257
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AGH-2040D | 60483 | AMERICAN MICROWAVE CORPORATION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5985-01-461-4257
Technical Data | NSN 5985-01-461-4257
| Characteristic | Specifications |
|---|---|
| APPLICATION DESIGN | TRANSMISSION LINE |
| FREQUENCY RANGE | 1.500 GIGAHERTZ MINIMUM AND 4.500 GIGAHERTZ MAXIMUM |
| OVERALL ATTENUATION RANGE IN DECIBELS | 0.0 TO 60.0 |
| ATTENUATION VARIATION METHOD | CONTINUOUS |

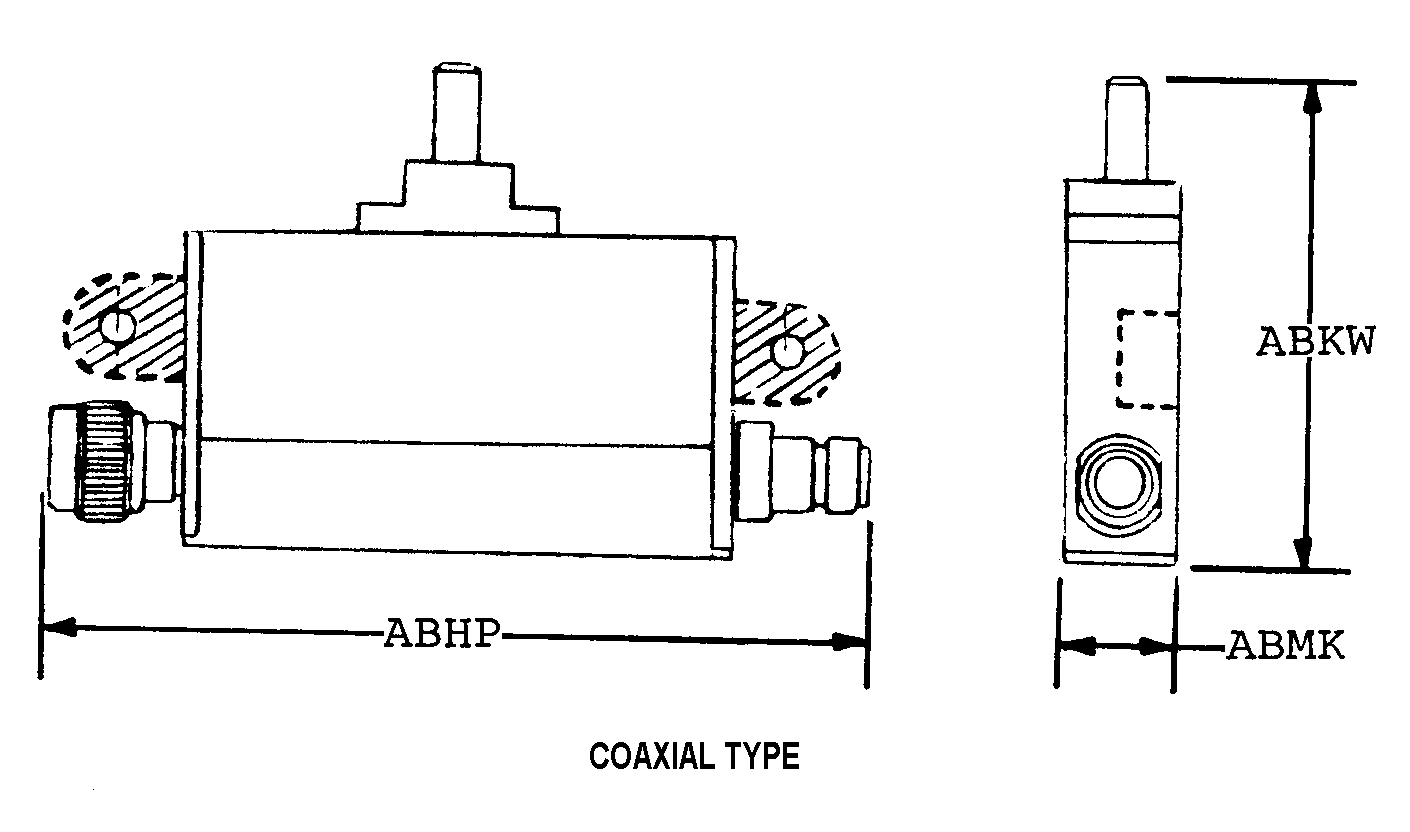

| BODY STYLE | 22A COAXIAL TYPE |
