NSN 5985-01-459-4760 VDS1140, 80X286P001, 01-459-4760
Product Details | FIXED ATTENUATOR
5985-01-459-4760 A device for reducing the strength of an alternating current signal by a fixed or predetermined amount, without causing appreciable signal distortion, by maintaining correct impedance match.
Part Alternates: VDS1140, 80X286P001, 5985-01-459-4760, 01-459-4760, 5985014594760, 014594760
Electrical and Electronic Equipment Components | Antennas, Waveguides, and Related Equipment
Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
---|---|---|---|
59 | 02 OCT 1998 | 01-459-4760 | 14224 ( ATTENUATOR, FIXED ) |
Request a Quote
What Our Customers Say
Compare
NSNs for Compare ( up to 4 ): Add 5985-01-459-4760
Related Products | NSN 5985-01-459-4760
Technical Data | NSN 5985-01-459-4760
Characteristic | Specifications |
---|---|
INPUT IMPEDANCE RATING IN OHMS | 1000.0 |
FREQUENCY RANGE | 2.700 GIGAHERTZ MINIMUM AND 3.000 GIGAHERTZ MAXIMUM |
POWER RATING | 2.0 KILOWATTS PEAK |
OPERATING TEMP RANGE | 0.0 TO 50.0 DEG CELSIUS |

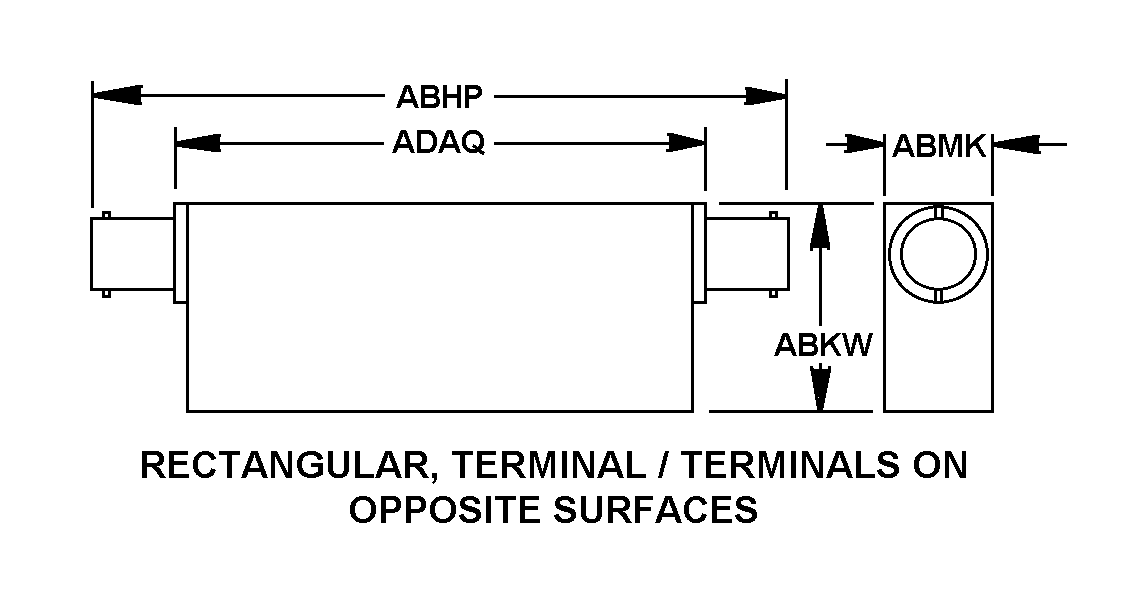

BODY STYLE | 6B RECTANGULAR, TERMINAL/TERMINALS ON OPPOSITE SURFACES |
TERMINAL TYPE AND QUANTITY | 1 FLANGE |
WAVEGUIDE FLANGE DESIGNATION | UG-1725/U |
CONNECTION TYPE PER FUNCTION | FEMALE INPUT AND FEMALE OUTPUT |
SPECIAL FEATURES | PROTECTS UP TO 1 MEGAWATT; CONTAINS ESD PROTECTION |
Restrictions/Controls & Freight Information | NSN 5985-01-459-4760
Category | Code | Description |
---|---|---|
Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
Precious Metals Indicator Code: | A | Item does not contain precious metal |
Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
Category | Code | Description |
---|---|---|
No Freight Information |
