NSN 5985-01-451-9482 M862B/OPTIONS 3 AND 7, M862B37, M862B-3-7
Product Details | RADIO FREQUENCY TRANSMISSION LINE SWITCH
5985-01-451-9482 An item specifically designed for mechanically or electronically positioning one or more radio frequency transmission line sections so as to couple it or them to other sections in a radio frequency transmission line system. The switching function may be operated by a manual actuator, an electromechanical actuator or by means of an arrangement of semiconductors and passive circuit devices. Excludes RELAY, (as modified).202593000005985000000
Part Alternates: M862B/OPTIONS 3 AND 7, M862B37, M862B-3-7, M862BOPTIONS3AND7, 50831001, 5083-1001, 5985-01-451-9482, 01-451-9482, 5985014519482, 014519482
Electrical and Electronic Equipment Components | Antennas, Waveguides, and Related Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 09 JAN 1998 | 01-451-9482 | 05298 ( SWITCH, RADIO FREQUENCY TRANSMISSION LINE ) |
Drawings & Photos | NSN 5985-01-451-9482
Cross Reference | NSN 5985-01-451-9482
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5985-01-451-9482
Technical Data | NSN 5985-01-451-9482
| Characteristic | Specifications |
|---|---|
| FREQUENCY RATING | 0.1 GIGAHERTZ MINIMUM AND 8.0 GIGAHERTZ MAXIMUM 1ST FREQUENCY VOLTAGE STANDING WAVE RATIO 0.1 GIGAHERTZ MINIMUM AND 8.0 GIGAHERTZ MAXIMUM 1ST FREQUENCY INSERTION LOSS REFERENCE 0.1 GIGAHERTZ MINIMUM AND 1.0 GIGAHERTZ MAXIMUM 1ST FREQUENCY CROSSTALK REFERENCE 8.0 GIGAHERTZ MINIMUM AND 18.0 GIGAHERTZ MAXIMUM 2ND FREQUENCY VOLTAGE STANDING WAVE RATIO 8.0 GIGAHERTZ MINIMUM AND 12.4 GIGAHERTZ MAXIMUM 2ND FREQUENCY INSERTION LOSS REFERENCE 1.0 GIGAHERTZ MINIMUM AND 2.0 GIGAHERTZ MAXIMUM 2ND FREQUENCY CROSSTALK REFERENCE 12.4 GIGAHERTZ MINIMUM AND 18.0 GIGAHERTZ MAXIMUM 3RD FREQUENCY INSERTION LOSS REFERENCE 2.0 GIGAHERTZ MINIMUM AND 4.0 GIGAHERTZ MAXIMUM 3RD FREQUENCY CROSSTALK REFERENCE 4.0 GIGAHERTZ MINIMUM AND 18.0 GIGAHERTZ MAXIMUM 4TH FREQUENCY CROSSTALK REFERENCE |
| RF POWER HANDLING CAPABILITY | 1.0 WATTS AVERAGE SINGLE |
| VOLTAGE STANDING WAVE RATIO | 1.30 1ST 1.60 2ND 1.75 3RD |
| INSERTION LOSS IN DECIBELS | 1.00 1ST 1.50 2ND 2.00 3RD |
| MINIMUM CROSSTALK RATING IN DECIBELS | 30.0 1ST 36.0 2ND 40.0 3RD 45.0 4TH |
| ACTUATOR OPERATING METHOD | SOLID STATE |
| SWITCH TYPE | NONTRANSFER |
| POLE QUANTITY | 1 |
| THROW QUANTITY | 1 |
| COUPLING POSITION QUANTITY | 3 |
| TERMINAL TYPE AND QUANTITY | 6 RECEPTACLE, COAXIAL |
| COAXIAL CONNECTOR SERIES DESIGNATION | SMA AND SMC |
| CONNECTOR END DESIGN | MALE AND FEMALE |

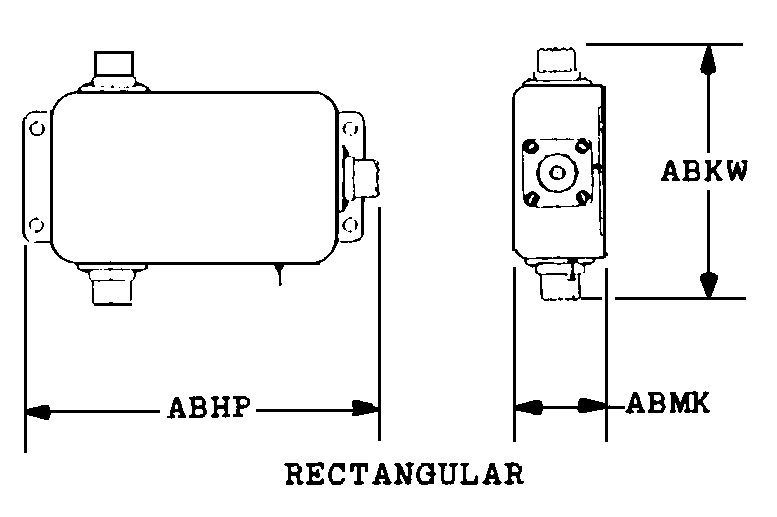

| BODY STYLE | 56B RECTANGULAR |
| OVERALL LENGTH | 1.680 INCHES NOMINAL |
| OVERALL HEIGHT | 1.460 INCHES NOMINAL |
| OVERALL WIDTH | 0.510 INCHES NOMINAL |
