Product Details | WAVEGUIDE SWITCH
5985-01-379-9213 An item specifically designed for mechanically or electronically positioning one or more waveguide sections so as to couple it or them to other sections in a waveguide system. The switching function may be operated by a manual actuator, an electromechanical actuator or by means of an arrangement of semiconductors and passive circuit devices. Excludes RELAY, (as modified).
Part Alternates: B3PL1611, 8720801, 872080-1, 8720802, 872080-2, 5985-01-379-9213, 01-379-9213, 5985013799213, 013799213
Electrical and Electronic Equipment Components | Antennas, Waveguides, and Related Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 10 SEP 1993 | 01-379-9213 | 05118 ( SWITCH, WAVEGUIDE ) |
Drawings & Photos | NSN 5985-01-379-9213
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5985-01-379-9213
Related Products | NSN 5985-01-379-9213
Technical Data | NSN 5985-01-379-9213
| Characteristic | Specifications |
|---|---|
| FREQUENCY RATING | 9.3 GIGAHERTZ NOMINAL SINGLE FREQUENCY OPERATING |
| RF POWER HANDLING CAPABILITY | 22.5 WATTS AVERAGE SINGLE |
| VOLTAGE STANDING WAVE RATIO | 1.30 SINGLE |
| INSERTION LOSS IN DECIBELS | 0.80 SINGLE |
| SWITCH TYPE | TRANSFER |
| COUPLING POSITION QUANTITY | 2 |
| TERMINAL TYPE AND QUANTITY | 1 RECTANGULAR FLANGE |
| WAVEGUIDE FLANGE TYPE | COVER |
| FLANGE CONNECTING FACILITY AND QUANTITY | 4 THREADED HOLE |

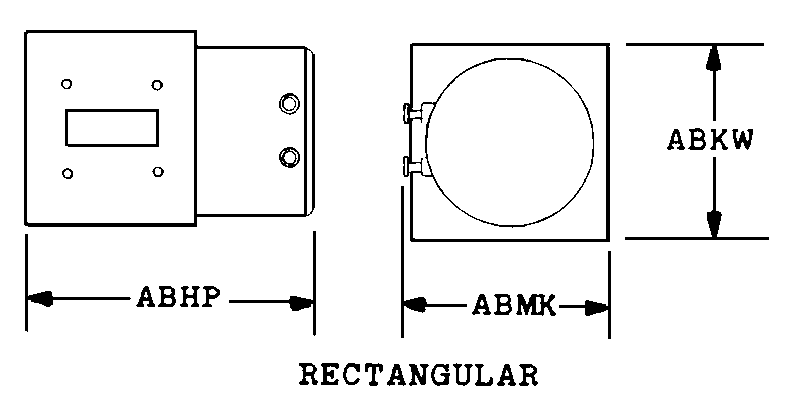

| BODY STYLE | 11C RECTANGULAR |
