NSN 5985-01-379-1278 A584A087101, A584A087-101, SW-11
Product Details | RADIO FREQUENCY TRANSMISSION LINE SWITCH
5985-01-379-1278 An item specifically designed for mechanically or electronically positioning one or more radio frequency transmission line sections so as to couple it or them to other sections in a radio frequency transmission line system. The switching function may be operated by a manual actuator, an electromechanical actuator or by means of an arrangement of semiconductors and passive circuit devices. Excludes RELAY, (as modified).202593000005985000000
Part Alternates: A584A087101, A584A087-101, SW-11, DS0397, SW11, 5985-01-379-1278, 01-379-1278, 5985013791278, 013791278
Electrical and Electronic Equipment Components | Antennas, Waveguides, and Related Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 27 AUG 1993 | 01-379-1278 | 05298 ( SWITCH, RADIO FREQUENCY TRANSMISSION LINE ) |
Drawings & Photos | NSN 5985-01-379-1278
Demand History | NSN 5985-01-379-1278
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| SW11 | 2024-01-12 | 2 | Germany |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5985-01-379-1278
Related Products | NSN 5985-01-379-1278
Technical Data | NSN 5985-01-379-1278
| Characteristic | Specifications |
|---|---|
| FREQUENCY RATING | 70.0 MEGAHERTZ MINIMUM AND 80.0 MEGAHERTZ MAXIMUM SINGLE FREQUENCY OPERATING |
| VOLTAGE STANDING WAVE RATIO | 1.25 SINGLE |
| INSERTION LOSS IN DECIBELS | 0.80 SINGLE |
| MINIMUM CROSSTALK RATING IN DECIBELS | 55.0 SINGLE |
| ACTUATOR OPERATING METHOD | RELAY |
| COUPLING POSITION QUANTITY | 14 |
| TERMINAL TYPE AND QUANTITY | 14 PIN |
| SWITCHING TIME | 5.0 MICROSECONDS |
| SWITCH RETURN MECHANISM TYPE | FAIL-SAFE |

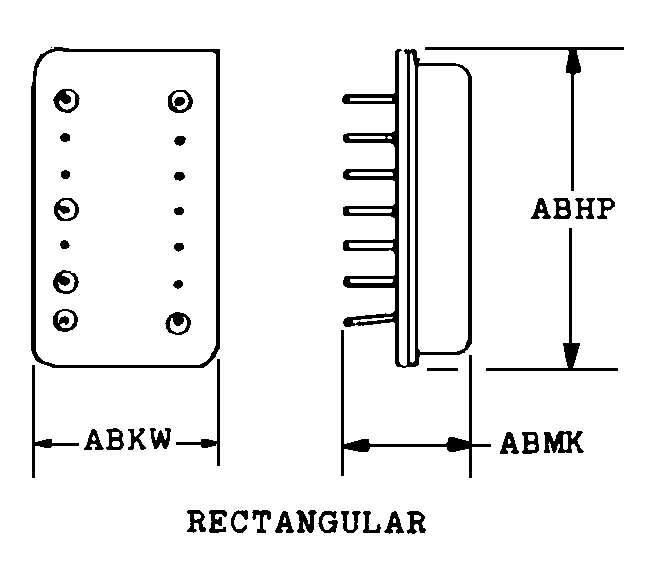

| BODY STYLE | 122B RECTANGULAR |
| OVERALL LENGTH | 0.895 INCHES MAXIMUM |
| OVERALL HEIGHT | 0.535 INCHES MAXIMUM |
| OVERALL WIDTH | 0.420 INCHES NOMINAL |
| MOUNTING FACILITY TYPE AND QUANTITY | 14 TERMINAL |
Restrictions/Controls & Freight Information | NSN 5985-01-379-1278
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061300 | CIRCUIT BREAKER/SWITCH NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 723 | unknown |
| Originating Activity Code | TH | Defense Supply Center Columbus Columbus, OH 43215 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
