NSN 5985-01-372-9588 A3RC217, A3RC21-7, 3790564070
Product Details | FIXED ATTENUATOR
5985-01-372-9588 A device for reducing the strength of an alternating current signal by a fixed or predetermined amount, without causing appreciable signal distortion, by maintaining correct impedance match.
Part Alternates: A3RC217, A3RC21-7, 3790564070, 379-0564-070, 5985-01-372-9588, 01-372-9588, 5985013729588, 013729588
Electrical and Electronic Equipment Components | Antennas, Waveguides, and Related Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 23 MAR 1993 | 01-372-9588 | 14224 ( ATTENUATOR, FIXED ) |
Drawings & Photos | NSN 5985-01-372-9588
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5985-01-372-9588
Related Products | NSN 5985-01-372-9588
Technical Data | NSN 5985-01-372-9588
| Characteristic | Specifications |
|---|---|
| APPLICATION DESIGN | TRANSMISSION LINE |
| INPUT IMPEDANCE RATING IN OHMS | 50.0 |
| OUTPUT IMPEDANCE RATING IN OHMS | 50.0 |
| FREQUENCY RANGE | 0.000 GIGAHERTZ MINIMUM AND 4.000 GIGAHERTZ MAXIMUM |
| VOLTAGE STANDING WAVE RATIO | 1.15 AND 1.35 AND 1.50 |
| VOLTAGE STANDING WAVE RATIO FREQUENCY RANGE | 0.0 TO 1.0 GIGAHERTZ AND 1.0 TO 2.5 GIGAHERTZ AND 2.5 TO 4.0 GIGAHERTZ |
| RF SIGNAL ATTENUATION IN DECIBELS | 7.0 |
| POWER RATING | 20.0 WATTS AVERAGE |
| OPERATING TEMP RANGE | -55.0 TO 85.0 DEG CELSIUS |

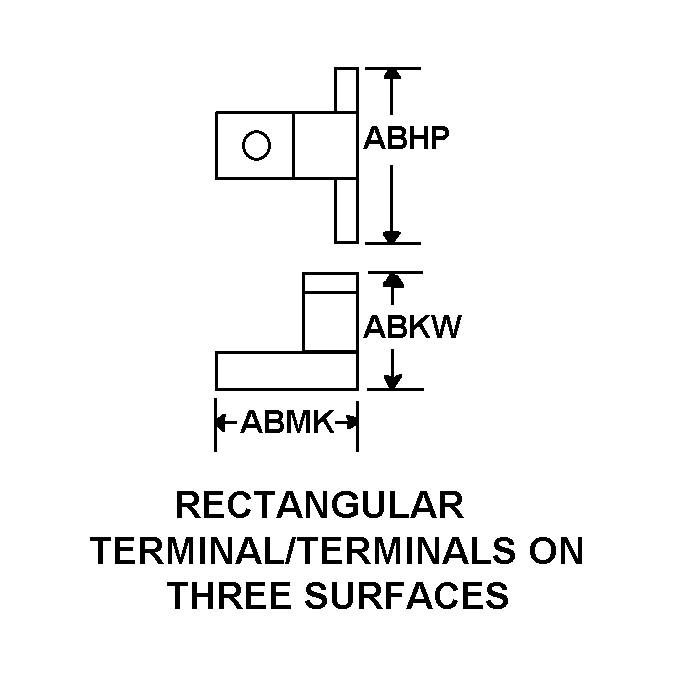

| BODY STYLE | 22B RECTANGULAR TERMINAL/TERMINALS ON THREE SURFACES |
| OVERALL LENGTH | 0.735 INCHES MINIMUM |
| OVERALL HEIGHT | 0.150 INCHES MAXIMUM |
| OVERALL WIDTH | 0.500 INCHES MINIMUM AND 0.530 INCHES MAXIMUM |
| BODY MATERIAL | BERYLLIUM COPPER AND COPPER |
| BODY SURFACE TREATMENT | NICKEL PLATED AND GOLD PLATED |
| TERMINAL TYPE AND QUANTITY | 2 RIBBON AND 1 SURFACE CONTACT |
| MOUNTING METHOD | TERMINAL |
| III PRECIOUS MATERIAL | GOLD |
| III PRECIOUS MATERIAL AND LOCATION | TERMINAL SURFACES GOLD |
