NSN 5985-01-340-8758 1A20436H04, 01-340-8758, 013408758
Product Details | FIXED ATTENUATOR
5985-01-340-8758 A device for reducing the strength of an alternating current signal by a fixed or predetermined amount, without causing appreciable signal distortion, by maintaining correct impedance match.
Part Alternates: 1A20436H04, 5985-01-340-8758, 01-340-8758, 5985013408758, 013408758
Electrical and Electronic Equipment Components | Antennas, Waveguides, and Related Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 20 JUN 1991 | 01-340-8758 | 14224 ( ATTENUATOR, FIXED ) |
Drawings & Photos | NSN 5985-01-340-8758
Cross Reference | NSN 5985-01-340-8758
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1A20436H04 | 97942 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN SYSTEMS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5985-01-340-8758
Related Products | NSN 5985-01-340-8758
Technical Data | NSN 5985-01-340-8758
| Characteristic | Specifications |
|---|---|
| APPLICATION DESIGN | TRANSMISSION LINE |
| INPUT IMPEDANCE RATING IN OHMS | 50.0 |
| OUTPUT IMPEDANCE RATING IN OHMS | 50.0 |
| FREQUENCY RANGE | 0.000 HERTZ MINIMUM AND 0.500 GIGAHERTZ MAXIMUM |
| VOLTAGE STANDING WAVE RATIO | 1.25 |
| VOLTAGE STANDING WAVE RATIO FREQUENCY RANGE | 0.0 TO 0.5 GIGAHERTZ |
| RF SIGNAL ATTENUATION IN DECIBELS | 13.0 |
| ATTENUATION ACCURACY IN DECIBELS | -0.50 TO 0.50 |
| FREQUENCY SENSITIVITY ATTENUATION IN DECIBELS | NOT RATED |
| POWER RATING | 40.0 WATTS AVERAGE |
| OPERATING TEMP RANGE | -55.0 TO 100.0 DEG CELSIUS |
| TEMPERATURE SENSITIVITY ATTENUATION IN DECIBELS | NOT RATED |

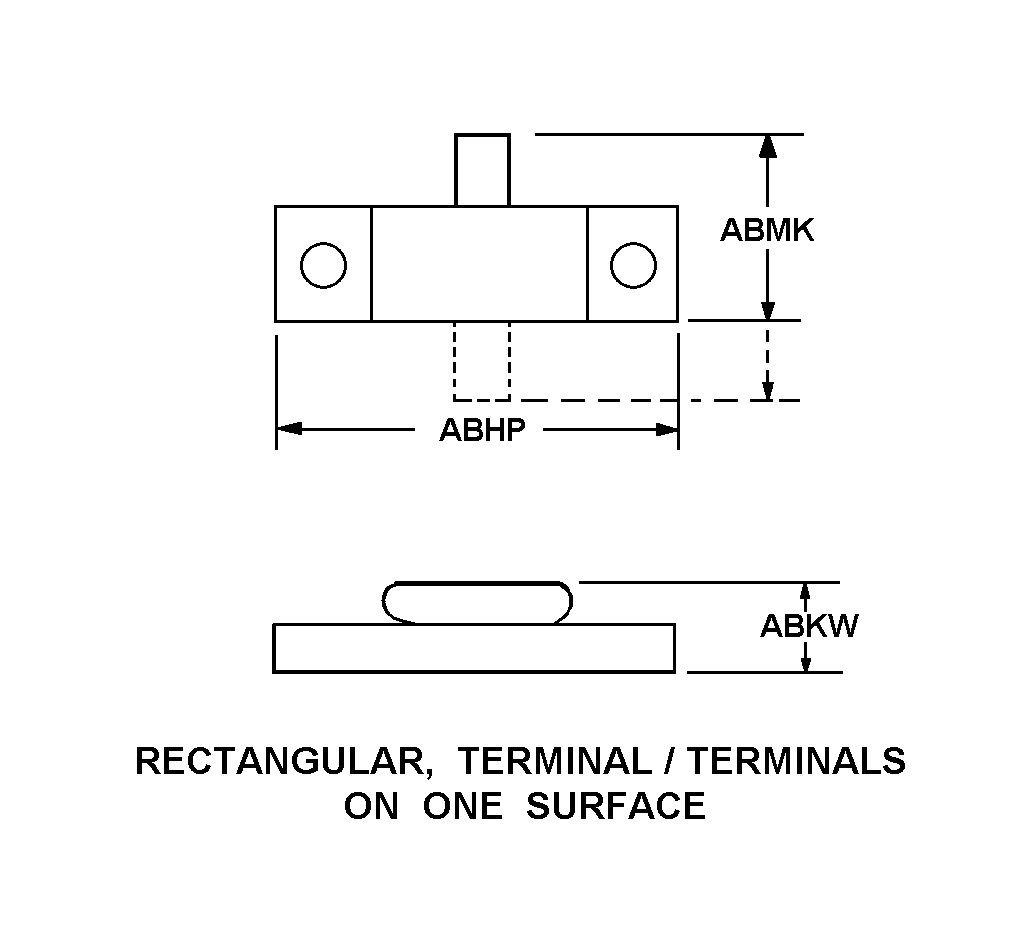

| BODY STYLE | 24B RECTANGULAR TERMINAL/TERMINALS ON ONE SURFACE |
| OVERALL LENGTH | 0.800 INCHES NOMINAL |
| OVERALL HEIGHT | 0.125 INCHES NOMINAL |
| OVERALL WIDTH | 0.710 INCHES NOMINAL |
| BODY MATERIAL | METAL AND PLASTIC |
| BODY SURFACE TREATMENT | NICKEL PLATED |
| TERMINAL TYPE AND QUANTITY | 3 SURFACE CONTACT |
| MOUNTING METHOD | UNTHREADED HOLE |
| MOUNTING HOLE/STUD QUANTITY | 2 |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.125 INCHES NOMINAL |
| III END ITEM IDENTIFICATION | AN/SPS-40D |
| III TERMINAL MATERIAL | COPPER |
| III TERMINAL SURFACE TREATMENT | NICKEL PLATED AND SILVER PLATED |
| III PRECIOUS MATERIAL | SILVER |
| III PRECIOUS MATERIAL AND LOCATION | TERMINALS SILVER |
| III FSC APPLICATION DATA | ANTENNAS,WAVEGUIDES,AND RELATED EQUIPMENT |
