NSN 5985-01-338-9313 GA810EG1, PA-534/SMA-TTL5V, PA534SMATTL5V
Product Details | VARIABLE ATTENUATOR
5985-01-338-9313 A device for reducing the strength of an alternating current signal either continuously or in steps, without causing appreciable signal distortion, by maintaining substantially constant output and/or input impedance match. Continuously variable resistive devices must consist of at least two sections or one section with at least two rotating contacts. The item must have an overall attenuation rating. Includes tandem mounted variable resistors designed to function as an attenuator but whose terminals are not connected. See also RESISTOR, VAIABLE (as modified).
Part Alternates: GA810EG1, PA-534/SMA-TTL5V, PA534SMATTL5V, 53016.5A-0.1S-5V-TTL, 530165A01S5VTTL, 5985-01-338-9313, 01-338-9313, 5985013389313, 013389313
Electrical and Electronic Equipment Components | Antennas, Waveguides, and Related Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 12 MAY 1991 | 01-338-9313 | 00838 ( ATTENUATOR, VARIABLE ) |

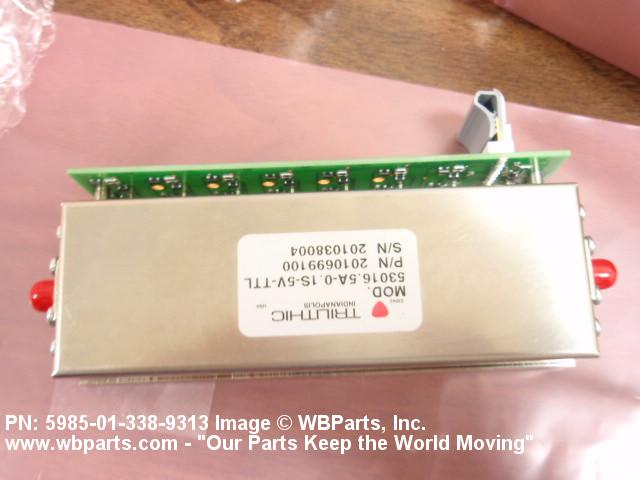

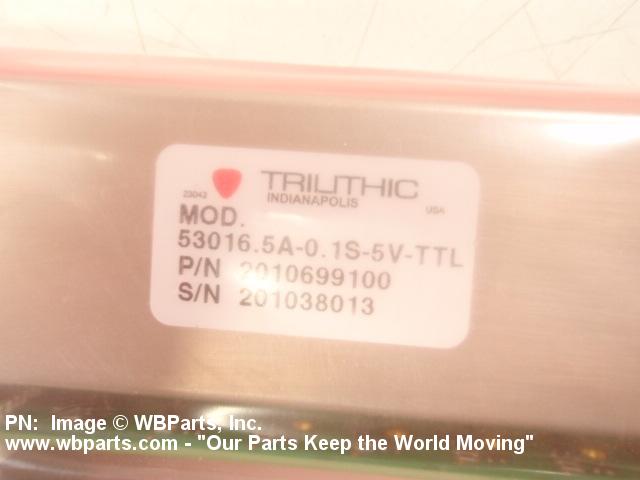

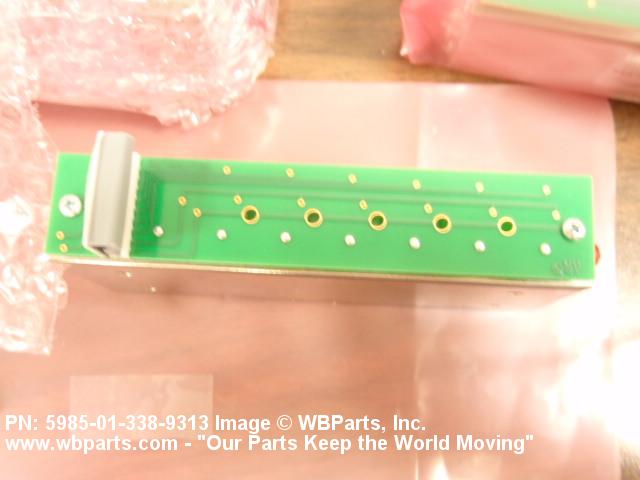

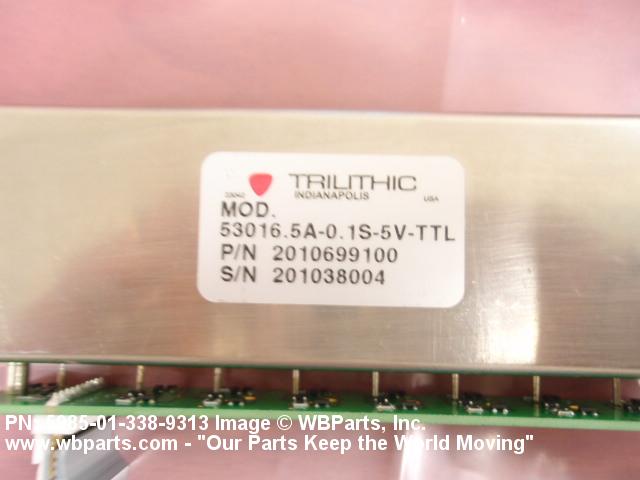

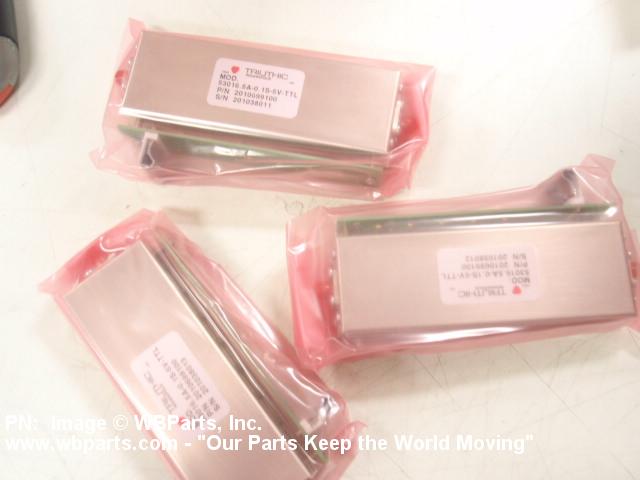

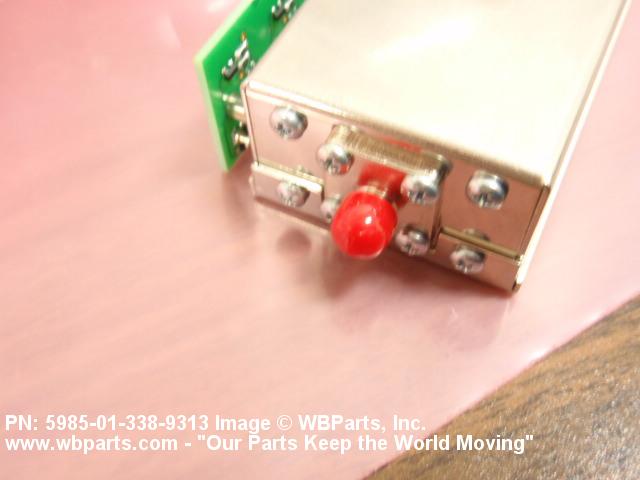

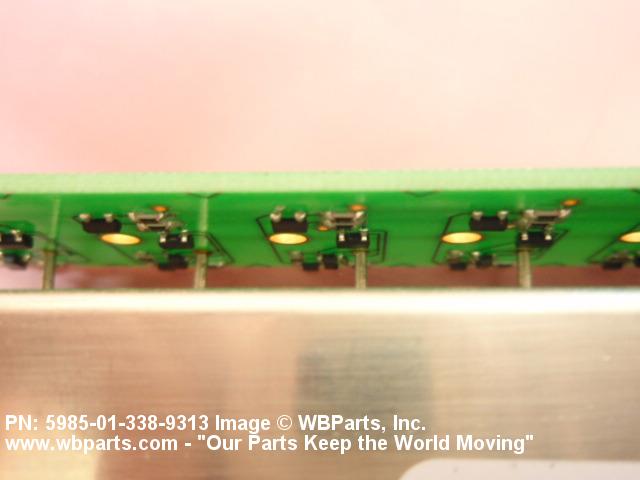

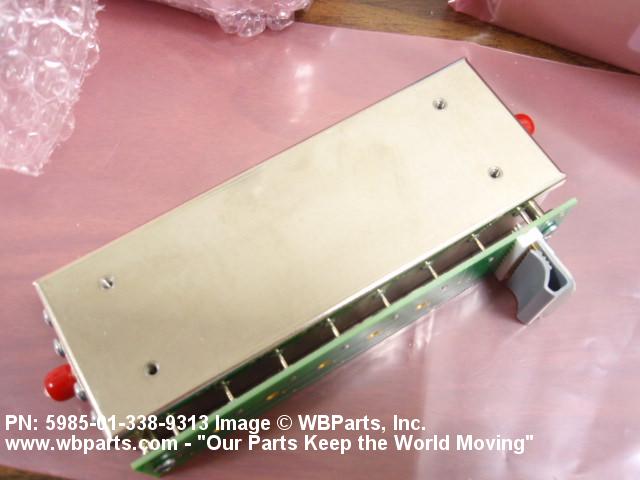

Drawings & Photos | NSN 5985-01-338-9313
Demand History | NSN 5985-01-338-9313
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 530165A01S5VTTL | 2010-11-305 | 3 | United States |
| 530165A01S5VTTL | 2010-07-187 | 20 | United States |
| 530165A01S5VTTL | 2010-07-187 | 15 | United States |
| 5985-01-338-9313 | 2010-06-173 | 8 | US |
| 5985-01-338-9313 | 2010-06-156 | 8 | United States |
| 530165A01S5VTTL | 2010-05-137 | 10 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5985-01-338-9313
Technical Data | NSN 5985-01-338-9313
| Characteristic | Specifications |
|---|---|
| APPLICATION DESIGN | TRANSMISSION LINE |
| FREQUENCY RANGE | 0.000 HERTZ MINIMUM AND 500.000 MEGAHERTZ MAXIMUM |
| IMPEDANCE RATING IN OHMS | 50.0 INPUT-OUTPUT |
| VOLTAGE STANDING WAVE RATIO | 1.20 |
| POWER RATING | 0.5 WATTS AVERAGE AND 750.0 WATTS PEAK |
| INSERTION LOSS AT MINIMUM ATTENUATION IN MAXIMUM DECIBELS | 2.5 |
| OVERALL ATTENUATION RANGE IN DECIBELS | 0.0 TO 1.5 |
| OVERALL ATTENUATION ACCURACY IN DECIBELS | -0.10 TO 0.10 |
| ATTENUATION VARIATION METHOD | STEPPED |
| STEP POSITION QUANTITY | 4 |
| ATTENUATION PER STEP IN DECIBELS | 1.0 AND 2.0 AND 4.0 AND 8.0 |
| ADJUSTMENT DEVICE TYPE AND QUANTITY | 1 ELECTRONIC, PROGRAMMABLE |
| TERMINAL TYPE AND QUANTITY | 2 CONNECTOR, COAXIAL, FEMALE AND 8 PIN |
| COAXIAL CONNECTOR SERIES DESIGNATION | SMA |
| SPECIAL FEATURES | WEAPON SYSTEM ESSENTIAL |
| CRITICALITY CODE JUSTIFICATION | FEAT |
| III END ITEM IDENTIFICATION | AIRCRAFT, HAWKEYE E-2C |
| III FSC APPLICATION DATA | ANTENNAS,WAVEGUIDE AND RELATED EQUIPMENT |
Restrictions/Controls & Freight Information | NSN 5985-01-338-9313
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | Q | Strategic List Item (SLI). Demilitarization not required. SLI are non-MLI(Munitions List Items) controlled by the U.S. Dept. of Commerce through the Export Administration Regulations (EAR) and indicated on the Commerce Control List (CCL). Each CCL entry is preceded by a four-digit Export Control Commerce Control List Item (CCLI) – MUT to the point of scrap required outside the United States. Inside the United States, MUT is required when the DEMIL integrity code (IC) is “3” and MUT is not required when the DEMIL IC is “6.” |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | Y | The item does not have a nuclear hardened feature but does have other critical feature(s) such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061700 | ELEC APPLIANCES/INSTRUMENTS NOI |
| Less than car load rating | ||
| Less than truck load rating | J | 100.2 |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5985-01-338-9313
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
