NSN 5985-01-267-0983 S4044, S-4044, 6011697001

Product Details | RADIO FREQUENCY TRANSMISSION LINE SWITCH

5985-01-267-0983 An item specifically designed for mechanically or electronically positioning one or more radio frequency transmission line sections so as to couple it or them to other sections in a radio frequency transmission line system. The switching function may be operated by a manual actuator, an electromechanical actuator or by means of an arrangement of semiconductors and passive circuit devices. Excludes RELAY, (as modified).202593000005985000000

Part Alternates: S4044, S-4044, 6011697001, 6011697-001, 5985-01-267-0983, 01-267-0983, 5985012670983, 012670983

Electrical and Electronic Equipment Components | Antennas, Waveguides, and Related Equipment

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	04 NOV 1987	01-267-0983	05298 ( SWITCH, RADIO FREQUENCY TRANSMISSION LINE )

Drawings & Photos | NSN 5985-01-267-0983

Part Number	Request Date	QTY	Origin
5985-01-267-0983	2015-02-55	2	DIBBS
5985-01-267-0983	2015-02-33	1	DIBBS
5985-01-267-0983	2014-02-41	1	DIBBS
5985-01-267-0983	2013-06-168	2	DIBBS
5985-01-267-0983	2013-06-156	2	DIBBS
5985-01-267-0983	2013-04-102	2	DIBBS
5985-01-267-0983	2013-03-83	1	DIBBS
5985-01-267-0983	2012-12-349	1	DIBBS

Cross Reference | NSN 5985-01-267-0983

Part Number	Cage Code	Manufacturer
6011697-001	12436	BAE SYSTEMS NATIONAL SECURITY SOLUTIONS INC.
S-4044	12598	R L C ELECTRONICS, INC.

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5985-01-267-0983

Compare

Related Products | NSN 5985-01-267-0983

5985-01-267-1071, 5985-01-267-1345, 5985-01-267-1346, 5985-01-267-1347, 5985-01-267-1348

Technical Data | NSN 5985-01-267-0983

Characteristic	Specifications
FREQUENCY RATING	0.0 GIGAHERTZ MINIMUM AND 18.0 GIGAHERTZ MAXIMUM SINGLE FREQUENCY OPERATING
RF POWER HANDLING CAPABILITY	2.0 WATTS AVERAGE SINGLE
ACTUATOR OPERATING METHOD	RELAY
ACTUATOR CURRENT TYPE AND RATING IN AMPS	0.135 DC NOMINAL
ACTUATOR VOLTAGE IN VOLTS	28.0 NOMINAL
SWITCH TYPE	NONTRANSFER
POLE QUANTITY	2
THROW QUANTITY	4
COUPLING POSITION QUANTITY	3
TERMINAL TYPE AND QUANTITY	2 TAB, SOLDER LUG AND 3 RECEPTACLE, COAXIAL
COAXIAL CONNECTOR SERIES DESIGNATION	SMA
CONNECTOR END DESIGN	FEMALE
SWITCH OPERATION SEQUENCE	BREAKS BEFORE MAKES
SWITCH RETURN MECHANISM TYPE	FAIL-SAFE

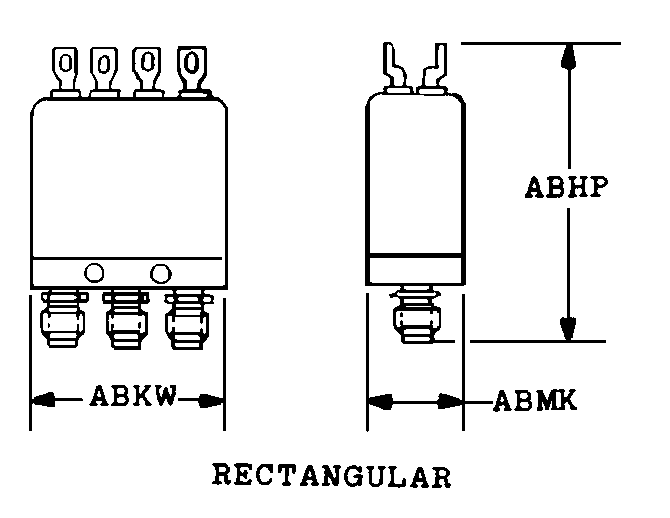

BODY STYLE	68B RECTANGULAR
OVERALL LENGTH	2.710 INCHES MINIMUM AND 2.790 INCHES MAXIMUM
OVERALL HEIGHT	2.230 INCHES MINIMUM AND 2.270 INCHES MAXIMUM
OVERALL WIDTH	0.500 INCHES MINIMUM AND 0.540 INCHES MAXIMUM
III OPERATING TEMP RANGE	-55.0 TO 85.0 DEG CELSIUS

Restrictions/Controls & Freight Information | NSN 5985-01-267-0983

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	061300	CIRCUIT BREAKER/SWITCH NOI
Less than car load rating
Less than truck load rating	P	77.5
Water commodity Code	723	unknown
Originating Activity Code	TH	Defense Supply Center Columbus Columbus, OH 43215
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5985-01-267-0983

Air Force
Navy

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation Code	EH	SX:ELECTRONIC COMPONENTS
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
