NSN 5985-01-262-1894 SM2294GF1P, SM229-4GF1P, 01-262-1894
Product Details | WAVEGUIDE SWITCH
5985-01-262-1894 An item specifically designed for mechanically or electronically positioning one or more waveguide sections so as to couple it or them to other sections in a waveguide system. The switching function may be operated by a manual actuator, an electromechanical actuator or by means of an arrangement of semiconductors and passive circuit devices. Excludes RELAY, (as modified).
Part Alternates: SM2294GF1P, SM229-4GF1P, 5985-01-262-1894, 01-262-1894, 5985012621894, 012621894
Electrical and Electronic Equipment Components | Antennas, Waveguides, and Related Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 25 AUG 1987 | 01-262-1894 | 05118 ( SWITCH, WAVEGUIDE ) |

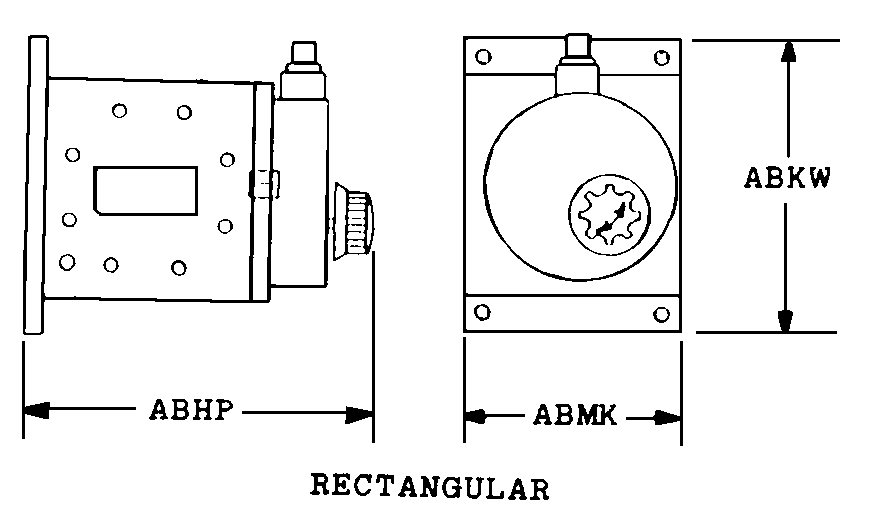

Drawings & Photos | NSN 5985-01-262-1894
Cross Reference | NSN 5985-01-262-1894
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| SM229-4GF1P | 53263 | SECTOR MICROWAVE INDUSTRIES, INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5985-01-262-1894
Technical Data | NSN 5985-01-262-1894
| Characteristic | Specifications |
|---|---|
| FREQUENCY RATING | 1.7 GIGAHERTZ MINIMUM AND 8.2 GIGAHERTZ MAXIMUM SINGLE FREQUENCY OPERATING |
| VOLTAGE STANDING WAVE RATIO | 0.10 SINGLE |
| INSERTION LOSS IN DECIBELS | 0.03 SINGLE |
| MINIMUM CROSSTALK RATING IN DECIBELS | 90.0 SINGLE |
| ACTUATOR OPERATING METHOD | MANUAL |
| BODY STYLE | 14C RECTANGULAR |
| OVERALL LENGTH | 9.200 INCHES NOMINAL |
| OVERALL WIDTH | 4.875 INCHES NOMINAL |
| MATERIAL | ALUMINUM BODY |
| MOUNTING FACILITY TYPE AND QUANTITY | 4 UNTHREADED HOLE |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.250 INCHES NOMINAL |
| TEST DATA DOCUMENT | 53263-SM229-4GFIP SPECIFICATION |
| MANUFACTURERS CODE | 53263 |
| DESIGN CONTROL REFERENCE | SM229-4GF1P |
Restrictions/Controls & Freight Information | NSN 5985-01-262-1894
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | D | Munitions List Item or Commerce Control List Item. Demilitarization required. Total destruction of the item and components so as to preclude restoration or repair to a usable condition by melting, cutting, tearing, scratching, crushing, breaking, punching, neutralizing, etc. (As an alternate, burial or deep water dumping may be used when coordinated with the DoD Demilitarization Program Office.) |
| Controlled Inventory Item Code: | 7 | NON-SENSITIVE (SRC-N/A) - UNCLASSIFIED AA&E: OR ITEMS ASSIGNED A DEMILITARIZATION CODE OTHER THAN A, B, Q, OR P FOR WHICH ANOTHER CIIC IS INAPPROPRIATE. (NOTE: THE LOSS, THEFT, UNLAWFUL DISPOSITION, AND/OR RECOVERY OF AN ITEM WITH CIIC 7 WILL BE INVESTIGATED IN ACCORDANCE WITH DOD-4000-25-2-M AND DOD 7200.14-R, VOLUME 12, CHAPTER 7). |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 063520 | WAVEGUIDE IN BOXES/CRATES SUB |
| Less than car load rating | ||
| Less than truck load rating | M | 85.0 |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | SJ | Air Force Cryptological Support Center San Antonio, TX 78243-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
