Product Details | RADIO FREQUENCY TRANSMISSION LINE SWITCH
5985-01-258-8858 An item specifically designed for mechanically or electronically positioning one or more radio frequency transmission line sections so as to couple it or them to other sections in a radio frequency transmission line system. The switching function may be operated by a manual actuator, an electromechanical actuator or by means of an arrangement of semiconductors and passive circuit devices. Excludes RELAY, (as modified).202593000005985000000
Part Alternates: M0720183, M07201-83, 61351132, 6135113-2, 221013, 2210-13, 5985-01-258-8858, 01-258-8858, 5985012588858, 012588858
Electrical and Electronic Equipment Components | Antennas, Waveguides, and Related Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 09 JUL 1987 | 01-258-8858 | 05298 ( SWITCH, RADIO FREQUENCY TRANSMISSION LINE ) |
Drawings & Photos | NSN 5985-01-258-8858
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5985-01-258-8858
Technical Data | NSN 5985-01-258-8858
| Characteristic | Specifications |
|---|---|
| VOLTAGE STANDING WAVE RATIO | 1.70 SINGLE |
| INSERTION LOSS IN DECIBELS | 1.80 SINGLE |
| MINIMUM CROSSTALK RATING IN DECIBELS | 50.0 SINGLE |
| ACTUATOR OPERATING METHOD | SOLID STATE |
| SWITCH TYPE | NONTRANSFER |
| POLE QUANTITY | 1 |
| THROW QUANTITY | 2 |
| TERMINAL TYPE AND QUANTITY | 5 RIBBON |
| SWITCHING TIME | 1.5 MICROSECONDS |

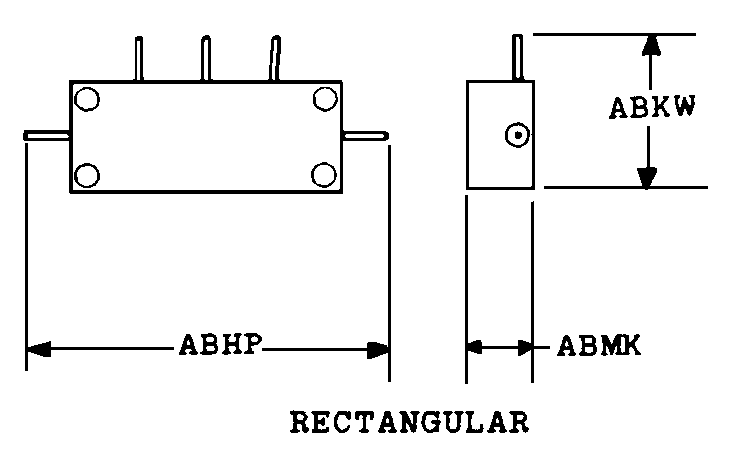

| BODY STYLE | 126B RECTANGULAR |
| OVERALL LENGTH | 0.732 INCHES NOMINAL |
| OVERALL HEIGHT | 0.131 INCHES NOMINAL |
| OVERALL WIDTH | 0.446 INCHES NOMINAL |
| III OPERATING TEMP RANGE | -54.0 TO 100.0 DEG CELSIUS |
| MANUFACTURERS CODE | 03640 |
| MFR SOURCE CONTROLLING REFERENCE | 6135113-2 |
