Product Details | VARIABLE ATTENUATOR
5985-01-239-6542 A device for reducing the strength of an alternating current signal either continuously or in steps, without causing appreciable signal distortion, by maintaining substantially constant output and/or input impedance match. Continuously variable resistive devices must consist of at least two sections or one section with at least two rotating contacts. The item must have an overall attenuation rating. Includes tandem mounted variable resistors designed to function as an attenuator but whose terminals are not connected. See also RESISTOR, VAIABLE (as modified).
Part Alternates: P467460Y, P4674-60Y, 407594, 5985-01-239-6542, 01-239-6542, 5985012396542, 012396542
Electrical and Electronic Equipment Components | Antennas, Waveguides, and Related Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 SEP 1986 | 01-239-6542 | 00838 ( ATTENUATOR, VARIABLE ) |
Drawings & Photos | NSN 5985-01-239-6542
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5985-01-239-6542
Technical Data | NSN 5985-01-239-6542
| Characteristic | Specifications |
|---|---|
| FREQUENCY RANGE | 3.100 GIGAHERTZ MINIMUM AND 3.500 GIGAHERTZ MAXIMUM |
| VOLTAGE STANDING WAVE RATIO | 1.50 |
| INSERTION LOSS AT MINIMUM ATTENUATION IN MAXIMUM DECIBELS | 0.5 |
| OVERALL ATTENUATION RANGE IN DECIBELS | 0.0 TO 60.0 |
| OVERALL ATTENUATION ACCURACY IN DECIBELS | 0.00 TO 1.50 |

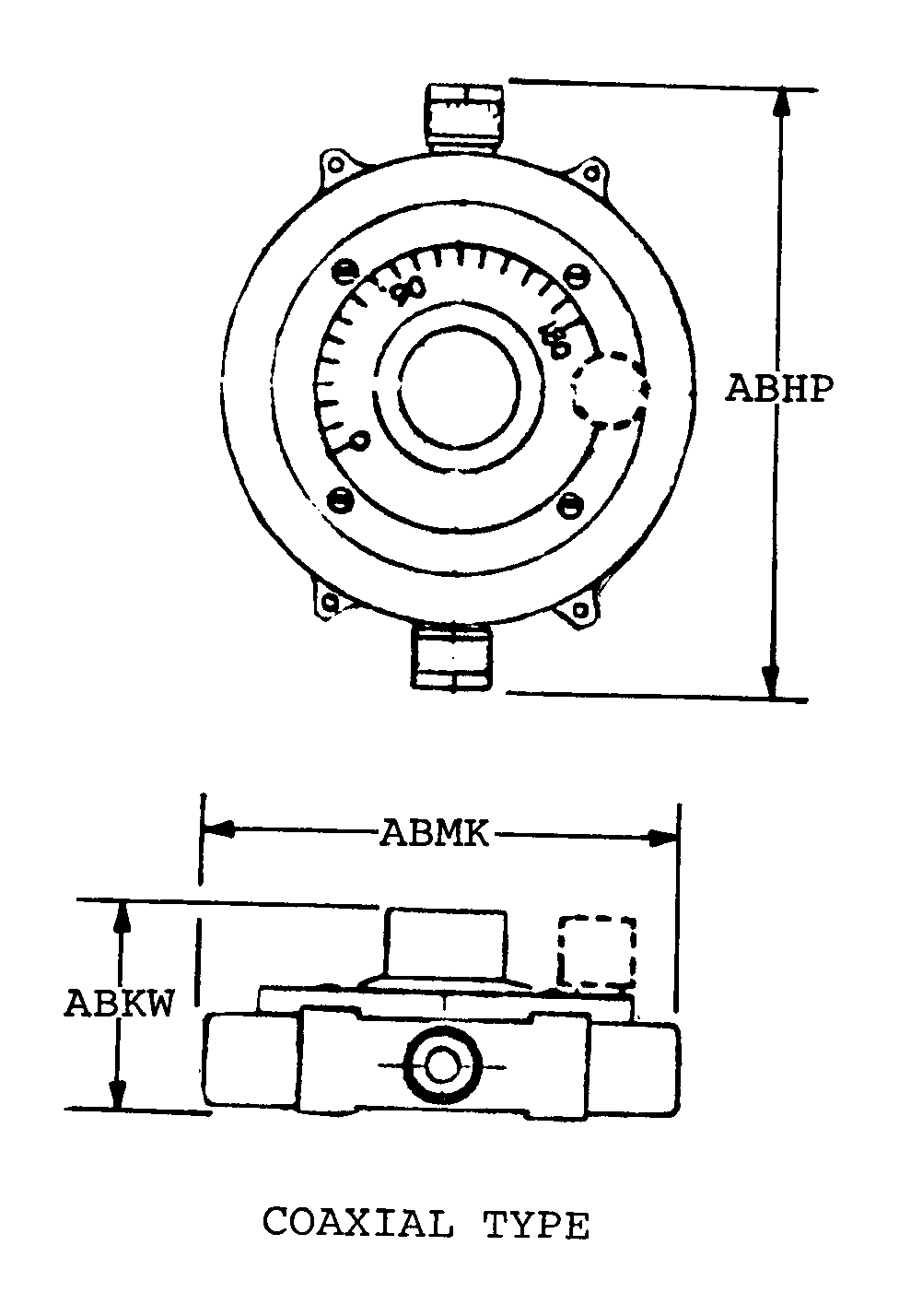

| BODY STYLE | 11A COAXIAL TYPE |
| OVERALL HEIGHT | 2.688 INCHES NOMINAL |
| OVERALL WIDTH | 5.000 INCHES NOMINAL |
| ADJUSTMENT DEVICE TYPE AND QUANTITY | 1 KNOB |
| TERMINAL TYPE AND QUANTITY | 2 CONNECTOR, COAXIAL, FEMALE |
| COAXIAL CONNECTOR SERIES DESIGNATION | SMA |
| MOUNTING FACILITY TYPE AND QUANTITY | 4 THREADED HOLE |
| MOUNTING FACILITY SCREW THREAD SERIES DESIGNATOR | UNC |
| MOUNTING FACILITY NOMINAL SCREW THREAD DIAMETER | 1.380 INCHES |
| MOUNTING THREAD QUANTITY | 32 PER INCH |
| MOUNTING FACILITY PATTERN | FOUR POSITION CIRCULAR |
