NSN 5985-01-238-0530 A3KT251, A3KT25-1, 433161
Product Details | FIXED ATTENUATOR
5985-01-238-0530 A device for reducing the strength of an alternating current signal by a fixed or predetermined amount, without causing appreciable signal distortion, by maintaining correct impedance match.
Part Alternates: A3KT251, A3KT25-1, 433161, 43316-1, 5985-01-238-0530, 01-238-0530, 5985012380530, 012380530
Electrical and Electronic Equipment Components | Antennas, Waveguides, and Related Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 09 AUG 1986 | 01-238-0530 | 14224 ( ATTENUATOR, FIXED ) |
Drawings & Photos | NSN 5985-01-238-0530
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5985-01-238-0530
Related Products | NSN 5985-01-238-0530
Technical Data | NSN 5985-01-238-0530
| Characteristic | Specifications |
|---|---|
| INPUT IMPEDANCE RATING IN OHMS | 50.0 |
| OUTPUT IMPEDANCE RATING IN OHMS | 50.0 |
| FREQUENCY RANGE | 0.000 HERTZ MINIMUM AND 12.400 GIGAHERTZ MAXIMUM |
| VOLTAGE STANDING WAVE RATIO | 1.20 |
| VOLTAGE STANDING WAVE RATIO FREQUENCY RANGE | 4.0 TO 8.0 GIGAHERTZ |
| POWER RATING | 15.0 WATTS AVERAGE |
| OPERATING TEMP RANGE | -55.0 TO 100.0 DEG CELSIUS |

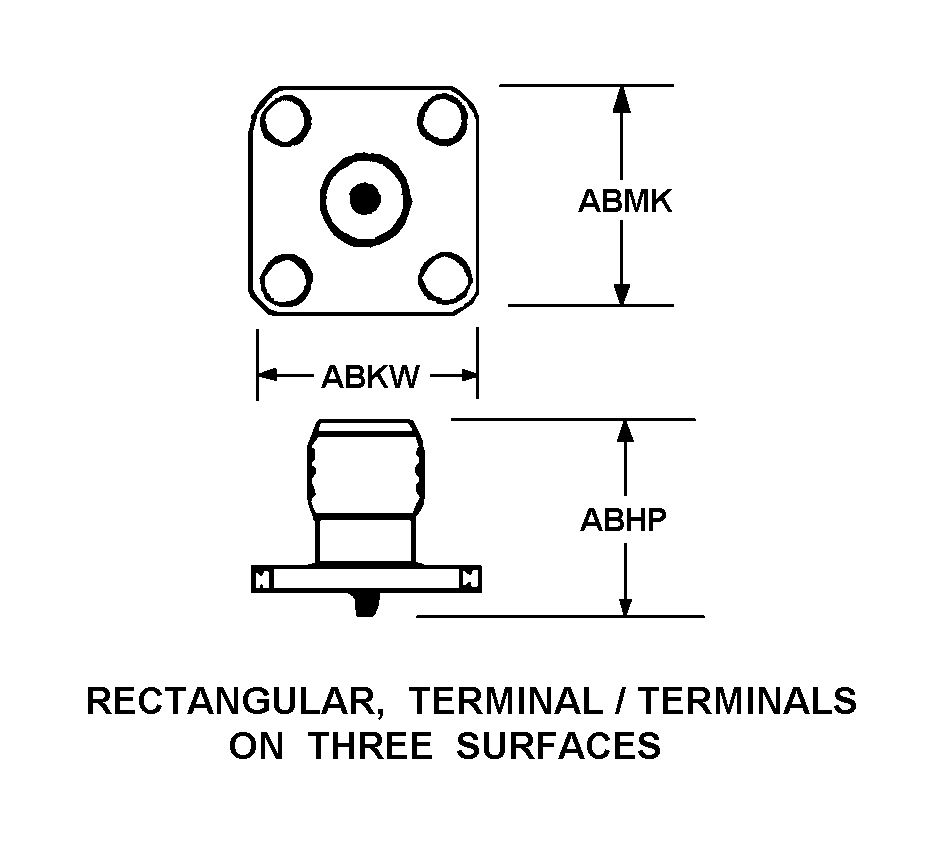

| BODY STYLE | 21B RECTANGULAR TERMINAL/TERMINALS ON THREE SURFACES |
| OVERALL LENGTH | 0.624 INCHES NOMINAL |
| OVERALL HEIGHT | 0.500 INCHES NOMINAL |
| OVERALL WIDTH | 0.500 INCHES NOMINAL |
| BODY MATERIAL | COPPER ALLOY |
| BODY SURFACE TREATMENT | NICKEL PLATED |
| TERMINAL TYPE AND QUANTITY | 1 PIN |
| CONNECTION TYPE PER FUNCTION | MALE INPUT |
| MOUNTING METHOD | FLANGE W/MOUNTING HOLE |
| MOUNTING HOLE/STUD QUANTITY | 4 |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.104 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH | 0.340 INCHES NOMINAL |
| III PRECIOUS MATERIAL | GOLD |
| III PRECIOUS MATERIAL AND LOCATION | CENTER CONTACT SURFACES GOLD |
