NSN 5985-01-237-2411 MA8438S183, MA8438-S183, MA8438S185
Product Details | RADIO FREQUENCY TRANSMISSION LINE SWITCH
5985-01-237-2411 An item specifically designed for mechanically or electronically positioning one or more radio frequency transmission line sections so as to couple it or them to other sections in a radio frequency transmission line system. The switching function may be operated by a manual actuator, an electromechanical actuator or by means of an arrangement of semiconductors and passive circuit devices. Excludes RELAY, (as modified).202593000005985000000
Part Alternates: MA8438S183, MA8438-S183, MA8438S185, MA8438-S185, MD160K005, G2744484, G274448-4 , 160K005, 8438S185, 8438-S185, 9290504, 929050-4, 5985-01-237-2411, 01-237-2411, 5985012372411, 012372411
Electrical and Electronic Equipment Components | Antennas, Waveguides, and Related Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 27 JUL 1986 | 01-237-2411 | 05298 ( SWITCH, RADIO FREQUENCY TRANSMISSION LINE ) |
Drawings & Photos | NSN 5985-01-237-2411
Cross Reference | NSN 5985-01-237-2411
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 160K005 | 32187 | HERLEY INDUSTRIES, INC. DBA HERLEY NEW ENGLAND |
| 8438-S185 | 96341 | COBHAM ELECTRONIC SYSTEMS INC. DBA COBHAM DEFENSE ELECTRONICS |
| 929050-4 | 26629 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN MISSILES AND |
| 929050-4 | 3B150 | RAYTHEON TECHNICAL SERVICES COMPANY LLC |
| 929050-4 | 49956 | RAYTHEON COMPANY DBA RAYTHEON |
| G274448-4 | 3B150 | RAYTHEON TECHNICAL SERVICES COMPANY LLC |
| G274448-4 | 49956 | RAYTHEON COMPANY DBA RAYTHEON |
| MA8438-S183 | 96341 | COBHAM ELECTRONIC SYSTEMS INC. DBA COBHAM DEFENSE ELECTRONICS |
| MA8438-S185 | 96341 | COBHAM ELECTRONIC SYSTEMS INC. DBA COBHAM DEFENSE ELECTRONICS |
| MD160K005 | 32187 | HERLEY INDUSTRIES, INC. DBA HERLEY NEW ENGLAND |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5985-01-237-2411
Technical Data | NSN 5985-01-237-2411
| Characteristic | Specifications |
|---|---|
| VOLTAGE STANDING WAVE RATIO | 1.80 SINGLE |
| INSERTION LOSS IN DECIBELS | 3.50 SINGLE |
| MINIMUM CROSSTALK RATING IN DECIBELS | 60.0 SINGLE |
| ACTUATOR OPERATING METHOD | SOLID STATE |
| SWITCH TYPE | TRANSFER |
| COUPLING POSITION QUANTITY | 2 |
| TERMINAL TYPE AND QUANTITY | 9 CONNECTOR, RECEPTACLE |
| COAXIAL CONNECTOR SERIES DESIGNATION | SMA |
| CONNECTOR END DESIGN | FEMALE |
| SWITCH OPERATION SEQUENCE | BREAKS BEFORE MAKES |
| SWITCH RETURN MECHANISM TYPE | FAIL-SAFE |

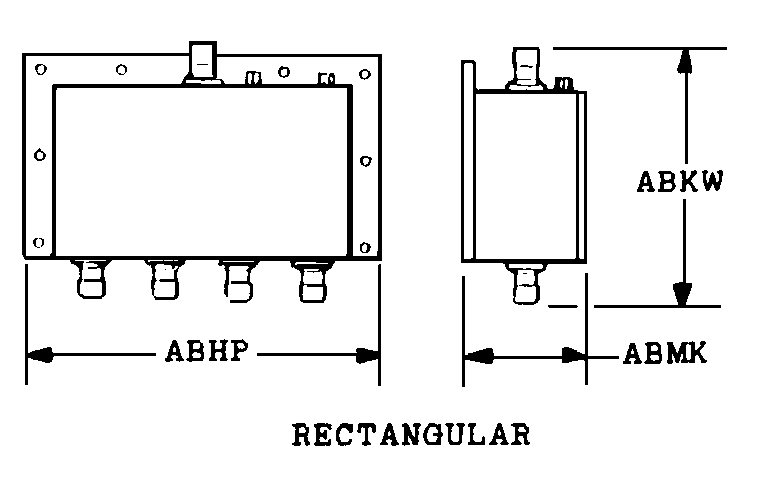

| BODY STYLE | 64B RECTANGULAR |
