NSN 5985-01-224-3674 Q6413K3, Q6-413K3, 23962331
Product Details | RADIO FREQUENCY TRANSMISSION LINE SWITCH
5985-01-224-3674 An item specifically designed for mechanically or electronically positioning one or more radio frequency transmission line sections so as to couple it or them to other sections in a radio frequency transmission line system. The switching function may be operated by a manual actuator, an electromechanical actuator or by means of an arrangement of semiconductors and passive circuit devices. Excludes RELAY, (as modified).202593000005985000000
Part Alternates: Q6413K3, Q6-413K3, 23962331, 2396233-1, 5985-01-224-3674, 01-224-3674, 5985012243674, 012243674
Electrical and Electronic Equipment Components | Antennas, Waveguides, and Related Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 15 JAN 1986 | 01-224-3674 | 05298 ( SWITCH, RADIO FREQUENCY TRANSMISSION LINE ) |
Drawings & Photos | NSN 5985-01-224-3674
Demand History | NSN 5985-01-224-3674
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5985-01-224-3674 | 2006-05-122 | 3 | DIBBS |
| 5985-01-224-3674 | 2006-02-34 | 3 | DIBBS |
| 5985-01-224-3674 | 2005-12-343 | 2 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5985-01-224-3674
Related Products | NSN 5985-01-224-3674
Technical Data | NSN 5985-01-224-3674
| Characteristic | Specifications |
|---|---|
| FREQUENCY RATING | 0.0 GIGAHERTZ MINIMUM AND 18.0 GIGAHERTZ MAXIMUM SINGLE FREQUENCY OPERATING |
| RF POWER HANDLING CAPABILITY | 50.0 WATTS AVERAGE SINGLE |
| VOLTAGE STANDING WAVE RATIO | 1.20 1ST 1.30 2ND 1.40 3RD 1.50 4TH |
| INSERTION LOSS IN DECIBELS | 0.20 1ST 0.30 2ND 0.40 3RD 0.50 4TH |
| MINIMUM CROSSTALK RATING IN DECIBELS | 60.0 1ST 70.0 2ND 80.0 3RD |
| SWITCH TYPE | NONTRANSFER |
| POLE QUANTITY | 1 |
| THROW QUANTITY | 6 |
| COUPLING POSITION QUANTITY | 6 |
| TERMINAL TYPE AND QUANTITY | 7 SOLDER STUD AND 7 RECEPTACLE, COAXIAL |
| COAXIAL CONNECTOR SERIES DESIGNATION | SMA |
| CONNECTOR END DESIGN | FEMALE |
| SWITCH OPERATION SEQUENCE | MAKES BEFORE BREAKS |

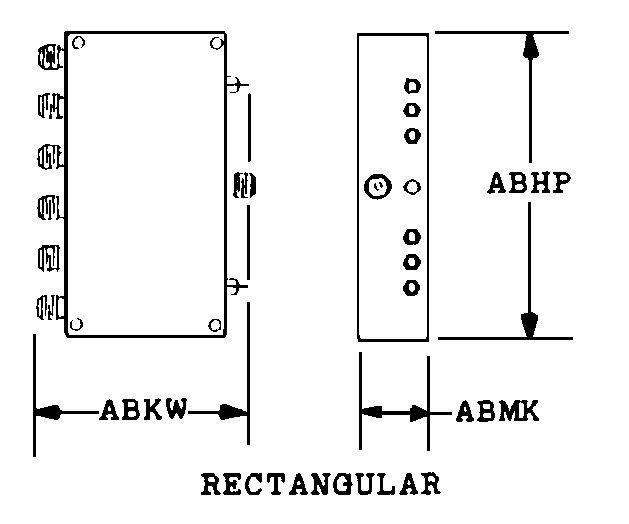

| BODY STYLE | 57B RECTANGULAR |
| OVERALL LENGTH | 2.057 INCHES NOMINAL |
| OVERALL HEIGHT | 1.750 INCHES NOMINAL |
| OVERALL WIDTH | 1.750 INCHES NOMINAL |
| MATERIAL | ALUMINUM ALLOY BODY |
| SURFACE TREATMENT | GOLD BODY ALL SURFACES |
| MOUNTING FACILITY TYPE AND QUANTITY | 1 BASE AND 2 UNTHREADED HOLE |
| UNTHREADED MOUNTING HOLE DIAMETER | 1.440 INCHES NOMINAL |
| MOUNTING FACILITY PATTERN | FOUR POSITION RECTANGULAR SINGLE MOUNTING FACILITY PATTERN |
| LONGEST HORIZONTAL DISTANCE BETWEEN MOUNTING CENTERS | 1.375 INCHES NOMINAL SINGLE MOUNTING FACILITY PATTERN |
| LONGEST VERTICAL DISTANCE BETWEEN MOUNTING CENTERS | 1.375 INCHES NOMINAL SINGLE MOUNTING FACILITY PATTERN |
| SPECIAL FEATURES | ACTUATOR OPERATING METHOD: SOLENOID |
| III OPERATING TEMP RANGE | -35.0 TO 55.0 DEG CELSIUS |
| III PRECIOUS MATERIAL | GOLD |
| III PRECIOUS MATERIAL AND LOCATION | INTERNAL SURFACES GOLD |
| III END ITEM IDENTIFICATION | OQ-209(V)2/MSM |
| (NON-CORE DATA) HORIZONTAL DISTANCE BETWEEN SHAFT AND MOUNTING HOLE CENTERLINE | 0.688 INCHES NOMINAL |
| (NON-CORE DATA) VERTICAL DISTANCE BETWEEN SHAFT AND MOUNTING HOLE CENTERLINE | 0.688 INCHES NOMINAL |
| (NON-CORE DATA) CHARACTERISTIC IMPEDANCE IN OHMS | 50.0 |
| (NON-CORE DATA) INCLOSURE TYPE | FULLY INCLOSED |
| (NON-CORE DATA) RF POWER HANDLING CAPABILITY FREQUENCY RANGE | 0.0 TO 18.0 GIGAHERTZ |
| (NON-CORE DATA) VOLTAGE STANDING WAVE RATIO FREQUENCY RANGE | 0.0 TO 3.0 GIGAHERTZ AND 3.0 TO 8.0 GIGAHERTZ AND 8.0 TO 12.4 GIGAHERTZ AND |
Restrictions/Controls & Freight Information | NSN 5985-01-224-3674
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | G | Item contains gold |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061300 | CIRCUIT BREAKER/SWITCH NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 723 | unknown |
| Originating Activity Code | TH | Defense Supply Center Columbus Columbus, OH 43215 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5985-01-224-3674
Army
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | Q | Electronics Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | A | Item requires special handling or condemnation procedures for specific reasons, such as precious metal content, high dollar value, critical material, or hazardous materiel. Refer to appropriate manuals or directives for specific instructions. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | EH | SX:ELECTRONIC COMPONENTS |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
