Product Details | WAVEGUIDE ASSEMBLY
5985-01-175-4646 An item consisting of one or more definite lengths of straight or formed, flexible or rigid, prefabricated hollow tubing of conductive material. The tubing has a predetermined cross section and is designed to guide or conduct high frequency electromagnetic energy through its interior. One or more ends are terminated. May include common mounting of a SWITCH, WAVE GUIDE, a DUMMY LOAD, ELECTRICAL and other components such as waveguide section, cable terminal chamber and the like. Excludes COUPLER, ROTARY, RADIO FREQUENCY; COUPLER, DIRECTIONAL; ADAPTER, WAVEGUIDE; and TUNER, WAVEGUIDE.
Part Alternates: 84838724, 848387-24, 5985-01-175-4646, 01-175-4646, 5985011754646, 011754646
Electrical and Electronic Equipment Components | Antennas, Waveguides, and Related Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 APR 1984 | 01-175-4646 | 00305 ( WAVEGUIDE ASSEMBLY ) |
Drawings & Photos | NSN 5985-01-175-4646
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5985-01-175-4646
Technical Data | NSN 5985-01-175-4646
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | B1 STRAIGHT TYPE |
| WAVEGUIDE LENGTH | 24.000 INCHES NOMINAL |
| CROSS-SECTIONAL SHAPE STYLE | A1 INTERNAL, RECTANGULAR EXTERNAL, RECTANGULAR |
| FLEXIBILITY | RIGID SINGLE TUBING SEGMENT |
| TUBING TWIST TYPE | STRAIGHT TWIST SINGLE TUBING SEGMENT |
| TUBING TWIST ANGLE IN DEG | 90.0 SINGLE TUBING SEGMENT |
| FLANGE QUANTITY | 2 |

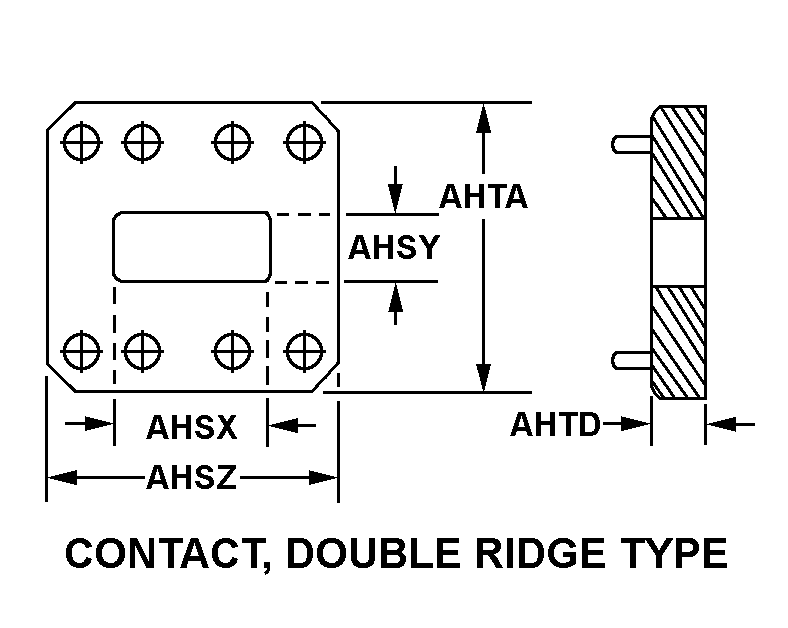

| FLANGE STYLE | C22B CONTACT, DOUBLE RIDGE TYPE FIRST FLANGE |
| FLANGE INSIDE WIDTH | 0.938 INCHES NOMINAL FIRST FLANGE |
| FLANGE INSIDE HEIGHT | 0.281 INCHES NOMINAL FIRST FLANGE |
