NSN 5985-01-164-0348 SR6CD, SR-6C-D, 01-164-0348
Product Details | RADIO FREQUENCY TRANSMISSION LINE SWITCH
5985-01-164-0348 An item specifically designed for mechanically or electronically positioning one or more radio frequency transmission line sections so as to couple it or them to other sections in a radio frequency transmission line system. The switching function may be operated by a manual actuator, an electromechanical actuator or by means of an arrangement of semiconductors and passive circuit devices. Excludes RELAY, (as modified).202593000005985000000
Part Alternates: SR6CD, SR-6C-D, 5985-01-164-0348, 01-164-0348, 5985011640348, 011640348
Electrical and Electronic Equipment Components | Antennas, Waveguides, and Related Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 12 OCT 1983 | 01-164-0348 | 05298 ( SWITCH, RADIO FREQUENCY TRANSMISSION LINE ) |
Drawings & Photos | NSN 5985-01-164-0348
Demand History | NSN 5985-01-164-0348
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| SR-6C-D | 2023-11-334 | 8 | DIBBS |
| SR-6C-D | 2023-08-229 | 2 | DIBBS |
| SR-6C-D | 2023-07-192 | 4 | DIBBS |
| SR-6C-D | 2022-12-340 | 2 | DIBBS |
| 5985-01-164-0348 | 2018-03-67 | 3 | DIBBS |
| 5985-01-164-0348 | 2018-02-32 | 2 | DIBBS |
| 5985-01-164-0348 | 2017-11-309 | 2 | DIBBS |
| 5985-01-164-0348 | 2016-11-312 | 3 | DIBBS |
| 5985-01-164-0348 | 2016-10-304 | 3 | DIBBS |
| 5985-01-164-0348 | 2016-10-293 | 3 | DIBBS |
| 5985-01-164-0348 | 2016-05-130 | 2 | DIBBS |
| 5985-01-164-0348 | 2016-04-118 | 2 | DIBBS |
| 5985-01-164-0348 | 2016-04-101 | 6 | DIBBS |
| 5985-01-164-0348 | 2016-03-66 | 1 | DIBBS |
| 5985-01-164-0348 | 2010-03-71 | 4 | DIBBS |
| 5985-01-164-0348 | 2010-02-43 | 4 | DIBBS |
| 5985-01-164-0348 | 2008-08-243 | 1 | DIBBS |
| 5985-01-164-0348 | 2007-03-63 | 4 | DIBBS |
Cross Reference | NSN 5985-01-164-0348
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| SR-6C-D | 12598 | R L C ELECTRONICS, INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5985-01-164-0348
Related Products | NSN 5985-01-164-0348
Technical Data | NSN 5985-01-164-0348
| Characteristic | Specifications |
|---|---|
| FREQUENCY RATING | 0.0 GIGAHERTZ MINIMUM AND 4.0 GIGAHERTZ MAXIMUM 1ST FREQUENCY VOLTAGE STANDING WAVE RATIO 4.0 GIGAHERTZ MINIMUM AND 12.4 GIGAHERTZ MAXIMUM 2ND FREQUENCY VOLTAGE STANDING WAVE RATIO 12.4 GIGAHERTZ MINIMUM AND 18.0 GIGAHERTZ MAXIMUM 3RD FREQUENCY VOLTAGE STANDING WAVE RATIO |
| ACTUATOR CURRENT TYPE AND RATING IN AMPS | 0.15 DC NOMINAL |
| ACTUATOR VOLTAGE IN VOLTS | 28.0 NOMINAL |
| SWITCH TYPE | NONTRANSFER |
| POLE QUANTITY | 1 |
| THROW QUANTITY | 1 |
| COUPLING POSITION QUANTITY | 6 |
| TERMINAL TYPE AND QUANTITY | 6 TAB, SOLDER LUG |
| COAXIAL CONNECTOR SERIES DESIGNATION | SMA |
| CONNECTOR END DESIGN | FEMALE |
| SWITCH OPERATION SEQUENCE | BREAKS BEFORE MAKES |
| SWITCHING TIME | 15.0 MILLISECONDS |
| SWITCH RETURN MECHANISM TYPE | FAIL-SAFE |

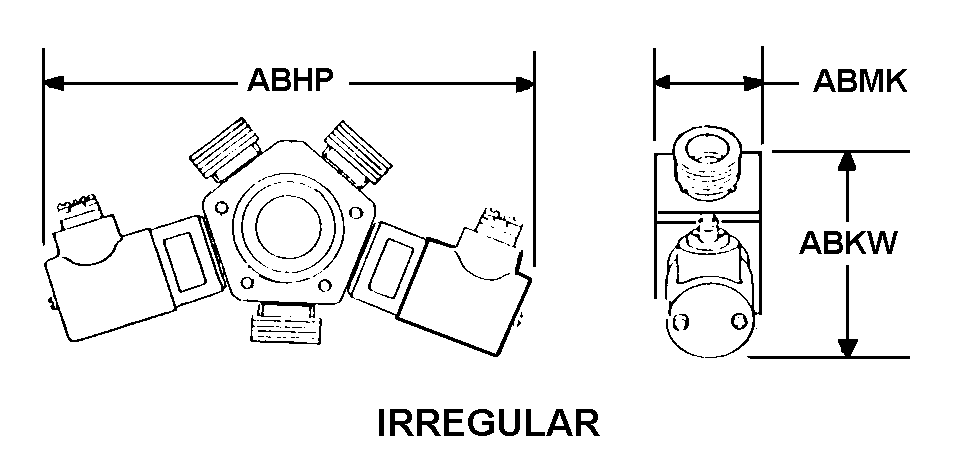

| BODY STYLE | 10B IRREGULAR |
| OVERALL LENGTH | 2.050 INCHES NOMINAL |
| OVERALL HEIGHT | 1.750 INCHES NOMINAL |
| OVERALL WIDTH | 1.750 INCHES NOMINAL |
