Product Details | FIXED ATTENUATOR
5985-01-158-0053 A device for reducing the strength of an alternating current signal by a fixed or predetermined amount, without causing appreciable signal distortion, by maintaining correct impedance match.
Part Alternates: 312404, 70353, 7177544, 717754-4, 5985-01-158-0053, 01-158-0053, 5985011580053, 011580053
Electrical and Electronic Equipment Components | Antennas, Waveguides, and Related Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 14 JUL 1983 | 01-158-0053 | 14224 ( ATTENUATOR, FIXED ) |
Drawings & Photos | NSN 5985-01-158-0053
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5985-01-158-0053
Related Products | NSN 5985-01-158-0053
Technical Data | NSN 5985-01-158-0053
| Characteristic | Specifications |
|---|---|
| APPLICATION DESIGN | TRANSMISSION LINE |
| INPUT IMPEDANCE RATING IN OHMS | 50.0 |
| OUTPUT IMPEDANCE RATING IN OHMS | 50.0 |
| FREQUENCY RANGE | 0.000 HERTZ MINIMUM AND 1.000 GIGAHERTZ MAXIMUM |
| VOLTAGE STANDING WAVE RATIO | 1.35 |
| VOLTAGE STANDING WAVE RATIO FREQUENCY RANGE | 0.0 TO 1.0 GIGAHERTZ |
| RF SIGNAL ATTENUATION IN DECIBELS | 4.0 |
| ATTENUATION ACCURACY IN DECIBELS | -0.10 TO 0.10 |
| POWER RATING | 100.0 MILLIWATTS PEAK |
| OPERATING TEMP RANGE | -55.0 TO 71.0 DEG CELSIUS |
| TEMPERATURE SENSITIVITY ATTENUATION IN DECIBELS | NOT RATED |

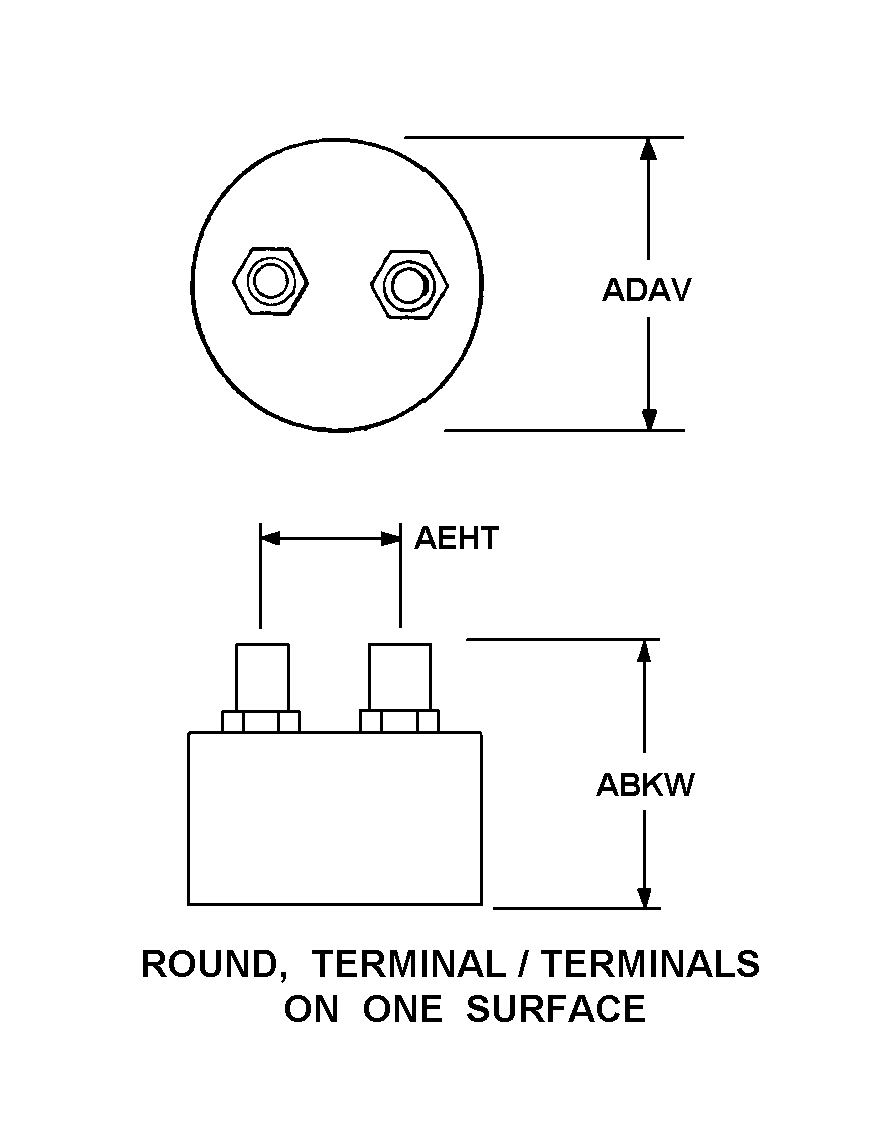

| BODY STYLE | 4B ROUND, TERMINAL/TERMINALS ON ONE SURFACE |
| OVERALL HEIGHT | 0.740 INCHES MINIMUM AND 0.760 INCHES MAXIMUM |
| OVERALL DIAMETER | 0.350 INCHES MINIMUM AND 0.370 INCHES MAXIMUM |
| CENTER TO CENTER DISTANCE BETWEEN TERMINALS | 0.100 INCHES NOMINAL |
| BODY MATERIAL | ALUMINUM ALLOY |
| BODY SURFACE TREATMENT | CHROMATE |
| TERMINAL TYPE AND QUANTITY | 3 PIN |
| MOUNTING METHOD | PLUG-IN |
| III UNPACKAGED UNIT WEIGHT | 0.003 POUNDS |
| III END ITEM IDENTIFICATION | RADAR SET,AN/SPS-52C |
| III FSC APPLICATION DATA | ANTENNAS,WAVEGUIDES,AND RELATED EQUIPMENT |
