NSN 5985-01-152-8387 DBG61309, DBG-613-0-9, DBG6141
Product Details | WAVEGUIDE SWITCH
5985-01-152-8387 An item specifically designed for mechanically or electronically positioning one or more waveguide sections so as to couple it or them to other sections in a waveguide system. The switching function may be operated by a manual actuator, an electromechanical actuator or by means of an arrangement of semiconductors and passive circuit devices. Excludes RELAY, (as modified).
Part Alternates: DBG61309, DBG-613-0-9, DBG6141, DBG-614-1, G330177S1, RMEU0170, RME-U-0170, XWM5003, 641A43, 641-A43, 5985-01-152-8387, 01-152-8387, 5985011528387, 011528387
Electrical and Electronic Equipment Components | Antennas, Waveguides, and Related Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 09 MAY 1983 | 01-152-8387 | 05118 ( SWITCH, WAVEGUIDE ) |
Drawings & Photos | NSN 5985-01-152-8387
Demand History | NSN 5985-01-152-8387
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5985-01-152-8387 | 2009-04-23 | 3 | DIBBS |
| 5985-01-152-8387 | 2009-04-08 | 3 | DIBBS |
Cross Reference | NSN 5985-01-152-8387
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 641-A43 | 00929 | MICROLAB/FXR |
| DBG-613-0-9 | 01220 | SYSTRON-DONNER CORP MICROWAVE/INSTRUMENT DIV |
| DBG-614-1 | 01220 | SYSTRON-DONNER CORP MICROWAVE/INSTRUMENT DIV |
| G330177S1 | 24930 | EXELIS INC. DBA RADAR, RECONNAISSANCE & UNDERSEA |
| RME-U-0170 | 0S2B1 | RME FILTERS INC |
| XWM5003 | 25656 | DBP MICROWAVE INC. DBA |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5985-01-152-8387
Related Products | NSN 5985-01-152-8387
Technical Data | NSN 5985-01-152-8387
| Characteristic | Specifications |
|---|---|
| FREQUENCY RATING | 8.4 GIGAHERTZ MINIMUM AND 12.4 GIGAHERTZ MAXIMUM SINGLE FREQUENCY OPERATING 8.4 GIGAHERTZ MINIMUM AND 12.4 GIGAHERTZ MAXIMUM SINGLE FREQUENCY RF POWER HANDLING 8.4 GIGAHERTZ MINIMUM AND 12.4 GIGAHERTZ MAXIMUM SINGLE FREQUENCY VOLTAGE STANDING WAVE RATIO 8.4 GIGAHERTZ MINIMUM AND 12.4 GIGAHERTZ MAXIMUM SINGLE FREQUENCY INSERTION LOSS REFERENCE 8.4 GIGAHERTZ MINIMUM AND 12.4 GIGAHERTZ MAXIMUM SINGLE FREQUENCY CROSSTALK REFERENCE |
| RF POWER HANDLING CAPABILITY | 400.0 WATTS AVERAGE 1ST 200.0 KILOWATTS PEAK 2ND |
| VOLTAGE STANDING WAVE RATIO | 1.10 SINGLE |
| INSERTION LOSS IN DECIBELS | 0.30 SINGLE |
| MINIMUM CROSSTALK RATING IN DECIBELS | 50.0 SINGLE |
| ACTUATOR OPERATING METHOD | MANUAL |
| SWITCH TYPE | NONTRANSFER |
| POLE QUANTITY | 1 |
| THROW QUANTITY | 2 |
| COUPLING POSITION QUANTITY | 3 |
| TERMINAL TYPE AND QUANTITY | 6 TAB, SOLDER LUG AND 3 RECTANGULAR FLANGE |
| SWITCHING TIME | 3.0 MILLISECONDS |
| WAVEGUIDE FLANGE TYPE | CHOKE |
| FLANGE CONNECTING FACILITY AND QUANTITY | 4 THREADED HOLE |

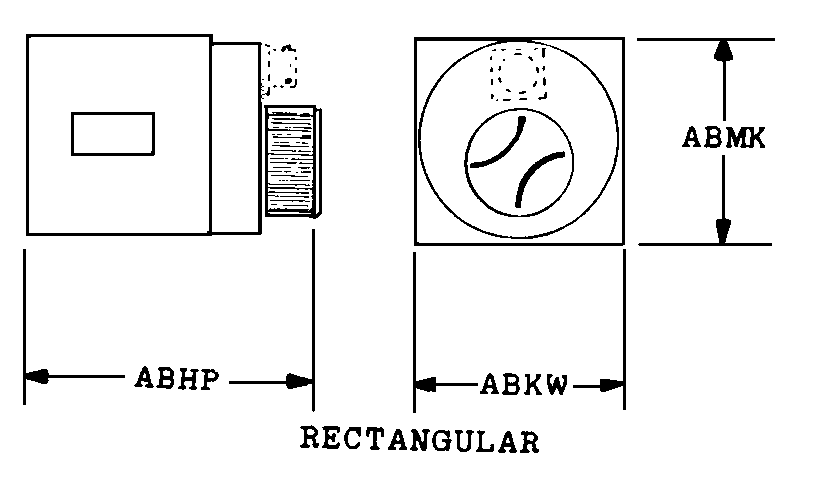

| BODY STYLE | 15C RECTANGULAR |
| OVERALL LENGTH | 3.560 INCHES NOMINAL |
| OVERALL HEIGHT | 2.000 INCHES NOMINAL |
| OVERALL WIDTH | 2.000 INCHES NOMINAL |
| MATERIAL | ALUMINUM BODY ALUMINUM FLANGE(S) |
| SURFACE TREATMENT | CHROMATE AND ENAMEL BODY OUTSIDE SURFACES CHROMATE AND ENAMEL FLANGE(S) OUTSIDE SURFACES |
| THREAD SERIES DESIGNATOR | UNC FLANGE CONNECTION FACILITY HOLE UNC MOUNTING FACILITY HOLE |
| NOMINAL THREAD SIZE | 0.164 INCHES FLANGE CONNECTION FACILITY HOLE 0.164 INCHES MOUNTING FACILITY HOLE |
| III END ITEM IDENTIFICATION | T-1432/TPN-22 |
Restrictions/Controls & Freight Information | NSN 5985-01-152-8387
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061300 | CIRCUIT BREAKER/SWITCH NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5985-01-152-8387
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 3B | Navy-owned stocks of field level repairable DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Reparability | D | Field Level Reparables |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
