NSN 5985-01-150-3644 G3301661, G330166-1 , 100C061126
Product Details | RADIO FREQUENCY TRANSMISSION LINE SWITCH
5985-01-150-3644 An item specifically designed for mechanically or electronically positioning one or more radio frequency transmission line sections so as to couple it or them to other sections in a radio frequency transmission line system. The switching function may be operated by a manual actuator, an electromechanical actuator or by means of an arrangement of semiconductors and passive circuit devices. Excludes RELAY, (as modified).202593000005985000000
Part Alternates: G3301661, G330166-1 , 100C061126, 100C0611-26, 5985-01-150-3644, 01-150-3644, 5985011503644, 011503644
Electrical and Electronic Equipment Components | Antennas, Waveguides, and Related Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 04 APR 1983 | 01-150-3644 | 05298 ( SWITCH, RADIO FREQUENCY TRANSMISSION LINE ) |
Drawings & Photos | NSN 5985-01-150-3644
Demand History | NSN 5985-01-150-3644
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 100C0611-26 | 2019-03-66 | 1 | DIBBS |
| G330166-1 | 2019-03-66 | 1 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5985-01-150-3644
Technical Data | NSN 5985-01-150-3644
| Characteristic | Specifications |
|---|---|
| FREQUENCY RATING | 0.0 MEGAHERTZ MINIMUM AND 450.0 MEGAHERTZ MAXIMUM SINGLE FREQUENCY OPERATING |
| VOLTAGE STANDING WAVE RATIO | 1.40 SINGLE |
| INSERTION LOSS IN DECIBELS | 0.60 SINGLE |
| MINIMUM CROSSTALK RATING IN DECIBELS | 50.0 SINGLE |
| ACTUATOR OPERATING METHOD | RELAY |
| SWITCH TYPE | NONTRANSFER |
| POLE QUANTITY | 1 |
| THROW QUANTITY | 2 |
| COUPLING POSITION QUANTITY | 3 |
| TERMINAL TYPE AND QUANTITY | 3 TAB, SOLDER LUG AND 3 RECEPTACLE, COAXIAL |
| COAXIAL CONNECTOR SERIES DESIGNATION | SMA |
| CONNECTOR END DESIGN | FEMALE |
| SWITCH OPERATION SEQUENCE | BREAKS BEFORE MAKES |
| SWITCHING TIME | 5.0 MILLISECONDS |
| SWITCH RETURN MECHANISM TYPE | LATCHING |

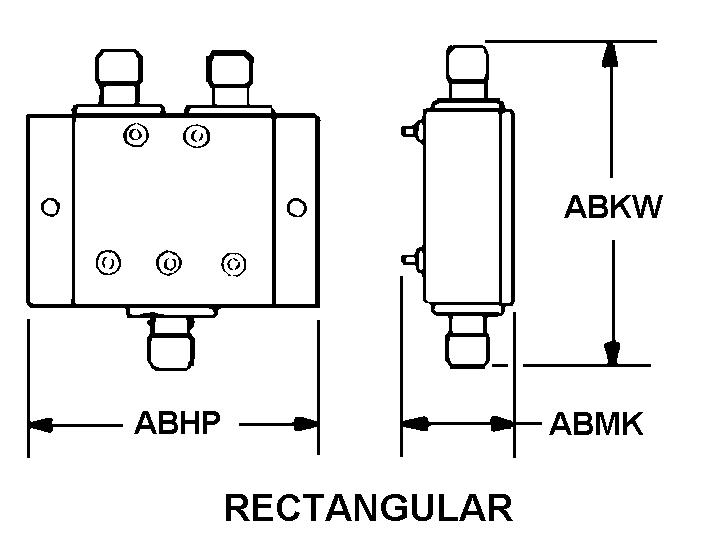

| BODY STYLE | 66B RECTANGULAR |
| OVERALL LENGTH | 1.500 INCHES NOMINAL |
| OVERALL HEIGHT | 2.060 INCHES MAXIMUM |
| OVERALL WIDTH | 0.625 INCHES NOMINAL |
