Product Details | WAVEGUIDE SEAL
5985-01-136-0166 An item or assembly designed to be fitted into or external to the end of a waveguide, in order to prevent the entrance of moisture or other foreign matter, without appreciably attenuating radio frequencies. May or may not be pressure proof.
Part Alternates: 034159, 337778, 5985-01-136-0166, 01-136-0166, 5985011360166, 011360166
Electrical and Electronic Equipment Components | Antennas, Waveguides, and Related Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 03 AUG 1982 | 01-136-0166 | 02477 ( SEAL, WAVEGUIDE ) |
Drawings & Photos | NSN 5985-01-136-0166
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5985-01-136-0166
Related Products | NSN 5985-01-136-0166
Technical Data | NSN 5985-01-136-0166
| Characteristic | Specifications |
|---|---|

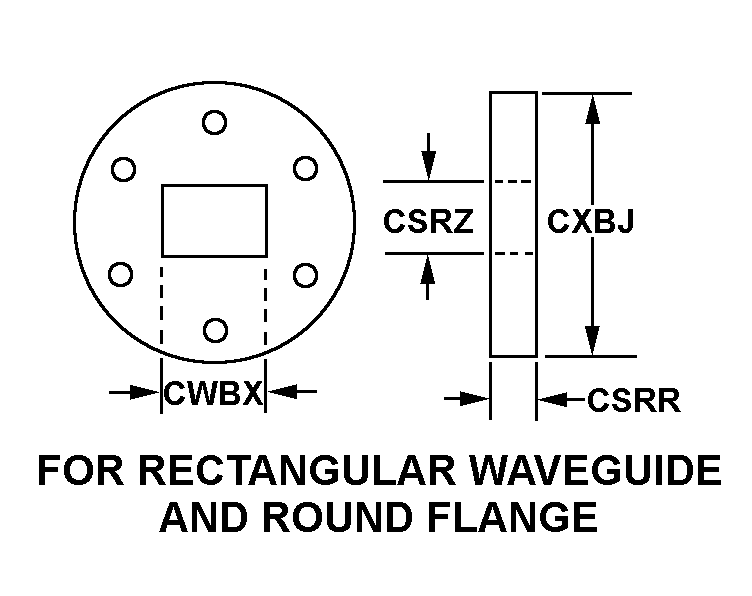

| STYLE DESIGNATOR | G3 FOR RECTANGULAR WAVEGUIDE AND ROUND FLANGE |
| SEAL THICKNESS | 0.119 INCHES NOMINAL |
| SEAL INSIDE HEIGHT | 1.330 INCHES NOMINAL |
| SEAL INSIDE WIDTH | 2.330 INCHES NOMINAL |
| SEAL OUTSIDE DIAMETER | 3.625 INCHES NOMINAL |
| MATERIAL | ALUMINUM ALLOY 6061 SINGLE SEAL |
| III END ITEM IDENTIFICATION | AN/FPS-77(V)RADAR SET |
| MANUFACTURERS CODE | 83259 |
| DESIGN CONTROL REFERENCE | 034159 |
