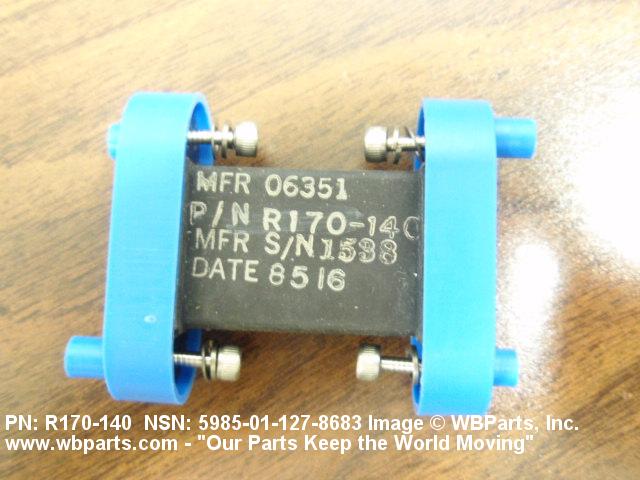

Product Details | WAVEGUIDE ASSEMBLY
5985-01-127-8683 An item consisting of one or more definite lengths of straight or formed, flexible or rigid, prefabricated hollow tubing of conductive material. The tubing has a predetermined cross section and is designed to guide or conduct high frequency electromagnetic energy through its interior. One or more ends are terminated. May include common mounting of a SWITCH, WAVE GUIDE, a DUMMY LOAD, ELECTRICAL and other components such as waveguide section, cable terminal chamber and the like. Excludes COUPLER, ROTARY, RADIO FREQUENCY; COUPLER, DIRECTIONAL; ADAPTER, WAVEGUIDE; and TUNER, WAVEGUIDE.
Part Alternates: R170140, R170-140, 1708245, 170-8245, 5985-01-127-8683, 01-127-8683, 5985011278683, 011278683
Electrical and Electronic Equipment Components | Antennas, Waveguides, and Related Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 10 MAR 1982 | 01-127-8683 | 00305 ( WAVEGUIDE ASSEMBLY ) |
Drawings & Photos | NSN 5985-01-127-8683
Demand History | NSN 5985-01-127-8683
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5985-01-127-8683 | 2016-02-52 | 9 | DIBBS |
| 5985-01-127-8683 | 2015-07-200 | 5 | DIBBS |
| 5985-01-127-8683 | 2014-08-217 | 5 | DIBBS |
| 5985-01-127-8683 | 2013-09-266 | 2 | DIBBS |
| 5985-01-127-8683 | 2013-06-160 | 2 | DIBBS |
| 5985-01-127-8683 | 2013-06-156 | 3 | DIBBS |
| 5985-01-127-8683 | 2013-05-143 | 2 | DIBBS |
| 5985-01-127-8683 | 2013-05-128 | 2 | DIBBS |
| 5985-01-127-8683 | 2013-02-34 | 4 | DIBBS |
| 5985-01-127-8683 | 2012-02-35 | 1 | DIBBS |
| 5985-01-127-8683 | 2011-07-182 | 1 | DIBBS |
| 5985-01-127-8683 | 2010-10-301 | 1 | Spain |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5985-01-127-8683
Technical Data | NSN 5985-01-127-8683
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | B1 STRAIGHT TYPE |
| WAVEGUIDE LENGTH | 2.000 INCHES NOMINAL |
| CROSS-SECTIONAL SHAPE STYLE | A2 INTERNAL, RECTANGULAR DOUBLE RIDGED EXTERNAL, RECTANGULAR |
| FLEXIBILITY | FLEXIBLE SINGLE TUBING SEGMENT |
| MATERIAL | ALUMINUM ALLOY 6061 SINGLE FLANGE |
| FLANGE QUANTITY | 2 |

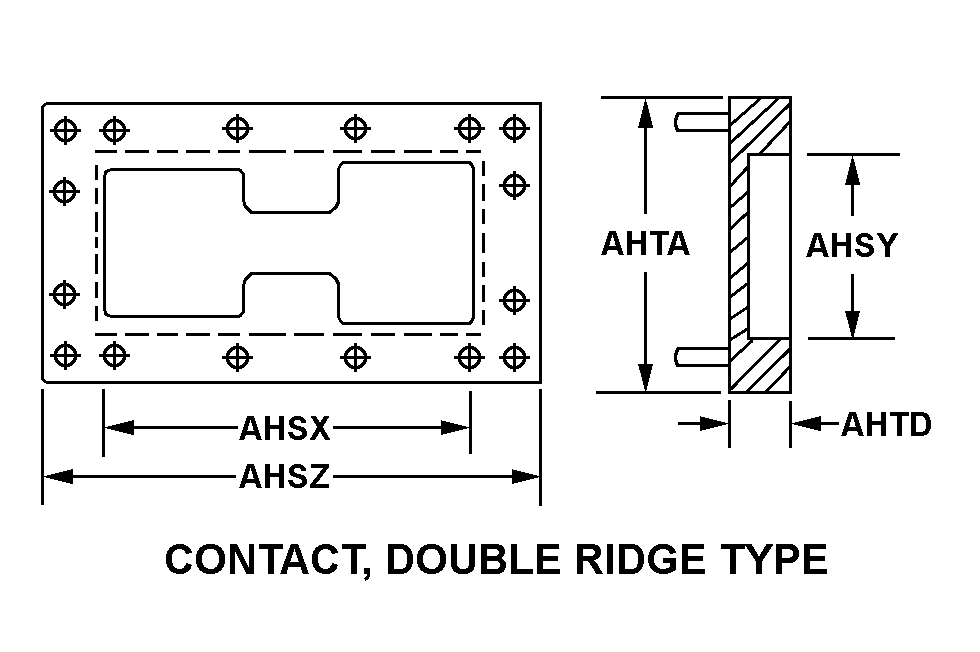

| FLANGE STYLE | C15 CONTACT, DOUBLE RIDGE TYPE ALL FLANGES |
