NSN 5985-01-127-7714 R10429, R10-429, 103825
Product Details | WAVEGUIDE ASSEMBLY
5985-01-127-7714 An item consisting of one or more definite lengths of straight or formed, flexible or rigid, prefabricated hollow tubing of conductive material. The tubing has a predetermined cross section and is designed to guide or conduct high frequency electromagnetic energy through its interior. One or more ends are terminated. May include common mounting of a SWITCH, WAVE GUIDE, a DUMMY LOAD, ELECTRICAL and other components such as waveguide section, cable terminal chamber and the like. Excludes COUPLER, ROTARY, RADIO FREQUENCY; COUPLER, DIRECTIONAL; ADAPTER, WAVEGUIDE; and TUNER, WAVEGUIDE.
Part Alternates: R10429, R10-429, 103825, 10-3825, 5985-01-127-7714, 01-127-7714, 5985011277714, 011277714
Electrical and Electronic Equipment Components | Antennas, Waveguides, and Related Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 07 MAR 1982 | 01-127-7714 | 00305 ( WAVEGUIDE ASSEMBLY ) |
Drawings & Photos | NSN 5985-01-127-7714
Demand History | NSN 5985-01-127-7714
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5985-01-127-7714 | 2017-08-233 | 1 | DIBBS |
| 5985-01-127-7714 | 2006-04-110 | 1 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5985-01-127-7714
Technical Data | NSN 5985-01-127-7714
| Characteristic | Specifications |
|---|---|

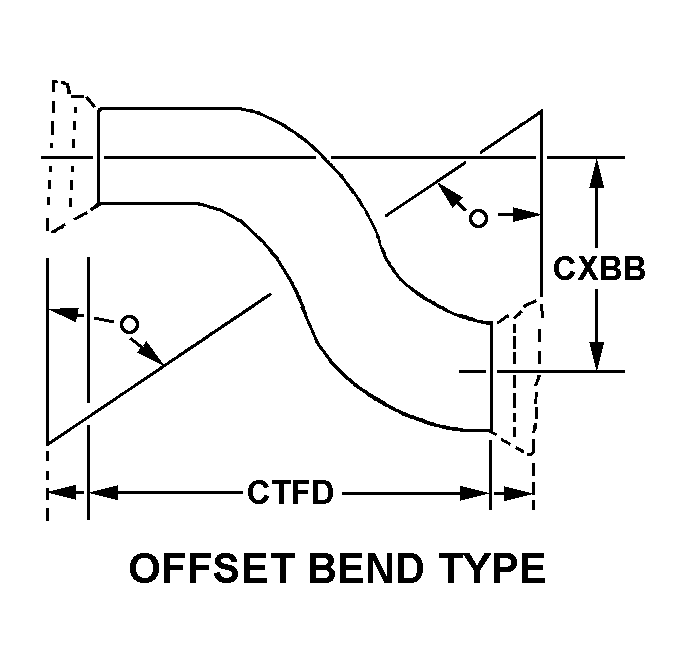

| STYLE DESIGNATOR | B4 OFFSET BEND TYPE |
| WAVEGUIDE LENGTH | 1.706 FEET NOMINAL |
| WAVEGUIDE CENTER TO CENTER DISTANCE | 9.940 INCHES NOMINAL |

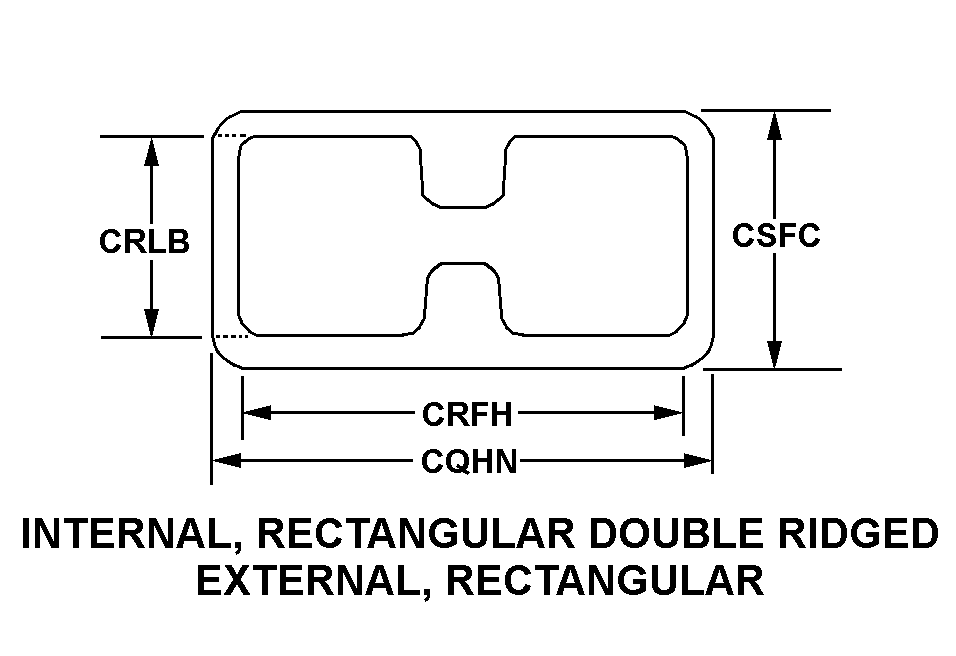

| CROSS-SECTIONAL SHAPE STYLE | A2 INTERNAL, RECTANGULAR DOUBLE RIDGED EXTERNAL, RECTANGULAR |
| FLEXIBILITY | RIGID SINGLE TUBING SEGMENT |
| TUBING WALL CONSTRUCTION STYLE | J1 SEAMLESS SINGLE TUBING SEGMENT |
| TUBING TWIST TYPE | STRAIGHT TWIST FIRST TUBING SEGMENT |
| MATERIAL | ALUMINUM ALLOY 6063 SINGLE TUBING SEGMENT AND FLANGE |
| SURFACE TREATMENT | PAINT SINGLE TUBING SEGMENT AND FLANGE OUTSIDE SURFACES |
| (NON-CORE DATA) SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | FED-STD-595 FED STD SINGLE TREATMENT RESPONSE SINGLE TUBING SEGMENT AND FLANGE OUTSIDE SURFACES |
| FLANGE QUANTITY | 2 |
| SPECIAL FEATURES | EIGHT BENDS O/A 90.0 DEG E PLANE,90.0 DEG E PLANE,90.0 DEG H PLANE,88.0 DEG E PLANE,90.0 DEG E PLANE,90.0 DEG H PLANE,20.0 DEG E PLANE,20.0 DEG E PLANE |
| III FSC APPLICATION DATA | ANTENNAS,WAVEGUIDES,AND RELATED EQUIPMENT |
Restrictions/Controls & Freight Information | NSN 5985-01-127-7714
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 063520 | WAVEGUIDE IN BOXES/CRATES |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 723 | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5985-01-127-7714
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
