Product Details | RADIO FREQUENCY TRANSMISSION LINE SWITCH
5985-01-112-8760 An item specifically designed for mechanically or electronically positioning one or more radio frequency transmission line sections so as to couple it or them to other sections in a radio frequency transmission line system. The switching function may be operated by a manual actuator, an electromechanical actuator or by means of an arrangement of semiconductors and passive circuit devices. Excludes RELAY, (as modified).202593000005985000000
Part Alternates: 324101, 324-101, 4100560010, 410-0560-010, 6231473001, 623-1473-001, 5985-01-112-8760, 01-112-8760, 5985011128760, 011128760
Electrical and Electronic Equipment Components | Antennas, Waveguides, and Related Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 12 MAY 1981 | 01-112-8760 | 05298 ( SWITCH, RADIO FREQUENCY TRANSMISSION LINE ) |
Drawings & Photos | NSN 5985-01-112-8760
Cross Reference | NSN 5985-01-112-8760
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5985-01-112-8760
Related Products | NSN 5985-01-112-8760
Technical Data | NSN 5985-01-112-8760
| Characteristic | Specifications |
|---|---|
| RF MAXIMUM VOLTAGE RATING | 20.0 VOLTS PEAK |
| SWITCH TYPE | NONTRANSFER |
| POLE QUANTITY | 1 |
| THROW QUANTITY | 2 |
| COUPLING POSITION QUANTITY | 2 |
| TERMINAL TYPE AND QUANTITY | 2 CONNECTOR, RECEPTACLE |
| COAXIAL CONNECTOR SERIES DESIGNATION | N |
| CONNECTOR END DESIGN | FEMALE AND MALE |
| SWITCH OPERATION SEQUENCE | BREAKS BEFORE MAKES |

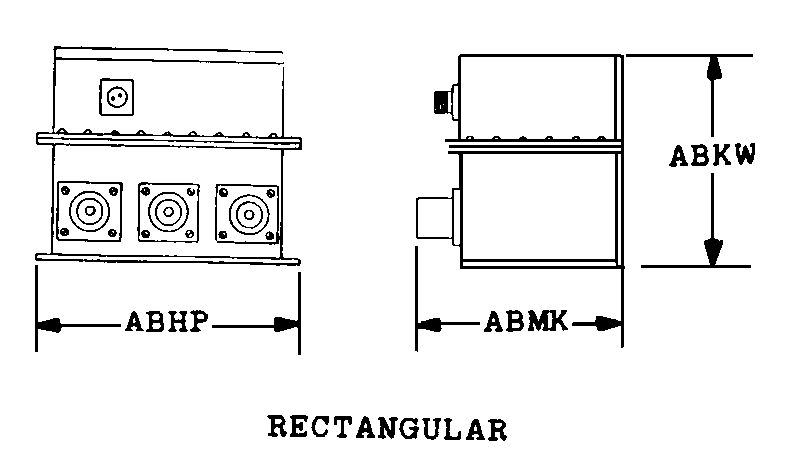

| BODY STYLE | 39B RECTANGULAR |
| OVERALL LENGTH | 2.700 INCHES NOMINAL |
| OVERALL HEIGHT | 2.362 INCHES NOMINAL |
| OVERALL WIDTH | 1.325 INCHES NOMINAL |
| III OPERATING TEMP RANGE | -54.0 TO 110.0 DEG CELSIUS |
