NSN 5985-01-112-4470 A25A924501123, A25A924-501-123, 01-112-4470
Product Details | WAVEGUIDE ASSEMBLY
5985-01-112-4470 An item consisting of one or more definite lengths of straight or formed, flexible or rigid, prefabricated hollow tubing of conductive material. The tubing has a predetermined cross section and is designed to guide or conduct high frequency electromagnetic energy through its interior. One or more ends are terminated. May include common mounting of a SWITCH, WAVE GUIDE, a DUMMY LOAD, ELECTRICAL and other components such as waveguide section, cable terminal chamber and the like. Excludes COUPLER, ROTARY, RADIO FREQUENCY; COUPLER, DIRECTIONAL; ADAPTER, WAVEGUIDE; and TUNER, WAVEGUIDE.
Part Alternates: A25A924501123, A25A924-501-123, 5985-01-112-4470, 01-112-4470, 5985011124470, 011124470
Electrical and Electronic Equipment Components | Antennas, Waveguides, and Related Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01-112-4470 | 00305 ( WAVEGUIDE ASSEMBLY ) |
Drawings & Photos | NSN 5985-01-112-4470
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5985-01-112-4470
Technical Data | NSN 5985-01-112-4470
| Characteristic | Specifications |
|---|---|

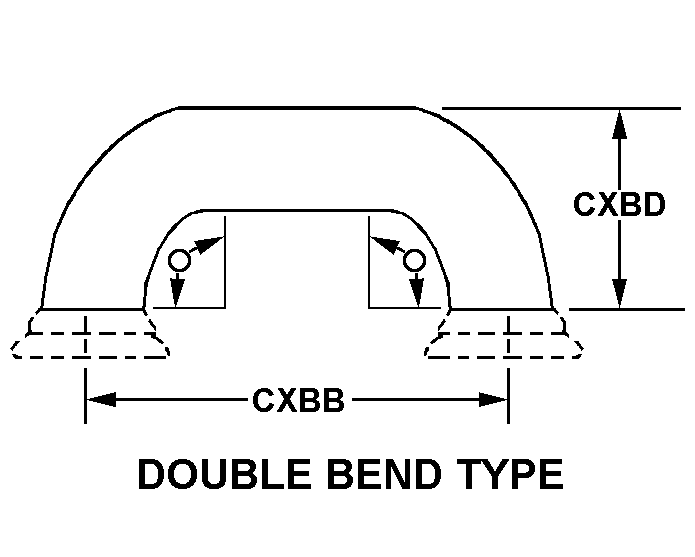

| STYLE DESIGNATOR | B5 DOUBLE BEND TYPE |
| WAVEGUIDE CENTER TO CENTER DISTANCE | 2.312 INCHES NOMINAL |
| WAVEGUIDE HEIGHT | 3.000 INCHES NOMINAL |
| CROSS-SECTIONAL SHAPE STYLE | A1 INTERNAL, RECTANGULAR EXTERNAL, RECTANGULAR |
| WAVEGUIDE OUTSIDE WIDTH | 0.996 INCHES MINIMUM AND 1.004 INCHES MAXIMUM |
| WAVEGUIDE INSIDE WIDTH | 0.496 INCHES MINIMUM AND 0.504 INCHES MAXIMUM |
| WAVEGUIDE INSIDE HEIGHT | 0.396 INCHES MINIMUM AND 0.404 INCHES MAXIMUM |
| WAVEGUIDE OUTSIDE HEIGHT | 0.896 INCHES MINIMUM AND 0.904 INCHES MAXIMUM |
| FLEXIBILITY | RIGID ALL TUBING SEGMENT |
| TUBING WALL CONSTRUCTION STYLE | J1 SEAMLESS ALL TUBING SEGMENT |
| MATERIAL | ALUMINUM ALLOY ALL TUBING SEGMENT AND FLANGE |
| SURFACE TREATMENT | ENAMEL AND PRIMER ALL TUBING SEGMENT OUTSIDE SURFACES |
| FLANGE QUANTITY | 2 |
| FLANGE STYLE | C28 COVER TYPE ALL FLANGES |
| FLANGE INSIDE WIDTH | 1.003 INCHES MINIMUM AND 1.006 INCHES MAXIMUM ALL FLANGES |
| FLANGE INSIDE HEIGHT | 0.503 INCHES MINIMUM AND 0.506 INCHES MAXIMUM ALL FLANGES |
| FLANGE OUTSIDE WIDTH | 1.610 INCHES MINIMUM AND 1.640 INCHES MAXIMUM ALL FLANGES |
| FLANGE OUTSIDE HEIGHT | 1.610 INCHES MINIMUM AND 1.640 INCHES MAXIMUM ALL FLANGES |
| FLANGE DEPTH | 0.423 INCHES MINIMUM AND 0.453 INCHES MAXIMUM ALL FLANGES |
| FLANGE CONNECTING FACILITY AND QUANTITY | 4 UNTHREADED HOLE ALL FLANGES ALL CONNECTION FACILITIES |
| FLANGE CONNECTING HOLE DIAMETER | 0.169 INCHES MINIMUM AND 0.172 INCHES MAXIMUM ALL FLANGES ALL CONNECTION FACILITIES |
| SPECIAL FEATURES | INCLUDES 0.250 IN. LG TAB |
| (NON-CORE DATA) TUBING MANUFACTURER PART NUMBER | M85/1-078 ALL TUBING SEGMENT |
| (NON-CORE DATA) FLANGE MANUFACTURER PART NUMBER | M3922/53-3 ALL FLANGES |
| (NON-CORE DATA) FRAGILITY FACTOR | MODERATELY RUGGED |
| III FSC APPLICATION DATA | ANTENNAS,WAVEGUIDES,AND RELATED EQUIPMENT |
Restrictions/Controls & Freight Information | NSN 5985-01-112-4470
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
