Product Details | FIXED ATTENUATOR
5985-01-112-0009 A device for reducing the strength of an alternating current signal by a fixed or predetermined amount, without causing appreciable signal distortion, by maintaining correct impedance match.
Part Alternates: 05125A17DB, 05-125-A-17DB, 230319-117, 5985-01-112-0009, 01-112-0009, 5985011120009, 011120009, 230319117
Electrical and Electronic Equipment Components | Antennas, Waveguides, and Related Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 24 APR 1981 | 01-112-0009 | 14224 ( ATTENUATOR, FIXED ) |
Drawings & Photos | NSN 5985-01-112-0009
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5985-01-112-0009
Related Products | NSN 5985-01-112-0009
Technical Data | NSN 5985-01-112-0009
| Characteristic | Specifications |
|---|---|
| APPLICATION DESIGN | TRANSMISSION LINE |
| INPUT IMPEDANCE RATING IN OHMS | 50.0 |
| OUTPUT IMPEDANCE RATING IN OHMS | 50.0 |
| FREQUENCY RANGE | 0.000 HERTZ MINIMUM AND 12.000 GIGAHERTZ MAXIMUM |
| VOLTAGE STANDING WAVE RATIO | 1.20 AND 1.40 |
| VOLTAGE STANDING WAVE RATIO FREQUENCY RANGE | 0.0 TO 8.0 GIGAHERTZ AND 8.1 TO 12.0 GIGAHERTZ |
| RF SIGNAL ATTENUATION IN DECIBELS | 17.0 |
| POWER RATING | 1.0 WATTS AVERAGE AND 50.0 WATTS PEAK |
| OPERATING TEMP RANGE | -55.0 TO 125.0 DEG CELSIUS |

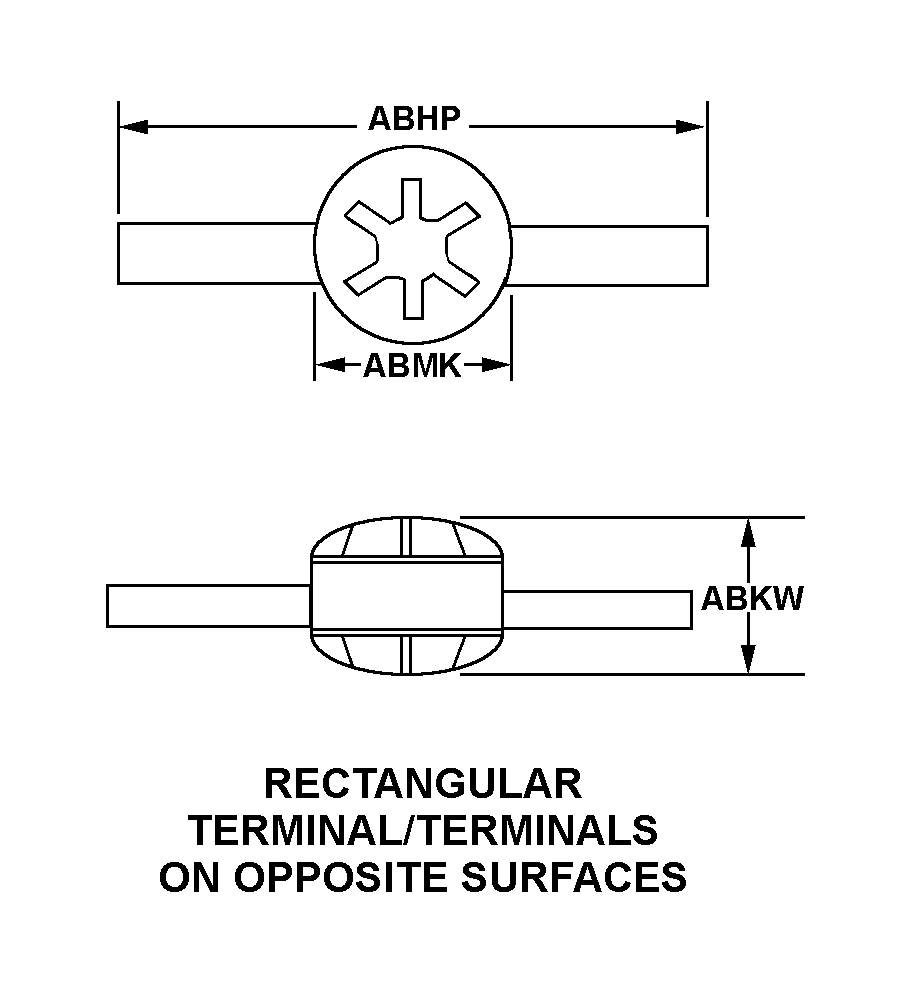

| BODY STYLE | 23B RECTANGULAR TERMINAL/TERMINALS ON OPPOSITE SURFACES |
| OVERALL LENGTH | 0.750 INCHES NOMINAL |
| OVERALL HEIGHT | 0.125 INCHES NOMINAL |
| OVERALL WIDTH | 0.248 INCHES MINIMUM AND 0.255 INCHES MAXIMUM |
| BODY MATERIAL | BRASS |
| BODY SURFACE TREATMENT | GOLD PLATED, MIL-G-45204, TYPE 2, CLASS 1 |
| TERMINAL TYPE AND QUANTITY | 2 RIBBON |
| MOUNTING METHOD | TERMINAL |
| III TERMINAL MATERIAL | BRASS |
| III TERMINAL SURFACE TREATMENT | GOLD PLATED, MIL-G-45204, TYPE 2, CLASS 1 |
| III PRECIOUS MATERIAL | GOLD |
| III PRECIOUS MATERIAL AND LOCATION | OVERALL SURFACES GOLD |
| III FSC APPLICATION DATA | ANTENNAS,WAVEGUIDES,AND RELATED EQUIPMENT |
