Product Details | VARIABLE ATTENUATOR
5985-01-110-3388 A device for reducing the strength of an alternating current signal either continuously or in steps, without causing appreciable signal distortion, by maintaining substantially constant output and/or input impedance match. Continuously variable resistive devices must consist of at least two sections or one section with at least two rotating contacts. The item must have an overall attenuation rating. Includes tandem mounted variable resistors designed to function as an attenuator but whose terminals are not connected. See also RESISTOR, VAIABLE (as modified).
Part Alternates: ARS-1/25471, ARS125471, 1202540001, 1202540-001, 5399642001, 5399642-001, 53996421, 5399642-1, 5985-01-110-3388, 01-110-3388, 5985011103388, 011103388
Electrical and Electronic Equipment Components | Antennas, Waveguides, and Related Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 28 MAR 1981 | 01-110-3388 | 00838 ( ATTENUATOR, VARIABLE ) |
Drawings & Photos | NSN 5985-01-110-3388
Cross Reference | NSN 5985-01-110-3388
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5985-01-110-3388
Technical Data | NSN 5985-01-110-3388
| Characteristic | Specifications |
|---|---|
| APPLICATION DESIGN | TRANSMISSION LINE |
| FREQUENCY RANGE | 0.000 HERTZ MINIMUM AND 400.000 MEGAHERTZ MAXIMUM |
| IMPEDANCE RATING IN OHMS | 50.0 INPUT-OUTPUT |
| VOLTAGE STANDING WAVE RATIO | 2.00 |
| POWER RATING | 0.5 WATTS AVERAGE |
| INSERTION LOSS AT MINIMUM ATTENUATION IN MAXIMUM DECIBELS | 2.0 |
| OVERALL ATTENUATION RANGE IN DECIBELS | 0.0 TO 10.0 |
| ATTENUATION VARIATION METHOD | CONTINUOUS |

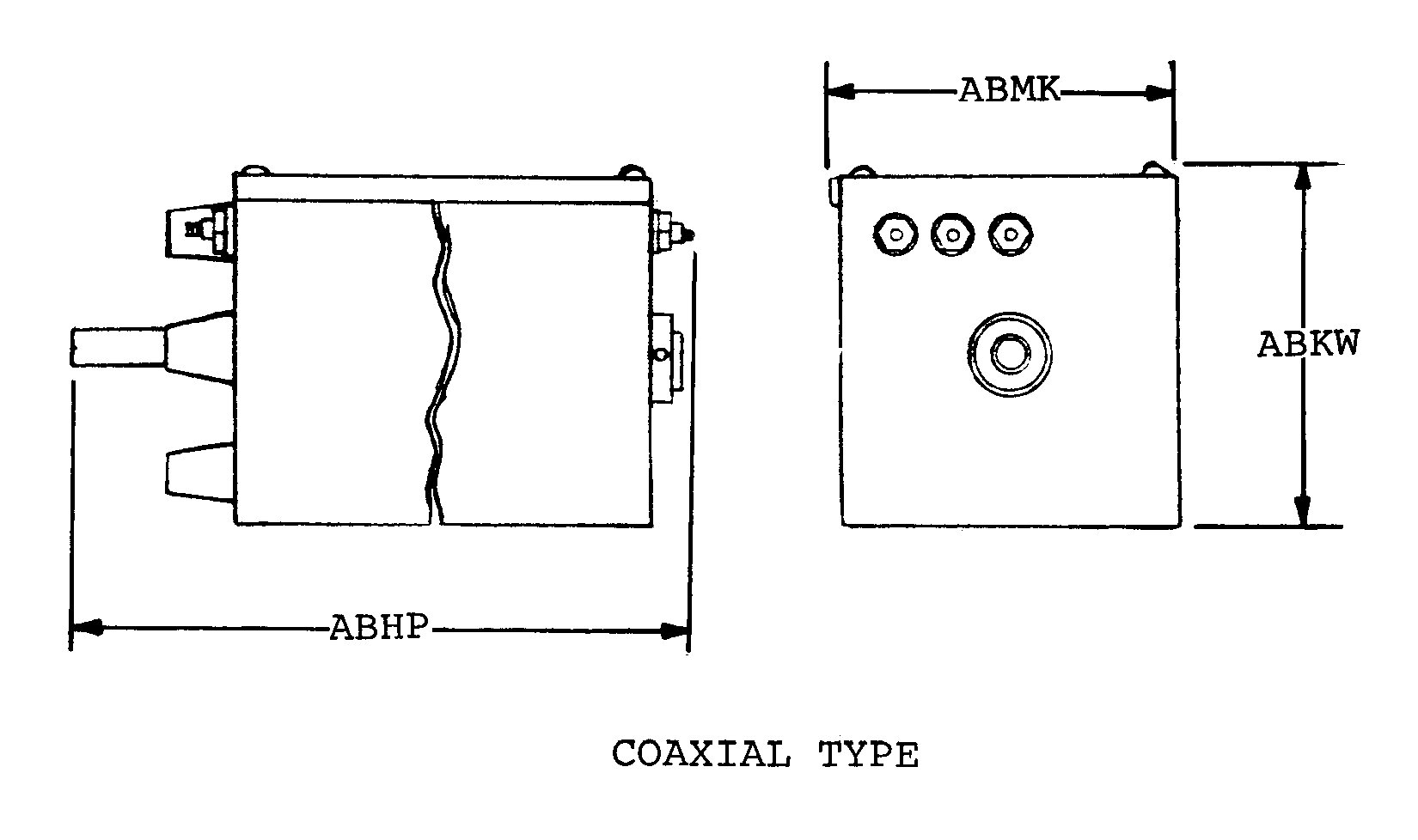

| BODY STYLE | 8A COAXIAL TYPE |
| OVERALL LENGTH | 1.350 INCHES NOMINAL |
| OVERALL HEIGHT | 0.790 INCHES NOMINAL |
| OVERALL WIDTH | 0.750 INCHES NOMINAL |
| ADJUSTMENT DEVICE TYPE AND QUANTITY | 1 SLOTTED SCREW |
| TERMINAL TYPE AND QUANTITY | 4 PIN |
| MOUNTING FACILITY TYPE AND QUANTITY | 4 UNTHREADED HOLE |
| MOUNTING FACILITY PATTERN | FOUR POSITION RECTANGULAR |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.040 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH | 0.500 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO WIDTH | 0.470 INCHES NOMINAL |
| III OPERATING TEMP RANGE | -54.0 TO 100.0 DEG CELSIUS |
