NSN 5985-01-081-5826 349D821G01, 01-081-5826, 010815826
Product Details | ANTENNA REFLECTOR
5985-01-081-5826 An object placed at a distance from a source of radiation, and designed to change the direction of incident radiation without appreciable transmission through it. It is used with an antenna. See also ANTENNA ELEMENT.
Part Alternates: 349D821G01, 5985-01-081-5826, 01-081-5826, 5985010815826, 010815826
Electrical and Electronic Equipment Components | Antennas, Waveguides, and Related Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 17 AUG 1979 | 01-081-5826 | 00244 ( REFLECTOR, ANTENNA ) |

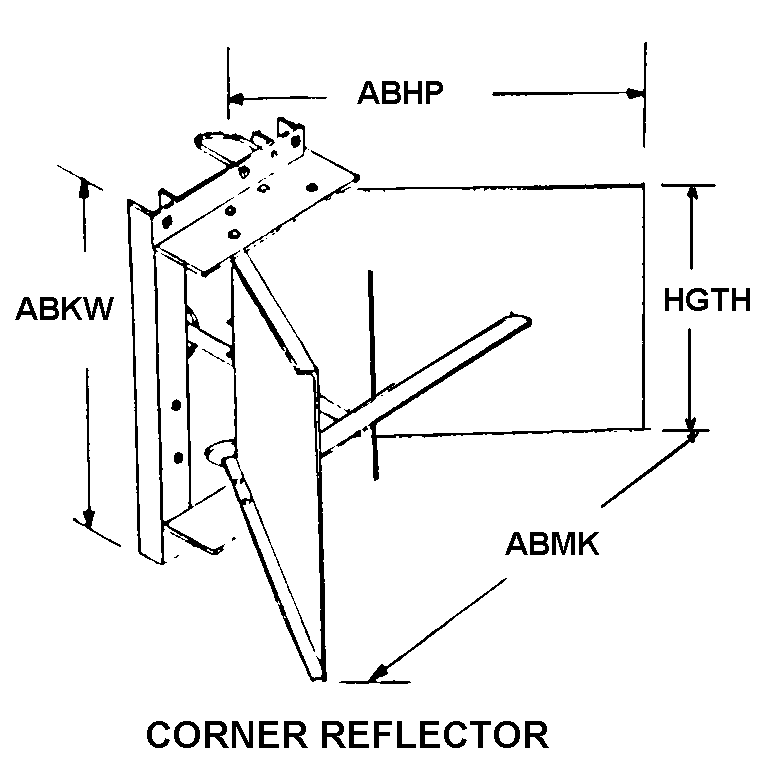

Drawings & Photos | NSN 5985-01-081-5826
Demand History | NSN 5985-01-081-5826
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5985-01-081-5826 | 2023-12-335 | 10 | US |
Cross Reference | NSN 5985-01-081-5826
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 349D821G01 | 97942 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN SYSTEMS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5985-01-081-5826
Related Products | NSN 5985-01-081-5826
Technical Data | NSN 5985-01-081-5826
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | 4B CORNER REFLECTOR |
| III END ITEM IDENTIFICATION | RADAR SET,AN/TPS-43E |
| III SUPPLEMENTARY FEATURES | USED AS IFF ANTENNA SUBASSY |
| MANUFACTURERS CODE | 97942 |
| DESIGN CONTROL REFERENCE | 349D821G01 |
Restrictions/Controls & Freight Information | NSN 5985-01-081-5826
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | D | Munitions List Item or Commerce Control List Item. Demilitarization required. Total destruction of the item and components so as to preclude restoration or repair to a usable condition by melting, cutting, tearing, scratching, crushing, breaking, punching, neutralizing, etc. (As an alternate, burial or deep water dumping may be used when coordinated with the DoD Demilitarization Program Office.) |
| Controlled Inventory Item Code: | 7 | NON-SENSITIVE (SRC-N/A) - UNCLASSIFIED AA&E: OR ITEMS ASSIGNED A DEMILITARIZATION CODE OTHER THAN A, B, Q, OR P FOR WHICH ANOTHER CIIC IS INAPPROPRIATE. (NOTE: THE LOSS, THEFT, UNLAWFUL DISPOSITION, AND/OR RECOVERY OF AN ITEM WITH CIIC 7 WILL BE INVESTIGATED IN ACCORDANCE WITH DOD-4000-25-2-M AND DOD 7200.14-R, VOLUME 12, CHAPTER 7). |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 060535 | AERIAL/ANTENNAS DIRECTIONAL SUB5 |
| Less than car load rating | ||
| Less than truck load rating | G | 125.0 |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | ZA | Australia ZB ZC |
| Air Dimension Code | Z | Shipment is not a consolidation, but does exceed 72 inches in one or more dimensions. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | R | unknonwn |
| HAZMAT | ||
| Type of Cargo | 2 | Type cargo code not applicable (for Air Force internal use). |
