Product Details | VARIABLE ATTENUATOR

5985-01-073-3415 A device for reducing the strength of an alternating current signal either continuously or in steps, without causing appreciable signal distortion, by maintaining substantially constant output and/or input impedance match. Continuously variable resistive devices must consist of at least two sections or one section with at least two rotating contacts. The item must have an overall attenuation rating. Includes tandem mounted variable resistors designed to function as an attenuator but whose terminals are not connected. See also RESISTOR, VAIABLE (as modified).

Part Alternates: SC690425451, SC6904-2545-1, 204357, 23219, 232190, 5985-01-073-3415, 01-073-3415, 5985010733415, 010733415

Electrical and Electronic Equipment Components | Antennas, Waveguides, and Related Equipment

Supply Group (FSG) NSN Assign. NIIN
59 15 MAR 1979 01-073-3415

Drawings & Photos | NSN 5985-01-073-3415


Cross Reference | NSN 5985-01-073-3415

Part Number Cage Code Manufacturer
204357 99899 L-3 COMMUNICATIONS CORPORATION DBA NARDA MICROWAVE EAST
23219 99899 L-3 COMMUNICATIONS CORPORATION DBA NARDA MICROWAVE EAST
232190 99899 L-3 COMMUNICATIONS CORPORATION DBA NARDA MICROWAVE EAST
SC6904-2545-1 12115 DRS ICAS, LLC

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5985-01-073-3415

Technical Data | NSN 5985-01-073-3415

Characteristic Specifications
APPLICATION DESIGN TRANSMISSION LINE
OVERALL ATTENUATION RANGE IN DECIBELS 0.0 TO 90.0
ATTENUATION VARIATION METHOD STEPPED
STEP POSITION QUANTITY 9
ATTENUATION PER STEP IN DECIBELS 10.0

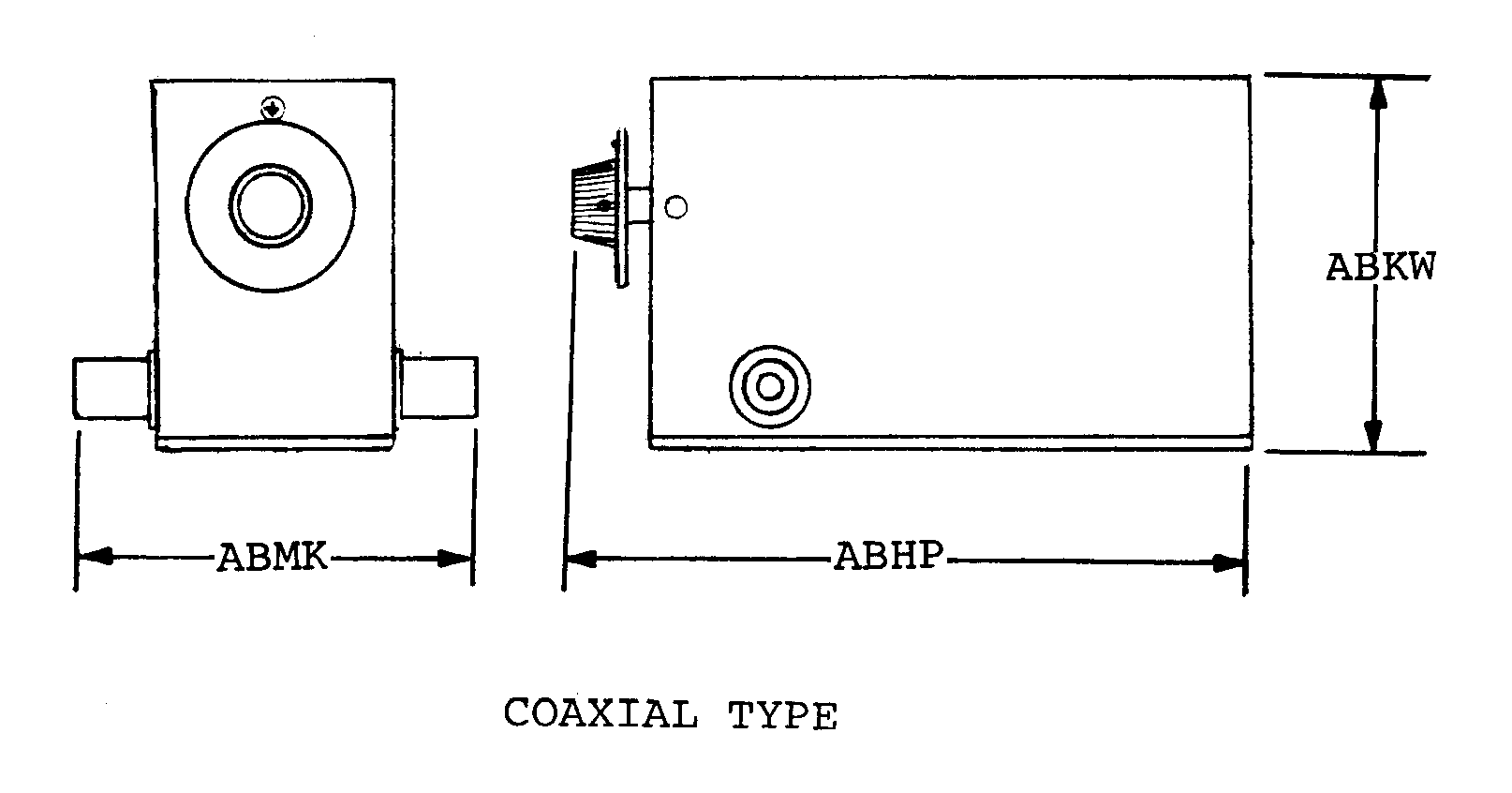

BODY STYLE 9A COAXIAL TYPE
OVERALL LENGTH 3.625 INCHES NOMINAL
OVERALL HEIGHT ANY ACCEPTABLE
OVERALL WIDTH 3.600 INCHES NOMINAL
ADJUSTMENT DEVICE TYPE AND QUANTITY 1 KNOB W/DIAL
TERMINAL TYPE AND QUANTITY 2 CONNECTOR, COAXIAL, FEMALE
COAXIAL CONNECTOR SERIES DESIGNATION NPM
MOUNTING FACILITY TYPE AND QUANTITY 4 THREADED HOLE
MOUNTING FACILITY SCREW THREAD SERIES DESIGNATOR UNC
MOUNTING FACILITY NOMINAL SCREW THREAD DIAMETER 0.138 INCHES
MOUNTING THREAD QUANTITY 32 PER INCH
MOUNTING FACILITY PATTERN FOUR POSITION RECTANGULAR
CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH 2.312 INCHES NOMINAL
CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO WIDTH 2.250 INCHES NOMINAL

Restrictions/Controls & Freight Information | NSN 5985-01-073-3415

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodePThere is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:QStrategic List Item (SLI). Demilitarization not required. SLI are non-MLI(Munitions List Items) controlled by the U.S. Dept. of Commerce through the Export Administration Regulations (EAR) and indicated on the Commerce Control List (CCL). Each CCL entry is preceded by a four-digit Export Control Commerce Control List Item (CCLI) – MUT to the point of scrap required outside the United States. Inside the United States, MUT is required when the DEMIL integrity code (IC) is “3” and MUT is not required when the DEMIL IC is “6.”
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:UPrecious metal type is unknown
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
NMF Description 061700 ELEC APPLIANCES/INSTRUMENTS NOI
Less than car load rating
Less than truck load rating J 100.2
Water commodity Code 658 unknown
Originating Activity Code
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity H Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable

Management | NSN 5985-01-073-3415

Category Code Description
Budget Code9 General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation CodeEHSX:ELECTRONIC COMPONENTS
Price ValidationN The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
  • The price has not been analyzed or reviewed for accuracy.
  • ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund CodeSFStock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDFDepartment of the Air Force
Service OrganizationFU.S. Air Force
ReparabilityNStock Fund (except Munitions)
Acquisition Advice CodesZINSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
EA : Each
