NSN 5985-01-054-6587 0N199775, 50V60601, 50V60-601
Product Details | VARIABLE ATTENUATOR
5985-01-054-6587 A device for reducing the strength of an alternating current signal either continuously or in steps, without causing appreciable signal distortion, by maintaining substantially constant output and/or input impedance match. Continuously variable resistive devices must consist of at least two sections or one section with at least two rotating contacts. The item must have an overall attenuation rating. Includes tandem mounted variable resistors designed to function as an attenuator but whose terminals are not connected. See also RESISTOR, VAIABLE (as modified).
Part Alternates: 0N199775, 50V60601, 50V60-601, 5985-01-054-6587, 01-054-6587, 5985010546587, 010546587
Electrical and Electronic Equipment Components | Antennas, Waveguides, and Related Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 24 JAN 1978 | 01-054-6587 | 00838 ( ATTENUATOR, VARIABLE ) |
Drawings & Photos | NSN 5985-01-054-6587
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5985-01-054-6587
Technical Data | NSN 5985-01-054-6587
| Characteristic | Specifications |
|---|---|
| APPLICATION DESIGN | TRANSMISSION LINE |
| FREQUENCY RANGE | 1.000 MEGAHERTZ MINIMUM AND 30.000 MEGAHERTZ MAXIMUM |
| OVERALL ATTENUATION RANGE IN DECIBELS | 0.0 TO 60.0 |
| ATTENUATION VARIATION METHOD | STEPPED |
| STEP POSITION QUANTITY | 10 |
| ATTENUATION PER STEP IN DECIBELS | 6.0 |

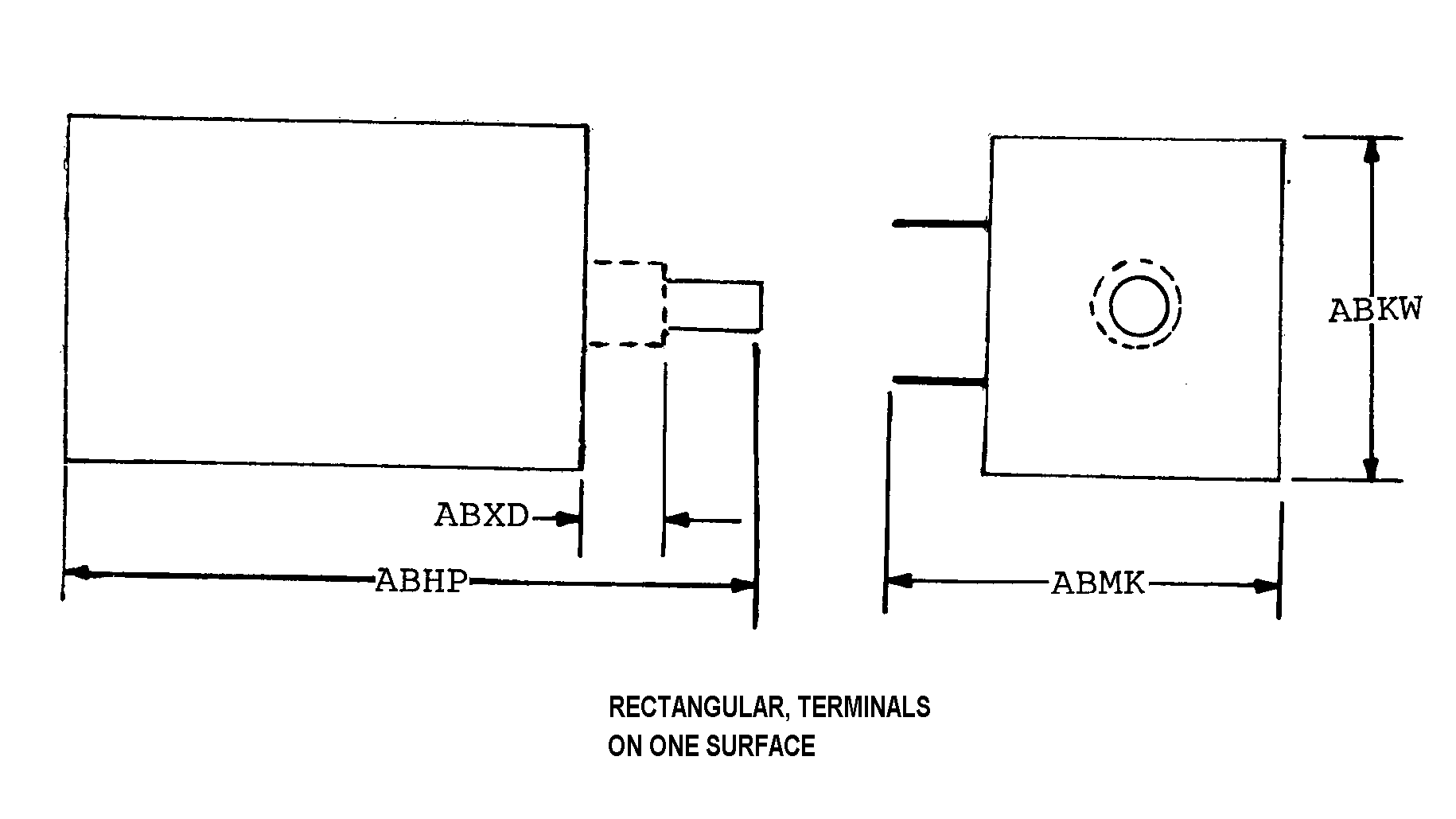

| BODY STYLE | 39A RECTANGULAR, TERMINALS ON ONE SURFACE |
| OVERALL LENGTH | 4.570 INCHES MAXIMUM |
| OVERALL HEIGHT | 2.000 INCHES MAXIMUM |
| OVERALL WIDTH | 1.000 INCHES NOMINAL |
| BUSHING LENGTH | 0.320 INCHES NOMINAL |
| ADJUSTMENT DEVICE TYPE AND QUANTITY | 1 SHAFT |
| SHAFT TYPE | ROUND, FLATTED |
| FIRST FLAT LENGTH | 0.380 INCHES MINIMUM |
| FLAT HEIGHT | 0.218 INCHES NOMINAL |
| SHAFT DIAMETER | 0.250 INCHES NOMINAL |
| SHAFT LENGTH | 0.670 INCHES NOMINAL |
| TERMINAL TYPE AND QUANTITY | 2 CONNECTOR, COAXIAL, MALE |
| COAXIAL CONNECTOR SERIES DESIGNATION | SM |
| TEST DATA DOCUMENT | 98230-0N199775 DRAWING |
| MANUFACTURERS CODE | 58880 |
| DESIGN CONTROL REFERENCE | 50V60-601 |
