NSN 5985-01-054-2059 M3933/16-03, M3933/16-03N, M39331603

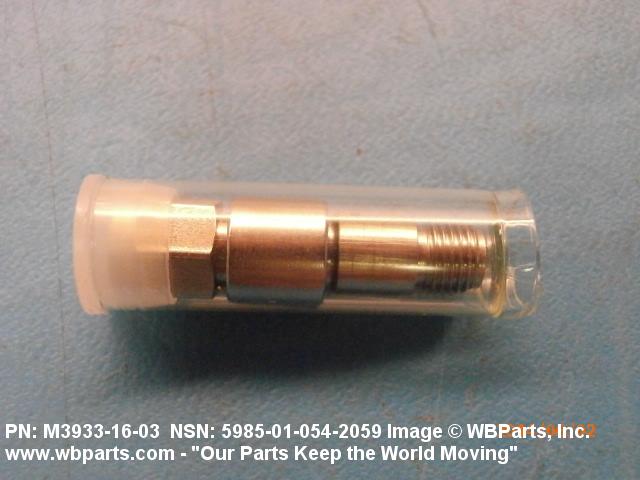

Product Details | FIXED ATTENUATOR

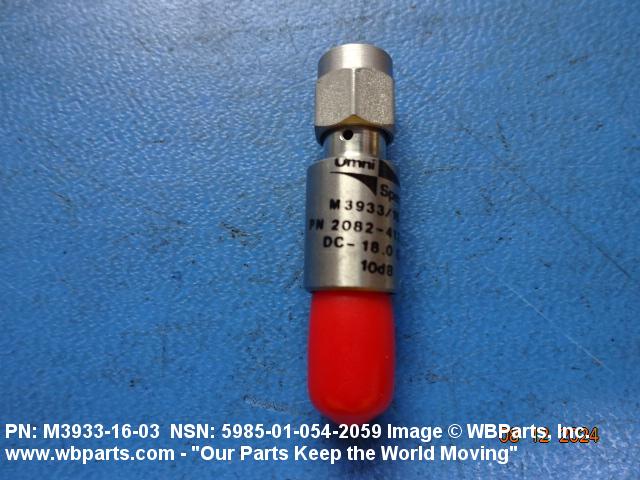

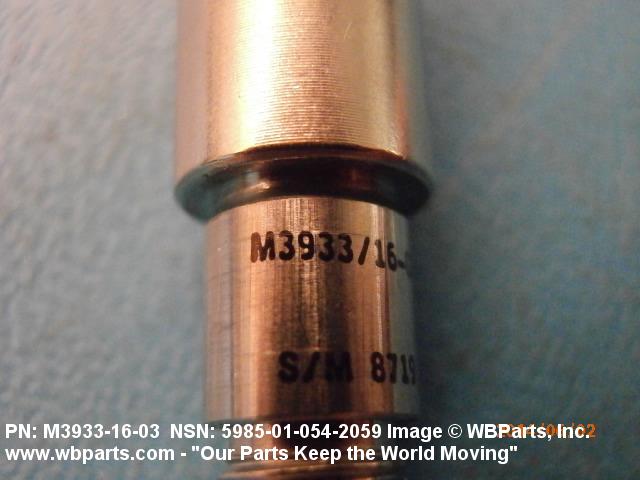

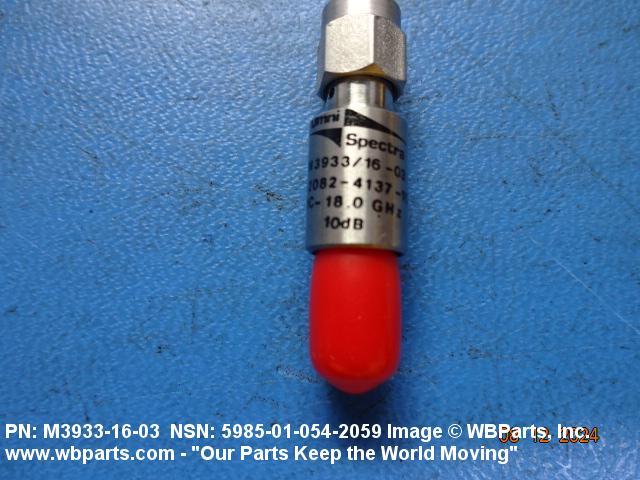

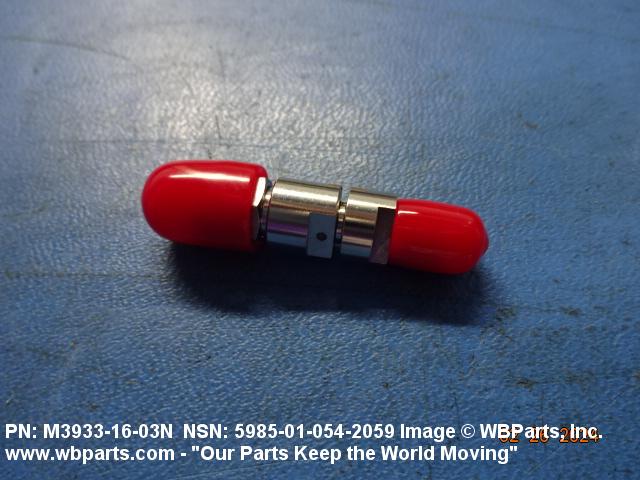

5985-01-054-2059 A device for reducing the strength of an alternating current signal by a fixed or predetermined amount, without causing appreciable signal distortion, by maintaining correct impedance match.
Part Alternates: M3933/16-03, M3933/16-03N, M39331603, M39331603N, SMA7230931, SMA723093-1, MIL-DTL-3933/16, MILDTL393316, 8013613, 801361-3, 5985-01-054-2059, 01-054-2059, 5985010542059, 010542059
Electrical and Electronic Equipment Components | Antennas, Waveguides, and Related Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 17 JAN 1978 | 01-054-2059 | 14224 ( ATTENUATOR, FIXED ) |

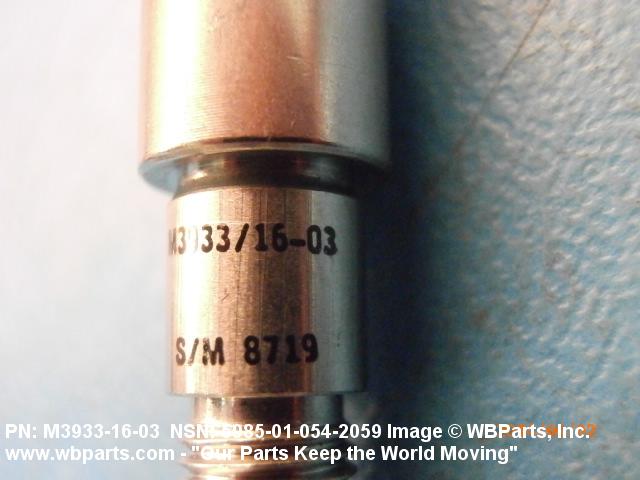

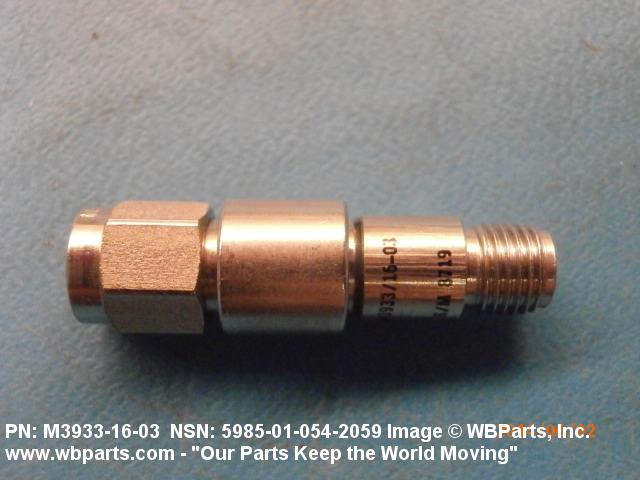

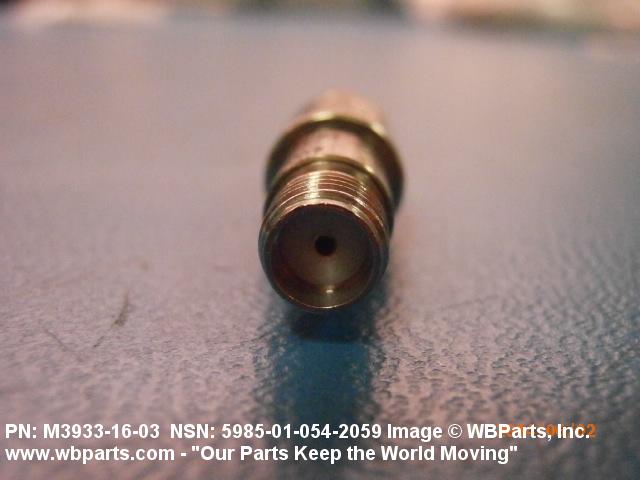

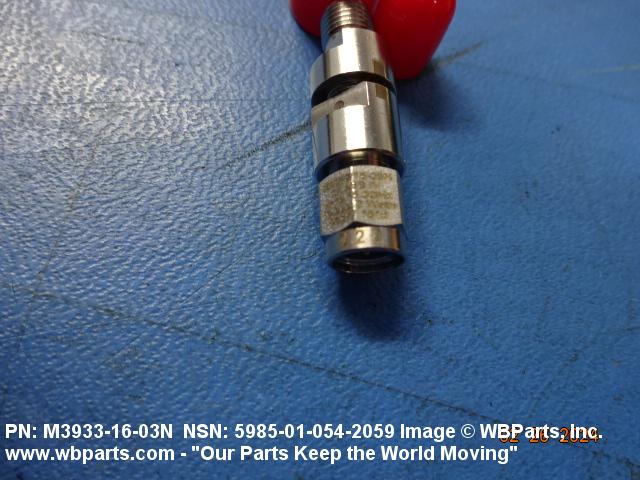

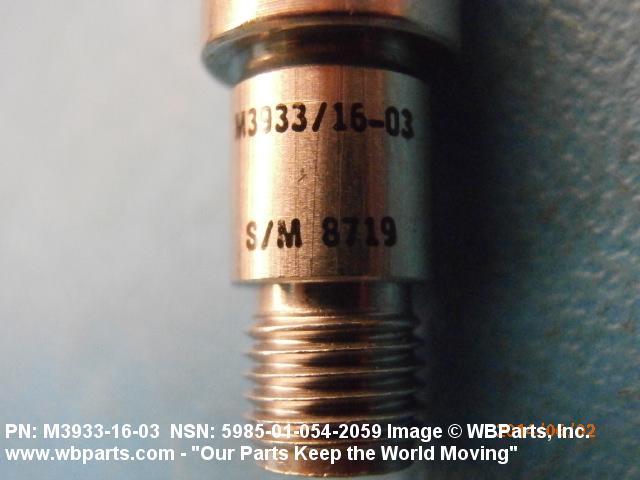

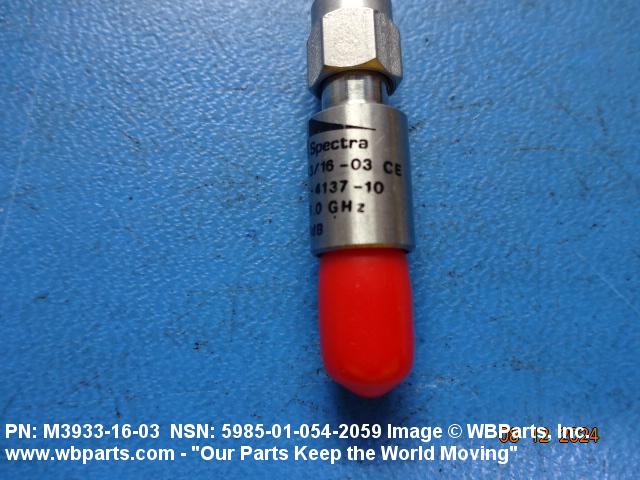

Drawings & Photos | NSN 5985-01-054-2059
Demand History | NSN 5985-01-054-2059
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5985-01-054-2059 | 2024-08-214 | 20 | United States |
| 5985-01-054-2059 | 2024-07-183 | 30 | United States |
| 5985-01-054-2059 | 2024-02-45 | 10 | United States |
| 5985-01-054-2059 | 2023-02-33 | 25 | DIBBS |
| 5985-01-054-2059 | 2022-10-299 | 27 | DIBBS |
| 5985-01-054-2059 | 2022-05-138 | 7 | DIBBS |
| 5985-01-054-2059 | 2022-05-132 | 3 | DIBBS |
| 5985-01-054-2059 | 2022-03-79 | 7 | DIBBS |
| 5985-01-054-2059 | 2022-01-13 | 17 | DIBBS |
| 5985-01-054-2059 | 2021-10-284 | 69 | DIBBS |
| 5985-01-054-2059 | 2020-10-299 | 13 | DIBBS |
| 5985-01-054-2059 | 2019-08-227 | 38 | DIBBS |
| 5985-01-054-2059 | 2018-08-228 | 35 | DIBBS |
| 5985-01-054-2059 | 2015-07-210 | 22 | DIBBS |
| 5985-01-054-2059 | 2014-05-147 | 12 | United States |
| 5985-01-054-2059 | 2014-05-147 | 12 | United States |
| 5985-01-054-2059 | 2014-05-135 | 12 | United States |
| 5985-01-054-2059 | 2012-12-352 | 0 | DIBBS |
| 5985-01-054-2059 | 2012-07-201 | 4 | US |
| 5985-01-054-2059 | 2012-04-97 | 66 | DIBBS |
| 5985-01-054-2059 | 2012-02-39 | 54 | DIBBS |
| 5985-01-054-2059 | 2011-12-356 | 51 | DIBBS |
| 5985-01-054-2059 | 2011-08-223 | 56 | DIBBS |
| 5985-01-054-2059 | 2009-12-338 | 78 | DIBBS |
| 5985-01-054-2059 | 2009-04-105 | 73 | DIBBS |
| 5985-01-054-2059 | 2008-09-267 | 68 | DIBBS |
Cross Reference | NSN 5985-01-054-2059
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 801361-3 | 96214 | RAYTHEON COMPANY DBA RAYTHEON |
| M3933/16-03 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| M3933/16-03N | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-DTL-3933/16 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| SMA723093-1 | 80063 | US ARMY COMMUNICATIONS & ELECTRONICS MATERIEL READINESS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5985-01-054-2059
Related Products | NSN 5985-01-054-2059
Technical Data | NSN 5985-01-054-2059
| Characteristic | Specifications |
|---|---|
| APPLICATION DESIGN | TRANSMISSION LINE |
| INPUT IMPEDANCE RATING IN OHMS | 50.0 |
| OUTPUT IMPEDANCE RATING IN OHMS | 50.0 |
| FREQUENCY RANGE | 0.000 HERTZ MINIMUM AND 18.000 GIGAHERTZ MAXIMUM |
| VOLTAGE STANDING WAVE RATIO | 1.45 AND 1.50 |
| VOLTAGE STANDING WAVE RATIO FREQUENCY RANGE | 0.0 TO 12.4 GIGAHERTZ AND 12.4 TO 18.0 GIGAHERTZ |
| RF SIGNAL ATTENUATION IN DECIBELS | 10.0 |
| POWER RATING | 500.0 MILLIWATTS AVERAGE AND 1.0 KILOWATTS PEAK |
| OPERATING TEMP RANGE | -65.0 TO 105.0 DEG CELSIUS |
| BODY STYLE | 1B ROUND, TERMINAL/TERMINALS ON OPPOSITE SURFACES |

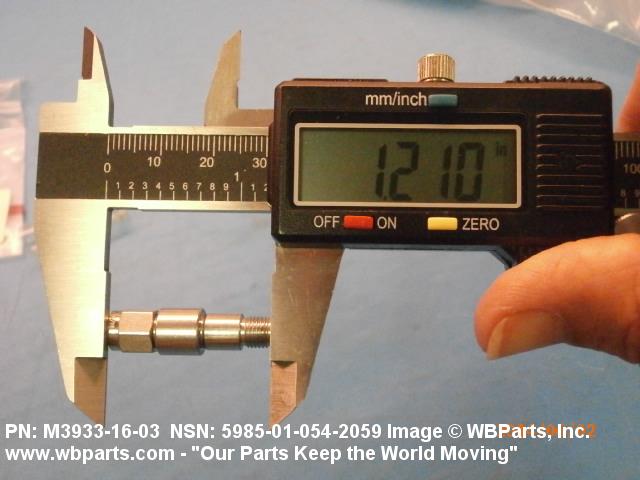

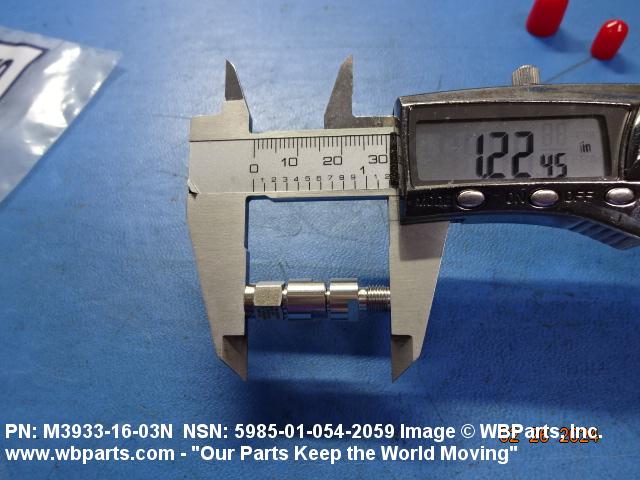

| OVERALL LENGTH | 1.240 INCHES MAXIMUM |

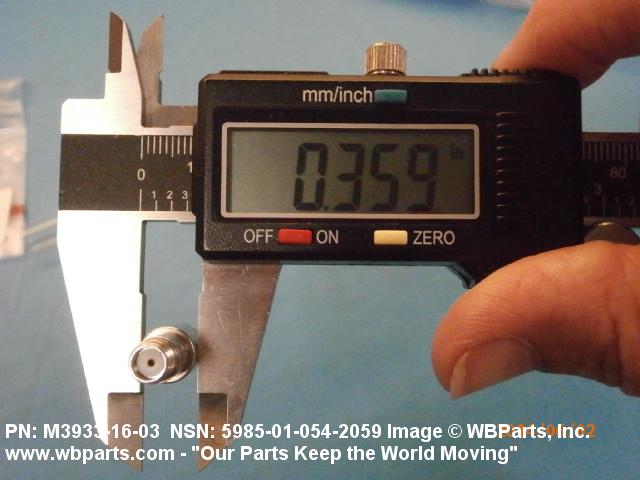

| OVERALL DIAMETER | 0.390 INCHES MAXIMUM |
| BODY MATERIAL | ANY ACCEPTABLE |
| TERMINAL TYPE AND QUANTITY | 2 CONNECTOR |

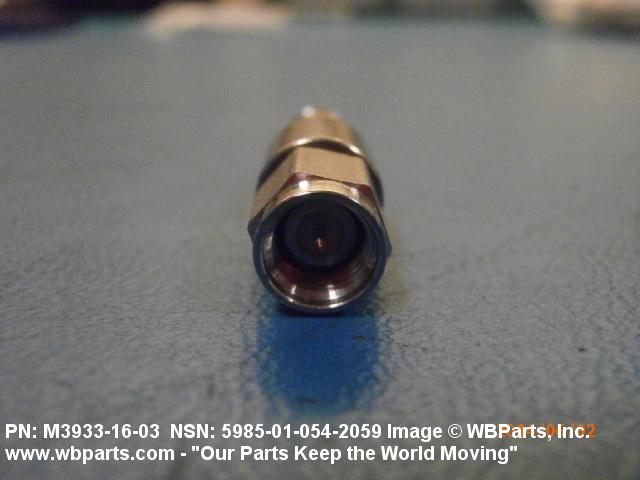

| COAXIAL CONNECTOR SERIES DESIGNATION | SMA |
| CONNECTION TYPE PER FUNCTION | FEMALE OUTPUT AND MALE INPUT |
| MOUNTING METHOD | CONNECTOR |
| TEST DATA DOCUMENT | 81349-MIL-A-3933 SPECIFICATION |
| SPECIFICATION/STANDARD DATA | 81349-MIL-A-3933/16 GOVERNMENT SPECIFICATION |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-DTL-3933/16 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M3933/16-03N |
