Product Details | VARIABLE ATTENUATOR
5985-01-037-8350 A device for reducing the strength of an alternating current signal either continuously or in steps, without causing appreciable signal distortion, by maintaining substantially constant output and/or input impedance match. Continuously variable resistive devices must consist of at least two sections or one section with at least two rotating contacts. The item must have an overall attenuation rating. Includes tandem mounted variable resistors designed to function as an attenuator but whose terminals are not connected. See also RESISTOR, VAIABLE (as modified).
Part Alternates: ABM-27-350/18949, ABM2735018949, 58P02668J001, 58-P02668J001, 5985-01-037-8350, 01-037-8350, 5985010378350, 010378350
Electrical and Electronic Equipment Components | Antennas, Waveguides, and Related Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 25 MAR 1977 | 01-037-8350 | 00838 ( ATTENUATOR, VARIABLE ) |
Drawings & Photos | NSN 5985-01-037-8350
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5985-01-037-8350
Technical Data | NSN 5985-01-037-8350
| Characteristic | Specifications |
|---|---|
| APPLICATION DESIGN | TRANSMISSION LINE |
| FREQUENCY RANGE | 250.000 MEGAHERTZ MINIMUM AND 450.000 MEGAHERTZ MAXIMUM |
| IMPEDANCE RATING IN OHMS | 50.0 INPUT-OUTPUT |
| VOLTAGE STANDING WAVE RATIO | 1.60 |
| POWER RATING | 500.0 MILLIWATTS AVERAGE |
| INSERTION LOSS AT MINIMUM ATTENUATION IN MAXIMUM DECIBELS | 1.4 |
| OVERALL ATTENUATION RANGE IN DECIBELS | 0.0 TO 10.0 |
| OVERALL ATTENUATION ACCURACY IN DECIBELS | -1.00 TO 1.00 |
| ATTENUATION VARIATION METHOD | CONTINUOUS |

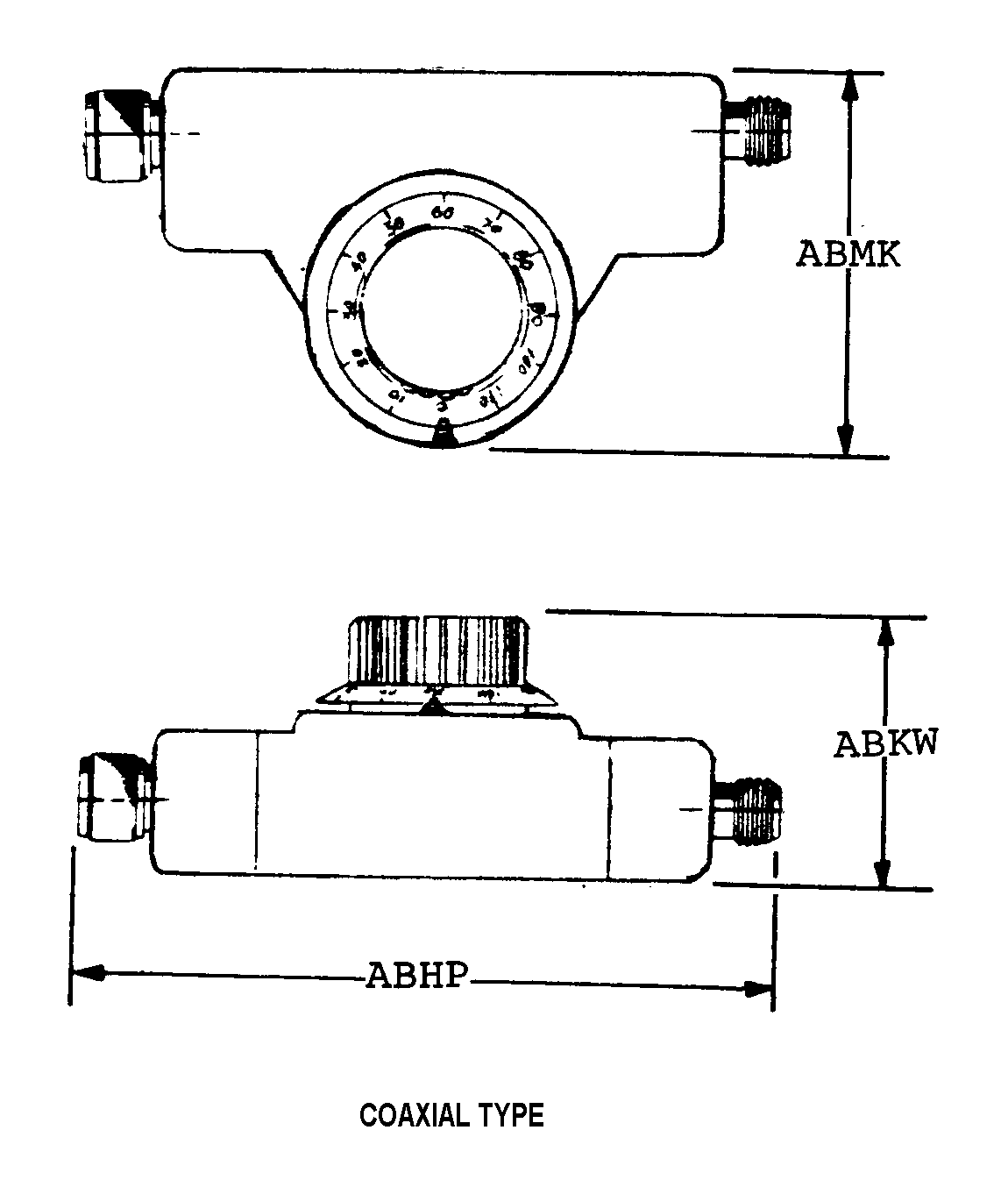

| BODY STYLE | 13A COAXIAL TYPE |
| OVERALL LENGTH | 1.440 INCHES MAXIMUM |
| OVERALL HEIGHT | 1.790 INCHES MAXIMUM |
| OVERALL WIDTH | 1.090 INCHES MAXIMUM |
| ADJUSTMENT DEVICE TYPE AND QUANTITY | 1 KNOB |
| TERMINAL TYPE AND QUANTITY | 2 CONNECTOR, COAXIAL, FEMALE |
| COAXIAL CONNECTOR SERIES DESIGNATION | SMA |
| MOUNTING FACILITY TYPE AND QUANTITY | 2 UNTHREADED HOLE |
| MOUNTING FACILITY PATTERN | TWO POSITION IN-LINE |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.125 INCHES NOMINAL |
| DISTANCE BETWEEN MOUNTING FACILITY CENTERS | 1.094 INCHES NOMINAL |
| III OPERATING TEMP RANGE | -0.0 TO 60.0 DEG CELSIUS |
