NSN 5985-01-036-8821 ATT044410SMA02, ATT-0444-10-SMA-02, 4001208210
Product Details | FIXED ATTENUATOR

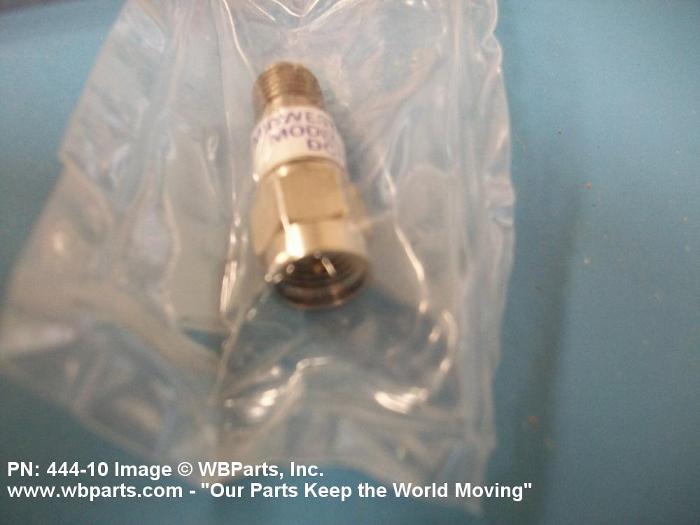

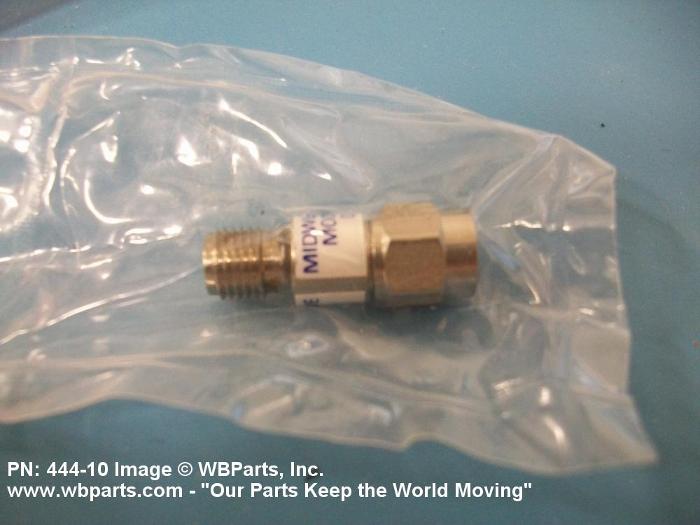

5985-01-036-8821 A device for reducing the strength of an alternating current signal by a fixed or predetermined amount, without causing appreciable signal distortion, by maintaining correct impedance match.
Part Alternates: ATT044410SMA02, ATT-0444-10-SMA-02, 4001208210, 40-012082-10, 44410, 444-10, 902610, 9026-10, 5985-01-036-8821, 01-036-8821, 5985010368821, 010368821
