Product Details | ANTENNA SUPPORT SLEEVE

5985-01-036-3666 A cylinder whose ratio of axial length to the outside diameter is four to one or greater, and which is used with an antenna support.

Part Alternates: 126ATU608, 13819, 5985-01-036-3666, 01-036-3666, 5985010363666, 010363666

Electrical and Electronic Equipment Components | Antennas, Waveguides, and Related Equipment

Supply Group (FSG) NSN Assign. NIIN
59 25 FEB 1977 01-036-3666

Drawings & Photos | NSN 5985-01-036-3666


Demand History | NSN 5985-01-036-3666

Part Number Request Date QTY Origin
5985010363666 2011-12-343 1 US

Cross Reference | NSN 5985-01-036-3666

Part Number Cage Code Manufacturer
126ATU608 55635 DAYTON-GRANGER INC.
13819 55635 DAYTON-GRANGER INC.

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5985-01-036-3666

Technical Data | NSN 5985-01-036-3666

Characteristic Specifications
MATERIAL PLASTIC
MOUNTING METHOD THREADED BASE
THREAD SIZE AND SERIES/TYPE DESIGNATOR 400-16 UNS

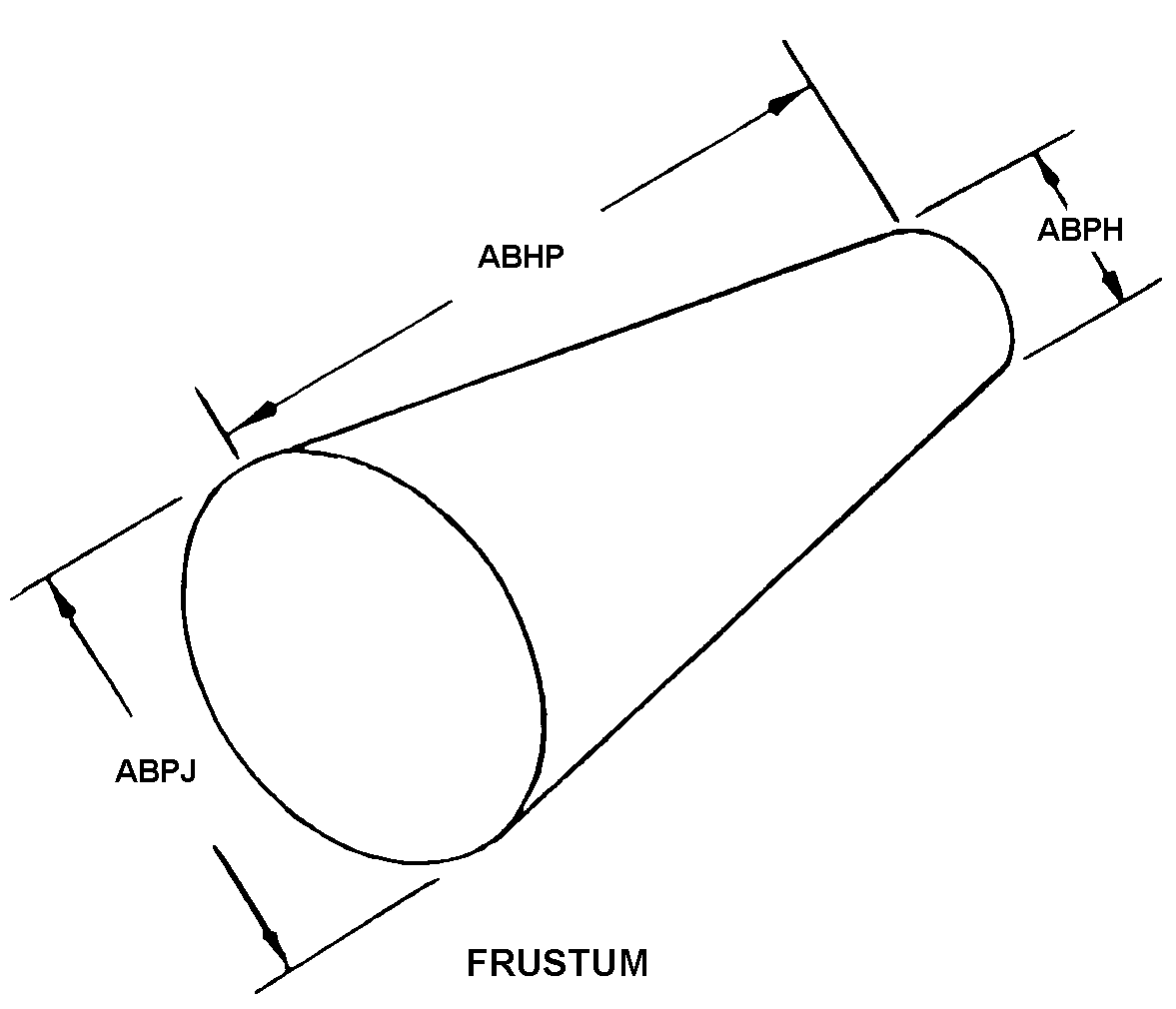

BASIC SHAPE STYLE 4A FRUSTUM
OVERALL LENGTH 5.000 INCHES MINIMUM AND 5.570 INCHES MAXIMUM
SMALL END DIAMETER 0.250 INCHES NOMINAL
LARGE END DIAMETER 0.620 INCHES NOMINAL
MANUFACTURERS CODE 55635
DESIGN CONTROL REFERENCE 13819

Restrictions/Controls & Freight Information | NSN 5985-01-036-3666

Category Code Description
Hazardous Material Indicator CodePThere is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:BMunitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.)
Precious Metals Indicator Code:UPrecious metal type is unknown
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
No Freight Information
