NSN 5985-01-003-6071 678H, 01-003-6071, 010036071
Product Details | WAVEGUIDE SWITCH
5985-01-003-6071 An item specifically designed for mechanically or electronically positioning one or more waveguide sections so as to couple it or them to other sections in a waveguide system. The switching function may be operated by a manual actuator, an electromechanical actuator or by means of an arrangement of semiconductors and passive circuit devices. Excludes RELAY, (as modified).
Part Alternates: 678H, 5985-01-003-6071, 01-003-6071, 5985010036071, 010036071
Electrical and Electronic Equipment Components | Antennas, Waveguides, and Related Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 MAY 1975 | 01-003-6071 | 05118 ( SWITCH, WAVEGUIDE ) |
Drawings & Photos | NSN 5985-01-003-6071
Cross Reference | NSN 5985-01-003-6071
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 678H | 00443 | WAVELINE INCORPORATED |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5985-01-003-6071
Technical Data | NSN 5985-01-003-6071
| Characteristic | Specifications |
|---|---|
| MINIMUM CROSSTALK RATING IN DECIBELS | 60.0 SINGLE |
| ACTUATOR OPERATING METHOD | MANUAL |
| SWITCH TYPE | TRANSFER |
| COUPLING POSITION QUANTITY | 4 |
| TERMINAL TYPE AND QUANTITY | 4 RECTANGULAR FLANGE |
| WAVEGUIDE FLANGE TYPE | COVER |
| FLANGE CONNECTING FACILITY AND QUANTITY | 16 THREADED HOLE |

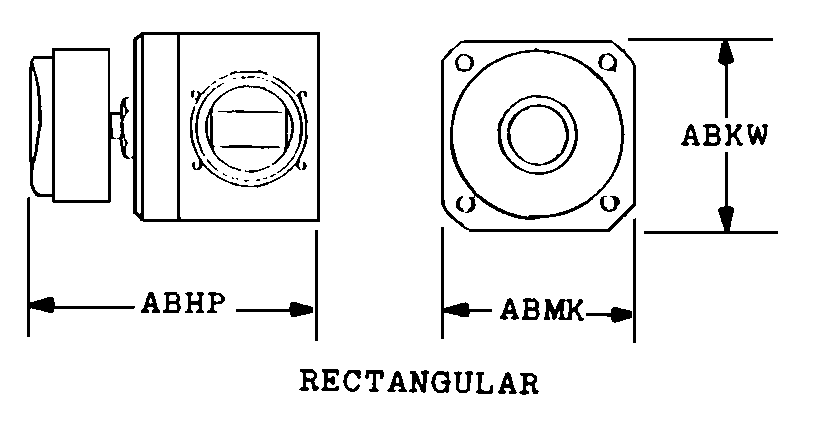

| BODY STYLE | 7C RECTANGULAR |
| OVERALL LENGTH | 2.875 INCHES NOMINAL |
| OVERALL HEIGHT | 3.250 INCHES NOMINAL |
| OVERALL WIDTH | 3.250 INCHES NOMINAL |
| MATERIAL | ALUMINUM BODY |
| MANUFACTURERS CODE | 00443 |
| DESIGN CONTROL REFERENCE | 678H |
