Product Details | RADIO FREQUENCY TRANSMISSION LINE SWITCH
5985-00-993-3807 An item specifically designed for mechanically or electronically positioning one or more radio frequency transmission line sections so as to couple it or them to other sections in a radio frequency transmission line system. The switching function may be operated by a manual actuator, an electromechanical actuator or by means of an arrangement of semiconductors and passive circuit devices. Excludes RELAY, (as modified).202593000005985000000
Part Alternates: 6207-1748-1, 5985-00-993-3807, 00-993-3807, 5985009933807, 620717481, 009933807
Electrical and Electronic Equipment Components | Antennas, Waveguides, and Related Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1960 | 00-993-3807 | 05298 ( SWITCH, RADIO FREQUENCY TRANSMISSION LINE ) |
Drawings & Photos | NSN 5985-00-993-3807
Cross Reference | NSN 5985-00-993-3807
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 6207-1748-1 | 12115 | DRS ICAS, LLC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5985-00-993-3807
Related Products | NSN 5985-00-993-3807
Technical Data | NSN 5985-00-993-3807
| Characteristic | Specifications |
|---|---|
| ACTUATOR OPERATING METHOD | RELAY |
| ACTUATOR CURRENT TYPE AND RATING IN AMPS | 3.5 DC MAXIMUM |
| ACTUATOR VOLTAGE IN VOLTS | 23.5 MINIMUM AND 33.5 MAXIMUM |
| COUPLING POSITION QUANTITY | 4 |
| TERMINAL TYPE AND QUANTITY | 1 CONNECTOR, RECEPTACLE AND 4 PLUG, COAXIAL |
| COAXIAL CONNECTOR SERIES DESIGNATION | TPS |
| CONNECTOR END DESIGN | FEMALE |
| SWITCH OPERATION SEQUENCE | BREAKS BEFORE MAKES |
| SWITCH RETURN MECHANISM TYPE | FAIL-SAFE |

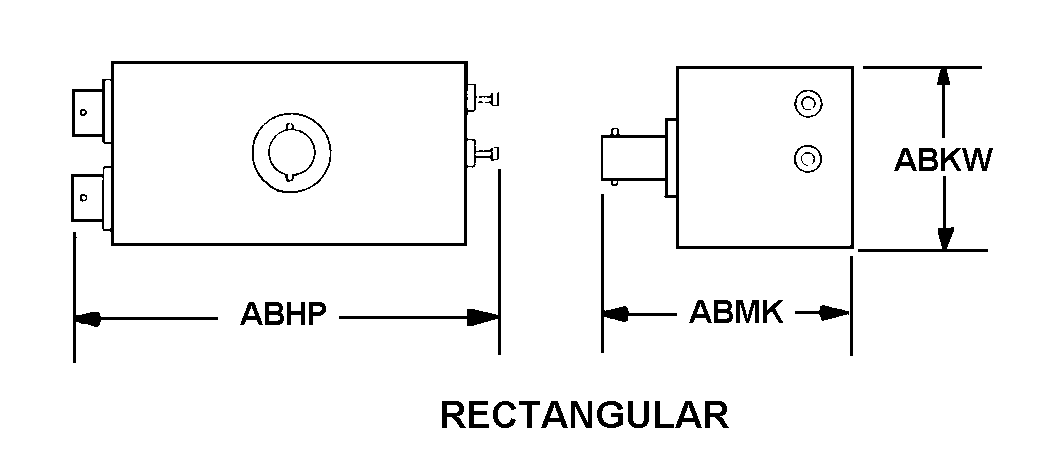

| BODY STYLE | 40B RECTANGULAR |
| OVERALL LENGTH | 3.720 INCHES NOMINAL |
| OVERALL HEIGHT | 1.780 INCHES MAXIMUM |
| OVERALL WIDTH | 2.780 INCHES MAXIMUM |
| MATERIAL | ALUMINUM BODY |
| SURFACE TREATMENT | CHROMATE BODY OUTSIDE SURFACES |
| MOUNTING FACILITY TYPE AND QUANTITY | 4 THREADED HOLE |
| MOUNTING FACILITY PATTERN | FOUR POSITION RECTANGULAR SINGLE MOUNTING FACILITY PATTERN |
| LONGEST HORIZONTAL DISTANCE BETWEEN MOUNTING CENTERS | 1.000 INCHES NOMINAL SINGLE MOUNTING FACILITY PATTERN |
| LONGEST VERTICAL DISTANCE BETWEEN MOUNTING CENTERS | 0.750 INCHES NOMINAL SINGLE MOUNTING FACILITY PATTERN |
| THREAD SERIES DESIGNATOR | UNC MOUNTING FACILITY HOLE |
| NOMINAL THREAD SIZE | 0.138 INCHES MOUNTING FACILITY HOLE |
| THREAD CLASS | 2B MOUNTING FACILITY HOLE |
| SPECIAL FEATURES | SWITCH ASSY MUST BE VAPOR TIGHT,SEALED CONSTRUCTION,NO REMOVABLE PARTS; LIFE EXPECTANCY 14,000 HRS OPERATING MINIMUM |
| III OPERATING TEMP RANGE | -20.0 TO 71.0 DEG CELSIUS |
| III UNPACKAGED UNIT WEIGHT | 14.000 OUNCES |
