NSN 5985-00-988-6834 65327816, 653278-16, 00-988-6834
Product Details | WAVEGUIDE ASSEMBLY
5985-00-988-6834 An item consisting of one or more definite lengths of straight or formed, flexible or rigid, prefabricated hollow tubing of conductive material. The tubing has a predetermined cross section and is designed to guide or conduct high frequency electromagnetic energy through its interior. One or more ends are terminated. May include common mounting of a SWITCH, WAVE GUIDE, a DUMMY LOAD, ELECTRICAL and other components such as waveguide section, cable terminal chamber and the like. Excludes COUPLER, ROTARY, RADIO FREQUENCY; COUPLER, DIRECTIONAL; ADAPTER, WAVEGUIDE; and TUNER, WAVEGUIDE.
Part Alternates: 65327816, 653278-16, 5985-00-988-6834, 00-988-6834, 5985009886834, 009886834
Electrical and Electronic Equipment Components | Antennas, Waveguides, and Related Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1962 | 00-988-6834 | 00305 ( WAVEGUIDE ASSEMBLY ) |
Drawings & Photos | NSN 5985-00-988-6834
Cross Reference | NSN 5985-00-988-6834
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 653278-16 | 06845 | RAYTHEON COMPANY DBA RAYTHEON |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5985-00-988-6834
Technical Data | NSN 5985-00-988-6834
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | B1 STRAIGHT TYPE |
| WAVEGUIDE LENGTH | 8.677 FEET NOMINAL |
| CROSS-SECTIONAL SHAPE STYLE | A1 INTERNAL, RECTANGULAR EXTERNAL, RECTANGULAR |
| WAVEGUIDE OUTSIDE WIDTH | 6.875 INCHES NOMINAL |
| WAVEGUIDE INSIDE WIDTH | 6.500 INCHES NOMINAL |
| WAVEGUIDE INSIDE HEIGHT | 3.250 INCHES NOMINAL |
| WAVEGUIDE OUTSIDE HEIGHT | 3.625 INCHES NOMINAL |
| MATERIAL | ALUMINUM ALLOY 6061 ALL FLANGE |
| (NON-CORE DATA) MATERIAL DOCUMENT AND CLASSIFICATION | T6 ASSN STD SINGLE MATERIAL RESPONSE ALL FLANGE |
| SURFACE TREATMENT | ANODIZE ALL FLANGE INSIDE SURFACES |
| FLANGE QUANTITY | 2 |

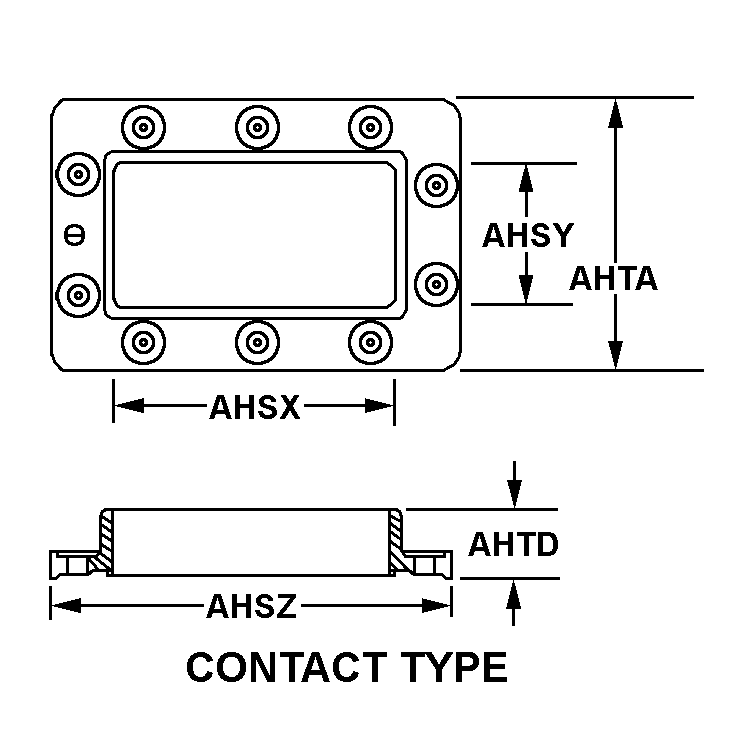

| FLANGE STYLE | C8 CONTACT TYPE ALL FLANGES |
| FLANGE INSIDE WIDTH | 6.880 INCHES NOMINAL ALL FLANGES |
| FLANGE OUTSIDE WIDTH | 8.740 INCHES NOMINAL ALL FLANGES |
| FLANGE OUTSIDE HEIGHT | 5.440 INCHES NOMINAL ALL FLANGES |
| FLANGE DEPTH | 1.000 INCHES NOMINAL ALL FLANGES |
| FLANGE CONNECTING FACILITY AND QUANTITY | 10 UNTHREADED HOLE ALL FLANGES SINGLE CONNECTION FACILITY |
| (NON-CORE DATA) FLANGE MANUFACTURER PART NUMBER | N244324-2 ALL FLANGES |
| MANUFACTURERS CODE | 06845 |
| DESIGN CONTROL REFERENCE | 653278-16 |
Restrictions/Controls & Freight Information | NSN 5985-00-988-6834
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | D | Munitions List Item or Commerce Control List Item. Demilitarization required. Total destruction of the item and components so as to preclude restoration or repair to a usable condition by melting, cutting, tearing, scratching, crushing, breaking, punching, neutralizing, etc. (As an alternate, burial or deep water dumping may be used when coordinated with the DoD Demilitarization Program Office.) |
| Controlled Inventory Item Code: | 7 | NON-SENSITIVE (SRC-N/A) - UNCLASSIFIED AA&E: OR ITEMS ASSIGNED A DEMILITARIZATION CODE OTHER THAN A, B, Q, OR P FOR WHICH ANOTHER CIIC IS INAPPROPRIATE. (NOTE: THE LOSS, THEFT, UNLAWFUL DISPOSITION, AND/OR RECOVERY OF AN ITEM WITH CIIC 7 WILL BE INVESTIGATED IN ACCORDANCE WITH DOD-4000-25-2-M AND DOD 7200.14-R, VOLUME 12, CHAPTER 7). |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 063520 | WAVEGUIDE IN BOXES/CRATES |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 723 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
