NSN 5985-00-875-0875 DTG761572, DTG761-572, 10067538

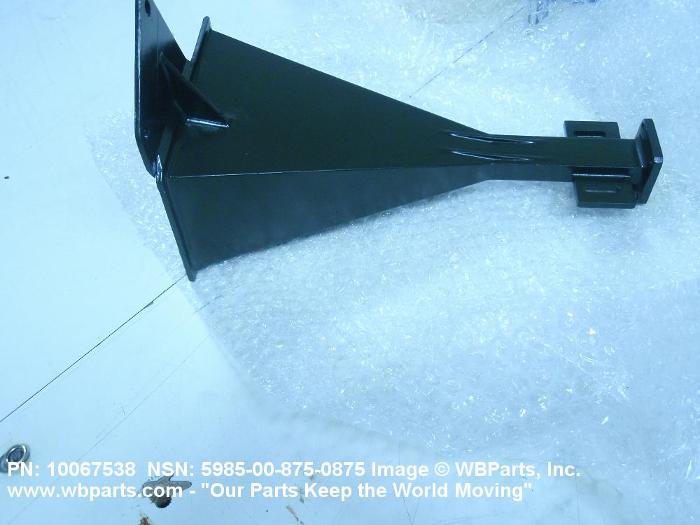

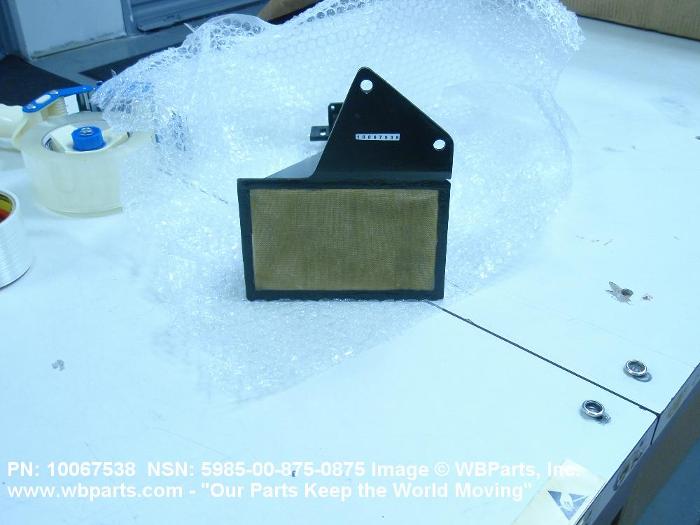

Product Details | WAVEGUIDE HORN
5985-00-875-0875 A hollow conductor of varying cross-sectional area specifically designed to achieve directional characteristics in radio frequency radiating and receiving systems.
Part Alternates: DTG761572, DTG761-572, 10067538, 5985-00-875-0875, 00-875-0875, 5985008750875, 008750875
Electrical and Electronic Equipment Components | Antennas, Waveguides, and Related Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1962 | 00-875-0875 | 00190 ( HORN, WAVEGUIDE ) |
Drawings & Photos | NSN 5985-00-875-0875
Demand History | NSN 5985-00-875-0875
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5985-00-875-0875 | 2015-04-120 | 2 | DIBBS |
| 5985-00-875-0875 | 2015-04-120 | 1 | DIBBS |
| 5985-00-875-0875 | 2014-12-339 | 2 | DIBBS |
| 5985-00-875-0875 | 2014-02-49 | 9 | DIBBS |
| 5985-00-875-0875 | 2013-03-63 | 6 | DIBBS |
| 10067538 | 2008-09-246 | 1 | France |
| 5985-00-875-0875 | 2006-07-202 | 4 | DIBBS |
Cross Reference | NSN 5985-00-875-0875
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10067538 | 00416 | VICTOR MICROWAVE, INC. |
| 10067538 | 05030 | RAYTHEON CO MISSILE SYSTEMS DIV |
| 10067538 | 09992 | ARRA INC |
| 10067538 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
| 10067538 | 3B150 | RAYTHEON TECHNICAL SERVICES COMPANY LLC |
| 10067538 | 49956 | RAYTHEON COMPANY DBA RAYTHEON |
| DTG761-572 | 05716 | RAYTHEON COMPANY DBA RAYTHEON |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5985-00-875-0875
Related Products | NSN 5985-00-875-0875
Technical Data | NSN 5985-00-875-0875
| Characteristic | Specifications |
|---|---|
| FREQUENCY RANGE RATING | NOT RATED |
| ACCOMMODATED CONDUCTOR TYPE | WAVEGUIDE |
| CONNECTION METHOD | INSERT |
| MATERIAL | ALUMINUM, CAST |
| OVERALL LENGTH | 11.687 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5985-00-875-0875
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | D | Munitions List Item or Commerce Control List Item. Demilitarization required. Total destruction of the item and components so as to preclude restoration or repair to a usable condition by melting, cutting, tearing, scratching, crushing, breaking, punching, neutralizing, etc. (As an alternate, burial or deep water dumping may be used when coordinated with the DoD Demilitarization Program Office.) |
| Controlled Inventory Item Code: | 7 | NON-SENSITIVE (SRC-N/A) - UNCLASSIFIED AA&E: OR ITEMS ASSIGNED A DEMILITARIZATION CODE OTHER THAN A, B, Q, OR P FOR WHICH ANOTHER CIIC IS INAPPROPRIATE. (NOTE: THE LOSS, THEFT, UNLAWFUL DISPOSITION, AND/OR RECOVERY OF AN ITEM WITH CIIC 7 WILL BE INVESTIGATED IN ACCORDANCE WITH DOD-4000-25-2-M AND DOD 7200.14-R, VOLUME 12, CHAPTER 7). |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 063520 | WAVEGUIDE IN BOXES/CRATES |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
