Product Details | FIXED ATTENUATOR
5985-00-860-0841 A device for reducing the strength of an alternating current signal by a fixed or predetermined amount, without causing appreciable signal distortion, by maintaining correct impedance match.
Part Alternates: 4400B1278, 5985-00-860-0841, 00-860-0841, 5985008600841, 008600841
Electrical and Electronic Equipment Components | Antennas, Waveguides, and Related Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1960 | 00-860-0841 | 14224 ( ATTENUATOR, FIXED ) |
Drawings & Photos | NSN 5985-00-860-0841
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5985-00-860-0841
Related Products | NSN 5985-00-860-0841
Technical Data | NSN 5985-00-860-0841
| Characteristic | Specifications |
|---|---|

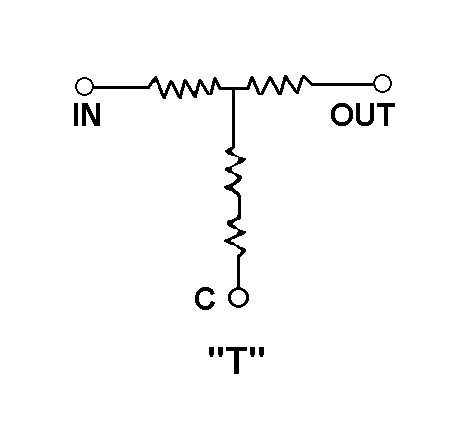

| SCHEMATIC DIAGRAM DESIGNATOR | 8A T |
| INPUT IMPEDANCE RATING IN OHMS | 75.0 |
| OUTPUT IMPEDANCE RATING IN OHMS | 75.0 |
| FREQUENCY RANGE | 10.000 MEGAHERTZ MINIMUM AND 20.000 MEGAHERTZ MAXIMUM |
| VOLTAGE STANDING WAVE RATIO | NOT RATED |
| RF SIGNAL ATTENUATION IN DECIBELS | 20.0 |
| ATTENUATION ACCURACY IN DECIBELS | -0.50 TO 0.50 |
| FREQUENCY SENSITIVITY ATTENUATION IN DECIBELS | NOT RATED |
| POWER RATING | 500.0 MILLIWATTS AVERAGE |
| TEMPERATURE SENSITIVITY ATTENUATION IN DECIBELS | NOT RATED |
| OVERALL LENGTH | 2.375 INCHES NOMINAL |
| OVERALL DIAMETER | 0.500 INCHES NOMINAL |
| TERMINAL TYPE AND QUANTITY | 2 CONNECTOR |
| MOUNTING METHOD | TERMINAL |
| MANUFACTURERS CODE | 94117 |
| DESIGN CONTROL REFERENCE | 4400B1278 |
