NSN 5985-00-845-4818 RAM465P, 10043766, 00-845-4818
Product Details | WAVEGUIDE SWITCH
5985-00-845-4818 An item specifically designed for mechanically or electronically positioning one or more waveguide sections so as to couple it or them to other sections in a waveguide system. The switching function may be operated by a manual actuator, an electromechanical actuator or by means of an arrangement of semiconductors and passive circuit devices. Excludes RELAY, (as modified).
Part Alternates: RAM465P, 10043766, 5985-00-845-4818, 00-845-4818, 5985008454818, 008454818
Electrical and Electronic Equipment Components | Antennas, Waveguides, and Related Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1962 | 00-845-4818 | 05118 ( SWITCH, WAVEGUIDE ) |
Drawings & Photos | NSN 5985-00-845-4818
Demand History | NSN 5985-00-845-4818
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5985-00-845-4818 | 2010-04-120 | 6 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5985-00-845-4818
Related Products | NSN 5985-00-845-4818
Technical Data | NSN 5985-00-845-4818
| Characteristic | Specifications |
|---|---|
| RF POWER HANDLING CAPABILITY | 160.0 WATTS AVERAGE SINGLE |
| INSERTION LOSS IN DECIBELS | 0.20 SINGLE |
| MINIMUM CROSSTALK RATING IN DECIBELS | 60.0 SINGLE |
| ACTUATOR OPERATING METHOD | RELAY |
| ACTUATOR VOLTAGE IN VOLTS | 28.0 NOMINAL |
| SWITCH TYPE | TRANSFER |
| COUPLING POSITION QUANTITY | 3 |
| SWITCHING TIME | 50.0 MILLISECONDS |

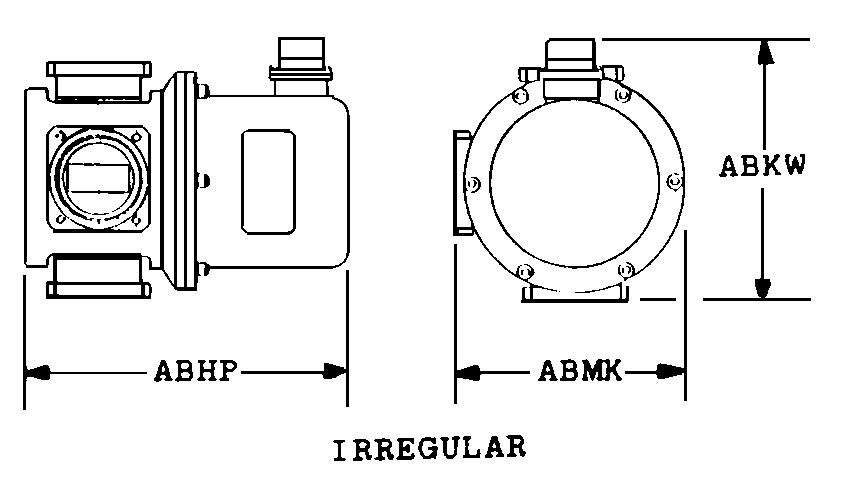

| BODY STYLE | 2C IRREGULAR |
| OVERALL LENGTH | 4.563 INCHES NOMINAL |
| OVERALL HEIGHT | 4.063 INCHES NOMINAL |
| III OPERATING TEMP RANGE | -40.0 TO 85.0 DEG CELSIUS |
| III END ITEM IDENTIFICATION | RADAR SET AN/MPQ-37 |
| MANUFACTURERS CODE | 18876 |
| MFR SOURCE CONTROLLING REFERENCE | 10043766 |
