NSN 5985-00-808-0796 HPX382A, 00-808-0796, 008080796
Product Details | VARIABLE ATTENUATOR
5985-00-808-0796 A device for reducing the strength of an alternating current signal either continuously or in steps, without causing appreciable signal distortion, by maintaining substantially constant output and/or input impedance match. Continuously variable resistive devices must consist of at least two sections or one section with at least two rotating contacts. The item must have an overall attenuation rating. Includes tandem mounted variable resistors designed to function as an attenuator but whose terminals are not connected. See also RESISTOR, VAIABLE (as modified).
Part Alternates: HPX382A, 5985-00-808-0796, 00-808-0796, 5985008080796, 008080796
Electrical and Electronic Equipment Components | Antennas, Waveguides, and Related Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 03 AUG 2000 | 00-808-0796 | 00838 ( ATTENUATOR, VARIABLE ) |
Drawings & Photos | NSN 5985-00-808-0796
Cross Reference | NSN 5985-00-808-0796
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| HPX382A | 28480 | HEWLETT-PACKARD COMPANY DBA HEWLETT-PACKARD CO. OR HP |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5985-00-808-0796
Technical Data | NSN 5985-00-808-0796
| Characteristic | Specifications |
|---|---|
| APPLICATION DESIGN | WAVEGUIDE |
| FREQUENCY RANGE | 8.200 GIGAHERTZ MINIMUM AND 12.400 GIGAHERTZ MAXIMUM |
| VOLTAGE STANDING WAVE RATIO | 1.15 |
| POWER RATING | 10.0 WATTS AVERAGE |
| INSERTION LOSS AT MINIMUM ATTENUATION IN MAXIMUM DECIBELS | 1.0 |
| OVERALL ATTENUATION RANGE IN DECIBELS | 0.0 TO 50.0 |
| OVERALL ATTENUATION ACCURACY IN DECIBELS | -1.00 TO 1.00 |
| ATTENUATION VARIATION METHOD | CONTINUOUS |

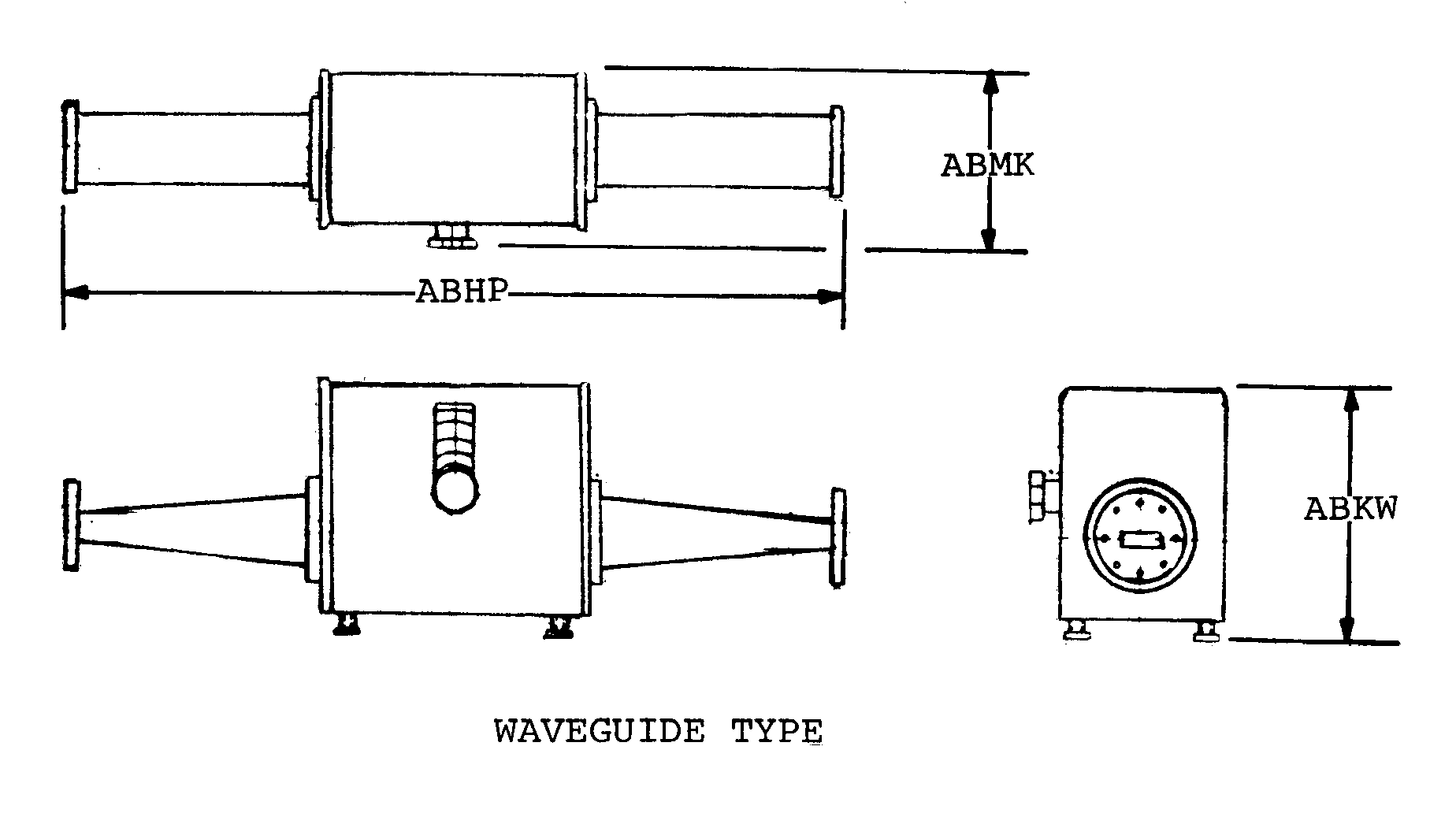

| BODY STYLE | 5A WAVEGUIDE TYPE |
| OVERALL LENGTH | 15.625 INCHES NOMINAL |
| OVERALL HEIGHT | 7.625 INCHES NOMINAL |
| OVERALL WIDTH | 4.688 INCHES NOMINAL |
| ADJUSTMENT DEVICE TYPE AND QUANTITY | 2 KNOB |
| TERMINAL TYPE AND QUANTITY | 2 FLANGE |
| WAVEGUIDE FLANGE DESIGNATION | WR90 |
| MOUNTING FACILITY TYPE AND QUANTITY | 4 TERMINAL W/MOUNTING HOLES |
| MOUNTING FACILITY PATTERN | FOUR POSITION RECTANGULAR |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.169 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH | 1.280 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO WIDTH | 1.220 INCHES NOMINAL |
| III WAVEGUIDE FLANGE TYPE | CONTACT |
| III FSC APPLICATION DATA | TEST EQUIPMENT,ACFT MAINTENANCE AND REPAIR |
