Product Details | FIXED ATTENUATOR
5985-00-791-7342 A device for reducing the strength of an alternating current signal by a fixed or predetermined amount, without causing appreciable signal distortion, by maintaining correct impedance match.
Part Alternates: 379-0376-00, 600Z51, 5985-00-791-7342, 00-791-7342, 5985007917342, 379037600, 007917342
Electrical and Electronic Equipment Components | Antennas, Waveguides, and Related Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1960 | 00-791-7342 | 14224 ( ATTENUATOR, FIXED ) |
Drawings & Photos | NSN 5985-00-791-7342
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5985-00-791-7342
Related Products | NSN 5985-00-791-7342
Technical Data | NSN 5985-00-791-7342
| Characteristic | Specifications |
|---|---|
| APPLICATION DESIGN | AUDIO |

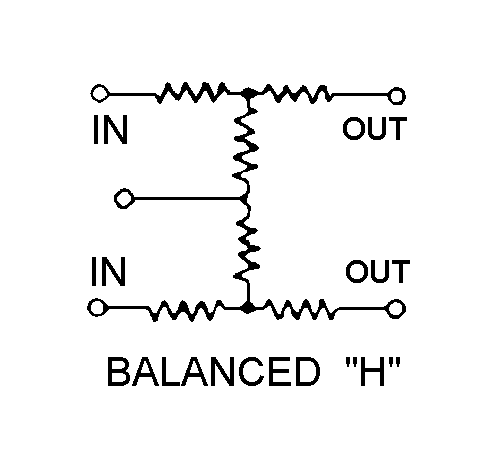

| SCHEMATIC DIAGRAM DESIGNATOR | 15A BALANCED H |
| INPUT IMPEDANCE RATING IN OHMS | 600.0 |
| OUTPUT IMPEDANCE RATING IN OHMS | 600.0 |
| FREQUENCY RANGE | 0.000 HERTZ MINIMUM AND 1.000 KILOHERTZ MAXIMUM |
| VOLTAGE STANDING WAVE RATIO | NOT RATED |
| RF SIGNAL ATTENUATION IN DECIBELS | 6.5 |
| ATTENUATION ACCURACY IN DECIBELS | -0.065 TO 0.065 |
| ATTENUATION ACCURACY REFERENCE FREQUENCY | 1.0 KILOHERTZ |
| FREQUENCY SENSITIVITY ATTENUATION IN DECIBELS | NOT RATED |
| POWER RATING | 250.0 MILLIWATTS AVERAGE |
| OPERATING TEMP RANGE | -40.0 TO 85.0 DEG CELSIUS |
| TEMPERATURE SENSITIVITY ATTENUATION IN DECIBELS | NOT RATED |

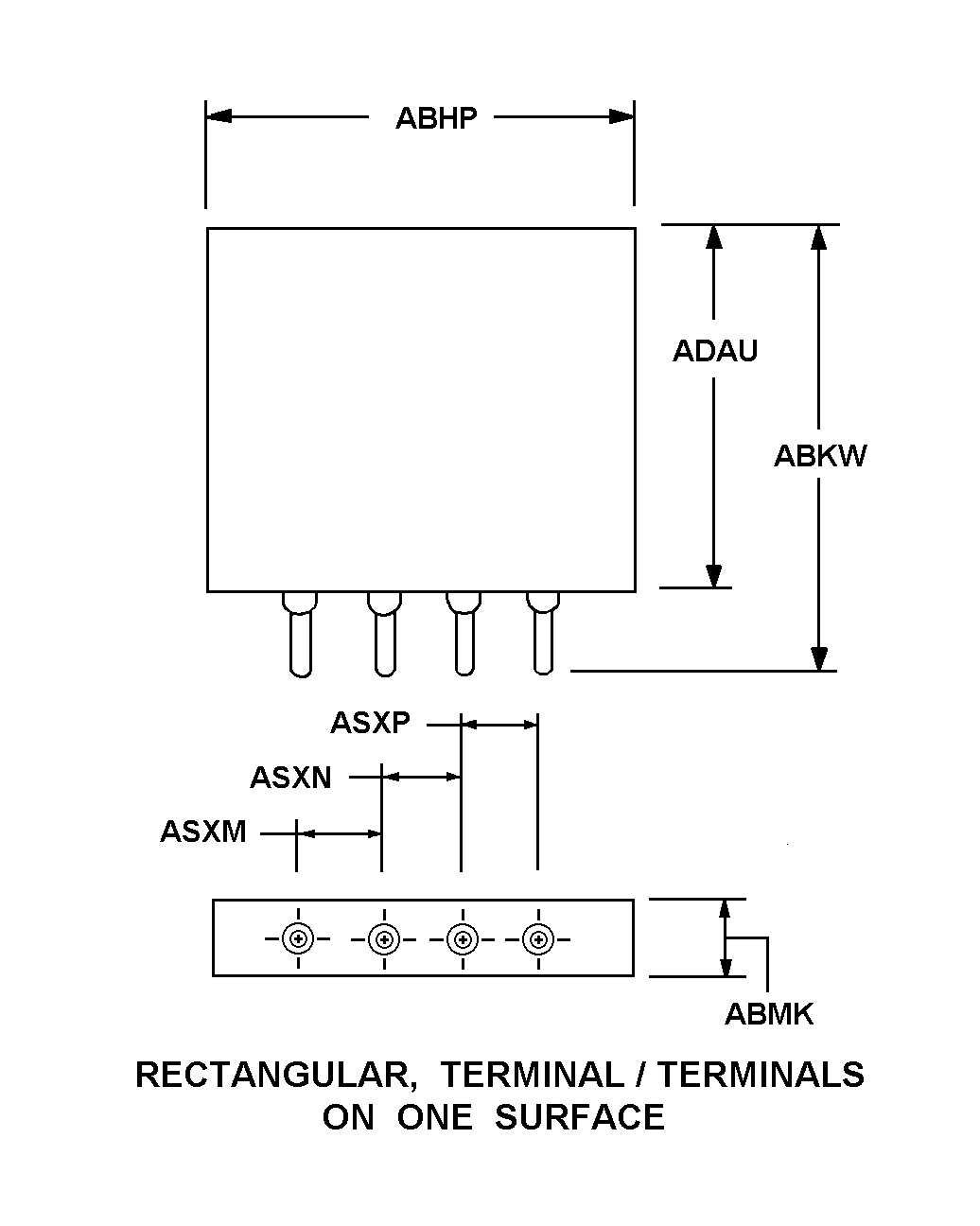

| BODY STYLE | 8B RECTANGULAR, TERMINAL/TERMINALS ON ONE SURFACE |
| OVERALL LENGTH | 0.969 INCHES MINIMUM AND 1.031 INCHES MAXIMUM |
| OVERALL HEIGHT | 0.594 INCHES NOMINAL |
| OVERALL WIDTH | 0.594 INCHES MINIMUM AND 0.656 INCHES MAXIMUM |
| BODY HEIGHT | 0.469 INCHES MINIMUM AND 0.531 INCHES MAXIMUM |
| CENTER TO CENTER DISTANCE BETWEEN FIRST AND SECOND TERMINALS | 0.250 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN SECOND AND THIRD TERMINALS | 0.500 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN THIRD AND FOURTH TERMINALS | 0.750 INCHES NOMINAL |
| BODY MATERIAL | PLASTIC, EPOXY RESIN |
| TERMINAL TYPE AND QUANTITY | 4 BANANA PLUG |
| MOUNTING METHOD | TERMINAL |
| III TERMINAL MATERIAL | COPPER |
| III TERMINAL SURFACE TREATMENT | SILVER PLATED |
| III PRECIOUS MATERIAL | SILVER |
| III PRECIOUS MATERIAL AND LOCATION | TERMINAL SURFACES SILVER |
