NSN 5985-00-731-1856 2105198, CR26, 00-731-1856
Product Details | RADIO FREQUENCY TRANSMISSION LINE SWITCH
5985-00-731-1856 An item specifically designed for mechanically or electronically positioning one or more radio frequency transmission line sections so as to couple it or them to other sections in a radio frequency transmission line system. The switching function may be operated by a manual actuator, an electromechanical actuator or by means of an arrangement of semiconductors and passive circuit devices. Excludes RELAY, (as modified).202593000005985000000
Part Alternates: 2105198, CR26, 5985-00-731-1856, 00-731-1856, 5985007311856, 007311856
Electrical and Electronic Equipment Components | Antennas, Waveguides, and Related Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-731-1856 | 05298 ( SWITCH, RADIO FREQUENCY TRANSMISSION LINE ) |
Drawings & Photos | NSN 5985-00-731-1856
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5985-00-731-1856
Technical Data | NSN 5985-00-731-1856
| Characteristic | Specifications |
|---|---|
| RF POWER HANDLING CAPABILITY | 100.0 WATTS AVERAGE SINGLE |
| ACTUATOR OPERATING METHOD | RELAY |
| SWITCH TYPE | NONTRANSFER |
| POLE QUANTITY | 1 |
| THROW QUANTITY | 2 |
| COUPLING POSITION QUANTITY | 3 |
| TERMINAL TYPE AND QUANTITY | 3 RECEPTACLE, COAXIAL |
| COAXIAL CONNECTOR SERIES DESIGNATION | BNC |
| SWITCH RETURN MECHANISM TYPE | FAIL-SAFE |

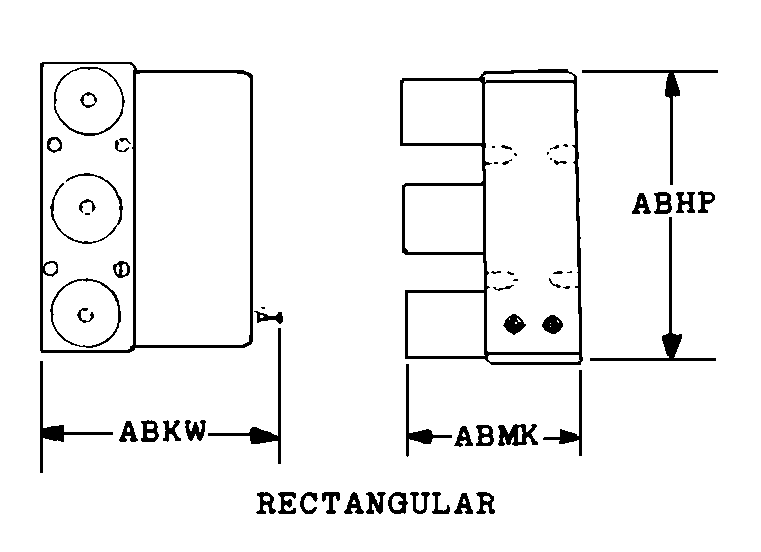

| BODY STYLE | 73B RECTANGULAR |
| OVERALL LENGTH | 2.000 INCHES MAXIMUM |
| OVERALL HEIGHT | 2.500 INCHES MAXIMUM |
| OVERALL WIDTH | 1.250 INCHES MAXIMUM |
| MOUNTING FACILITY TYPE AND QUANTITY | 4 THREADED HOLE |
