NSN 5985-00-728-5539 HFAN5020, HFAN50-20, 00-728-5539
Product Details | FIXED ATTENUATOR
5985-00-728-5539 A device for reducing the strength of an alternating current signal by a fixed or predetermined amount, without causing appreciable signal distortion, by maintaining correct impedance match.
Part Alternates: HFAN5020, HFAN50-20, 5985-00-728-5539, 00-728-5539, 5985007285539, 007285539
Electrical and Electronic Equipment Components | Antennas, Waveguides, and Related Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1961 | 00-728-5539 | 14224 ( ATTENUATOR, FIXED ) |
Drawings & Photos | NSN 5985-00-728-5539
Cross Reference | NSN 5985-00-728-5539
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| HFAN50-20 | 05627 | APPLIED RESEARCH INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5985-00-728-5539
Related Products | NSN 5985-00-728-5539
Technical Data | NSN 5985-00-728-5539
| Characteristic | Specifications |
|---|---|
| APPLICATION DESIGN | AUDIO |

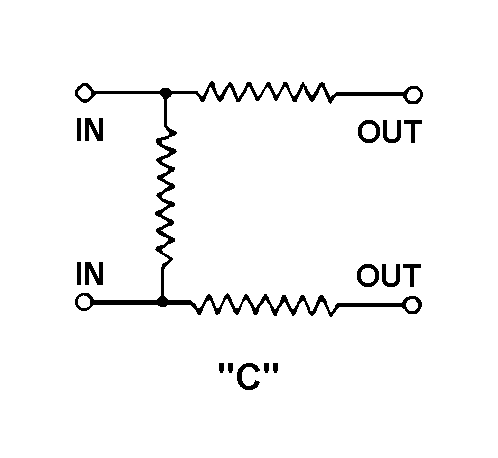

| SCHEMATIC DIAGRAM DESIGNATOR | 1A C |
| INPUT IMPEDANCE RATING IN OHMS | 52.5 |
| OUTPUT IMPEDANCE RATING IN OHMS | 52.5 |
| FREQUENCY RANGE | 0.000 HERTZ MINIMUM AND 2.500 GIGAHERTZ MAXIMUM |
| VOLTAGE STANDING WAVE RATIO | NOT RATED |
| RF SIGNAL ATTENUATION IN DECIBELS | 20.0 |
| ATTENUATION ACCURACY IN DECIBELS | -0.50 TO 0.50 |
| FREQUENCY SENSITIVITY ATTENUATION IN DECIBELS | NOT RATED |
| POWER RATING | 500.0 MILLIWATTS AVERAGE |
| OPERATING TEMP RANGE | ANY ACCEPTABLE |
| TEMPERATURE SENSITIVITY ATTENUATION IN DECIBELS | ANY ACCEPTABLE |
| BODY STYLE | 1B ROUND, TERMINAL/TERMINALS ON OPPOSITE SURFACES |
| OVERALL LENGTH | 3.187 INCHES NOMINAL |
| OVERALL DIAMETER | 0.812 INCHES NOMINAL |
| BODY MATERIAL | ALUMINUM |
| BODY SURFACE TREATMENT | ANODIZED |
| MOUNTING METHOD | TERMINAL |
